Jampad
About the Jampad PCB
Jampad is an open source PCB design by Menta013, published on GitHub. It is a 2-layer board measuring 76.2 × 99.5 mm, with 22 components from 6 distinct parts.
Other key parts include the MOUDLE-SEEEDUINO-XIAO and ER_OLEDM0.91_1x-I2C. By type, the board carries 10 switches, 10 diodes and 2 ICs.
It belongs with the keyboards and displays & leds designs in this gallery.
From the project
3x3 XIAO RP2040 macropad with OLED and rotary encoder

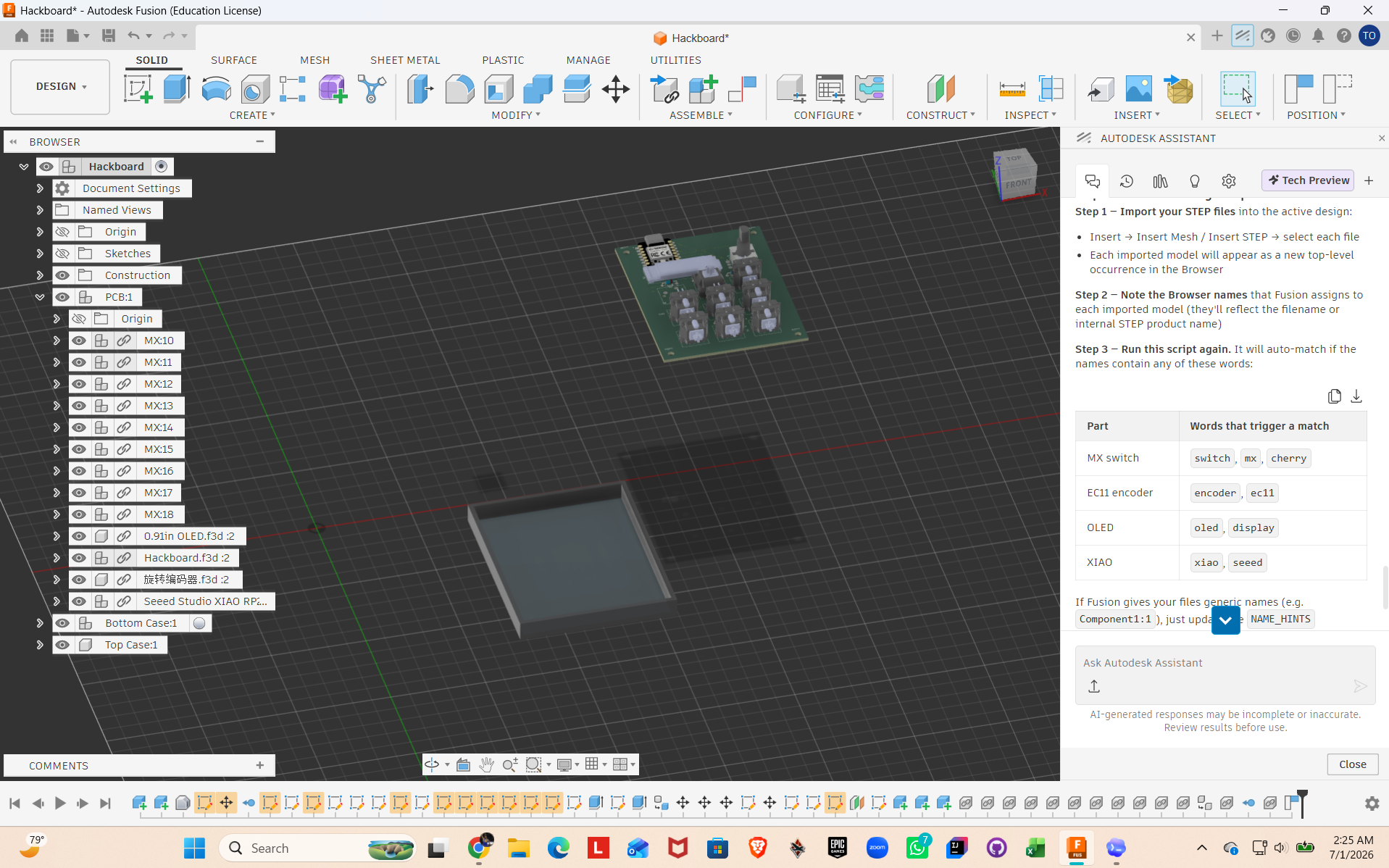

Jampad is a compact 3×3 mechanical macropad built around a through-hole Seeed Studio XIAO RP2040. It includes an EC11 rotary encoder, a 0.91-inch 128×32 OLED, and a single SK6812 MINI-E status LED in a two-piece 3D-printed enclosure.
- Counter-clockwise: volume down - Clockwise: volume up - Press: unavailable because the encoder's S1 and S2 switch contacts are not connected in this PCB revision
Main components on the Jampad
Jampad bill of materials (BOM)
22 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MOUDLE-SEEEDUINO-XIAO | XIAO-Generic-Hybrid-14P-2.54-21X17.8MM | U1 |
| 1 | ER_OLEDM0.91_1x-I2C | ER_OLEDM0.91_1x-I2C | U2 |
| 9 | SW_Push | SW_Cherry_MX_1.00u_PCB | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +1 |
| 1 | RotaryEncoder_Switch | RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm | SW10 |
| 1 | SK6812MINI-E | SK6812MINI-E_fixed | D1 |
| 9 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D2, D3, D4, D5, D6, D7, D8, D9 +1 |
Jampad design files
The KiCad project lives in the Menta013/Jampad repository on GitHub; these links point at the commit this page was built from.
Jampad: common questions
How big is the Jampad PCB?
The Jampad measures 76.2 × 99.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Jampad?
22 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Jampad design files?
From the Menta013/Jampad repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Jampad design in my own project?
The repository has no license, so all rights stay with Menta013. Use it as a reference, and ask the author before reusing the design.
