About the SpeakerAdapter PCB

SpeakerAdapter is an open source PCB design by mignon-p, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 14 × 15.5 mm, with 2 components from 2 distinct parts.

It belongs with the audio designs in this gallery.

From the project

Puts a JST-PH connector on the "Music Maker FeatherWing with Amp" instead of terminal blocks.

This is a small adapter board (created with [KiCad][1] 5) which lets you connect [these speakers][2] to the [Music Maker FeatherWing with Amp][3] without having to cut the JST-PH connector off of the speakers. This tiny board solders onto the Music Maker FeatherWing, giving it a JST-PH connector, instead of terminal blocks.

[Order board from OSH Park][5] ($1.70 for three copies of the board, with free shipping)

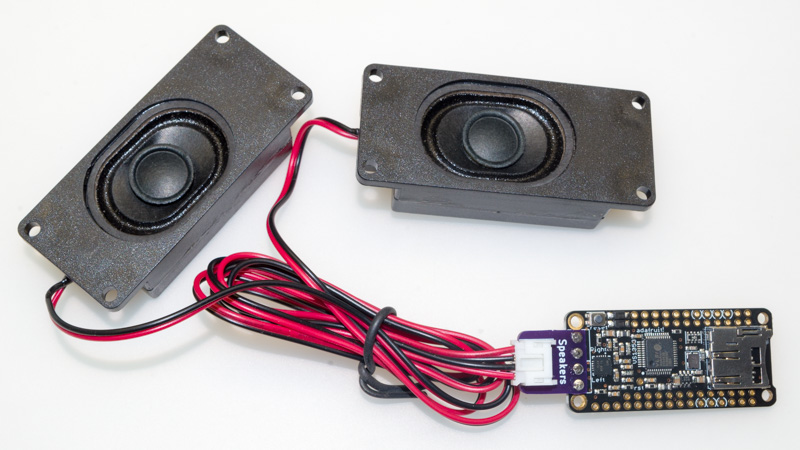

SpeakerAdapter, from the project README
From the project README

SpeakerAdapter bill of materials (BOM)

2 components, 2 distinct parts.

QtyPartRefs
1
Terminal Block
J1
1
JST-PH
J2

SpeakerAdapter design files

The KiCad project lives in the mignon-p/SpeakerAdapter repository on GitHub; these links point at the commit this page was built from.

SpeakerAdapter: common questions

How big is the SpeakerAdapter PCB?

The SpeakerAdapter measures 14 × 15.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SpeakerAdapter?

2 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the SpeakerAdapter design files?

From the mignon-p/SpeakerAdapter repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the SpeakerAdapter design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which mignon-p chose for the repository.
