About the LYME101 PCB

LYME101 is an open source PCB design by milar111, published on GitHub under the MIT license. It is a board, with 11 components from 9 distinct parts.

Other key parts include the LM318N. By type, the board carries 4 capacitors, 2 battery holders, 2 resistors, 1 IC, 1 connector and 1 diode.

It belongs with the audio designs in this gallery.

From the project

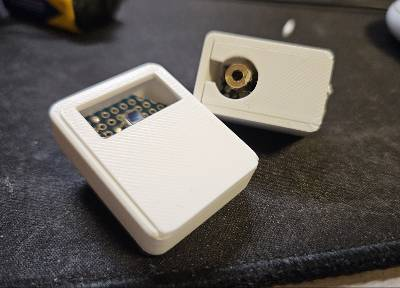

Sending video over light by modulating an analog RCA signal through a visible laser beam.

LYME is a fully custom, free-space optical (FSO) link that transmits a real-time analog video signal across open air on a modulated laser beam. Instead of sending digital bits, the laser's brightness is amplitude-modulated to follow a standard Composite Video (CVBS) waveform, proving that basic analog hardware — a single transistor on the transmit side and one op-amp on the receive side — can carry the ~5 MHz of bandwidth that live video demands.

Main components on the LYME101

LM318N

LYME101 bill of materials (BOM)

11 components, 9 distinct parts.

QtyPartRefs
1
LM318N
U1
1
RCA
J3
2
9V
BT1, BT2
1
BPW34
D2
2
100nF
C1, C3
1
8.2pF
C4
1
100uF
C5
1
2.2k
R2
1
75
R3

LYME101 design files

The KiCad project lives in the milar111/LYME101 repository on GitHub; these links point at the commit this page was built from.

LYME101: common questions

How many components are on the LYME101?

11 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the LYME101 design files?

From the milar111/LYME101 repository on GitHub, which has the schematic; the links under Design files point to each one.

Can I use the LYME101 design in my own project?

Yes, under the terms of its MIT license, which milar111 chose for the repository.
