Keyboard PCB layout, top view — open source RP2040/RP2350 board by milesmuehlbach

About the Keyboard PCB

Keyboard is an open source RP2040/RP2350 PCB design by milesmuehlbach, published on GitHub. It is a 2-layer board measuring 381 × 104.8 mm, with 142 components from 8 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. By type, the board carries 73 switches, 68 diodes and 1 module.

It belongs with the keyboards designs in this gallery.

From the project

my keyboard

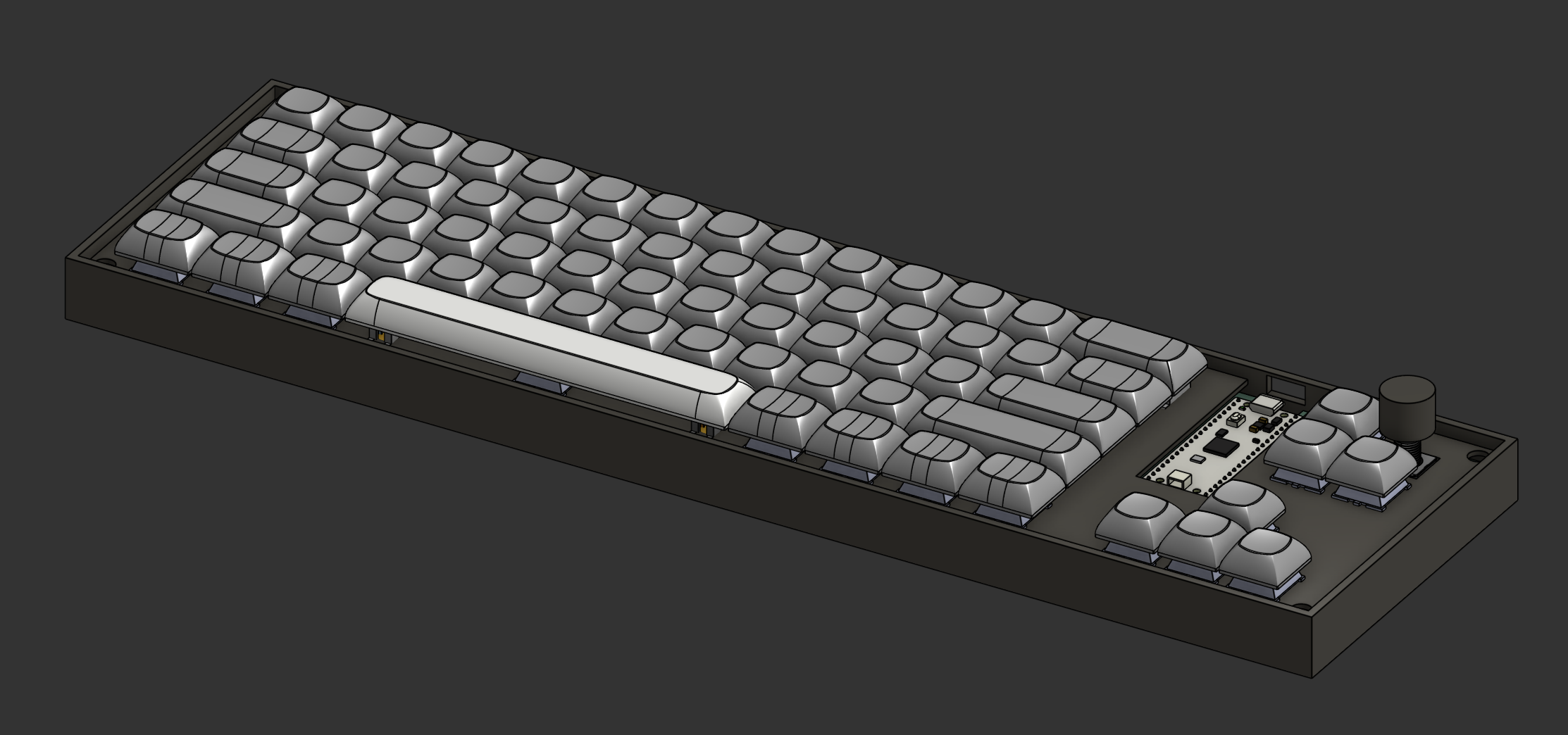

Keyboard, from the project README
From the project README

Main components on the Keyboard

RaspberryPi_Pico

Keyboard bill of materials (BOM)

142 components, 8 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RaspberryPi_Pico
A1
4
MX_stab
S1, S2, S3, S4
1
MX_stab
S5
58
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +50
2
SW_Push
SW15, SW28
1
SW_Push
SW29
7
SW_Push
SW54, SW55, SW56, SW58, SW59, SW60, SW61
68
1N4148
D1, D2, D3, D4, D5, D6, D7, D8 +60

Keyboard design files

The KiCad project lives in the milesmuehlbach/keyboard repository on GitHub; these links point at the commit this page was built from.

Keyboard: common questions

What microcontroller does the Keyboard use?

The Keyboard is built around the RaspberryPi_Pico, from the RP2040/RP2350 family.

How big is the Keyboard PCB?

The Keyboard measures 381 × 104.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Keyboard?

142 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Keyboard design files?

From the milesmuehlbach/keyboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Keyboard design in my own project?

The repository has no license, so all rights stay with milesmuehlbach. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Keyboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
