Single-Sided-5V-Power-Supply

Mimo-Mir·Single-Sided-5V-Power-Supply

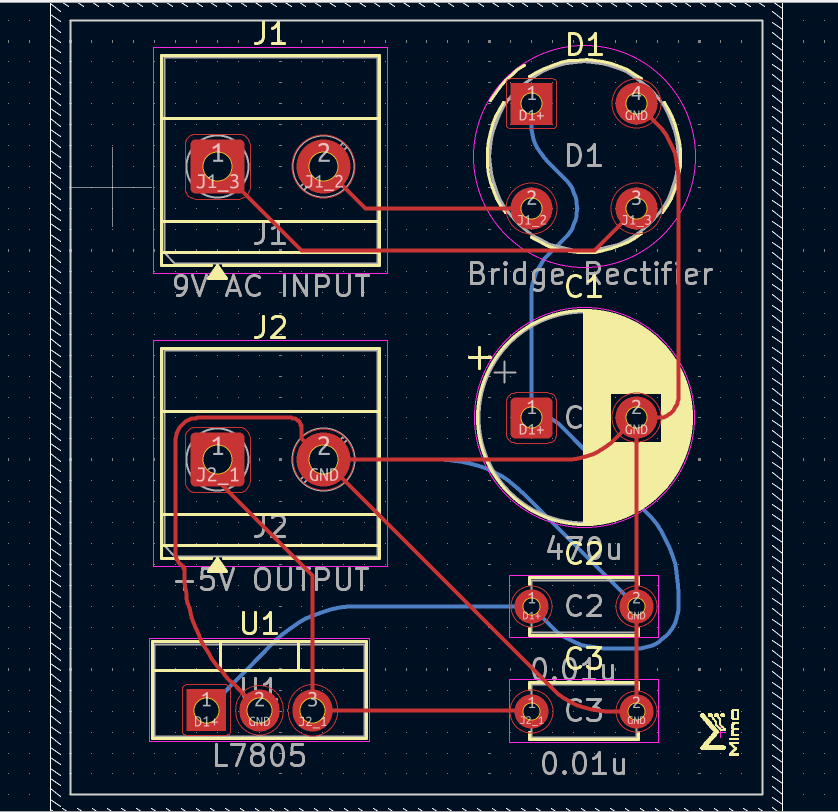

Single-Sided-5V-Power-Supply PCB layout, top view — open source board by Mimo-Mir

About the Single-Sided-5V-Power-Supply PCB

Single-Sided-5V-Power-Supply is an open source PCB design by Mimo-Mir, published on GitHub under the MIT license. It is a 2-layer board measuring 33 × 37 mm, with 7 components from 6 distinct parts.

Other key parts include the L7805. By type, the board carries 3 capacitors, 2 connectors, 1 IC and 1 diode.

It belongs with the power & battery designs in this gallery.

From the project

PCB design project using KiCad 9: single-sided 5V regulated power supply with LM7805, full design workflow from schematic to Gerber files.

A compact single-sided 5V regulated linear power supply designed using KiCad 9 and built around the LM7805 voltage regulator.

This project was developed as part of my PCB design learning journey to gain hands-on experience with the complete hardware development workflow—from schematic capture and PCB layout to electrical verification, 3D visualization, Gerber generation, and project documentation.

Single-Sided-5V-Power-Supply, from the project README
From the project README

Main components on the Single-Sided-5V-Power-Supply

L7805

Single-Sided-5V-Power-Supply bill of materials (BOM)

7 components, 6 distinct parts.

QtyPartRefs
1
L7805
U1
1
9V AC INPUT
J1
1
+5V OUTPUT
J2
1
Bridge Rectifier
D1
1
470u
C1
2
0.01u
C2, C3

Single-Sided-5V-Power-Supply design files

The KiCad project lives in the Mimo-Mir/Single-Sided-5V-Power-Supply repository on GitHub; these links point at the commit this page was built from.

Single-Sided-5V-Power-Supply: common questions

How big is the Single-Sided-5V-Power-Supply PCB?

The Single-Sided-5V-Power-Supply measures 33 × 37 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Single-Sided-5V-Power-Supply?

7 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Single-Sided-5V-Power-Supply design files?

From the Mimo-Mir/Single-Sided-5V-Power-Supply repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Single-Sided-5V-Power-Supply design in my own project?

Yes, under the terms of its MIT license, which Mimo-Mir chose for the repository.
