Electronics projects PCB layout, top view — open source AVR/Arduino board by mirmisbahali

About the Electronics projects PCB

Electronics projects is an open source AVR/Arduino PCB design by mirmisbahali, published on GitHub. It is a 2-layer board measuring 85 × 43.1 mm, with 124 components from 5 distinct parts.

Its main chip is the Arduino_Nano_Every, from the AVR/Arduino family. By type, the board carries 110 diodes, 11 resistors, 2 connectors and 1 module.

It belongs with the displays & leds designs in this gallery.

From the project

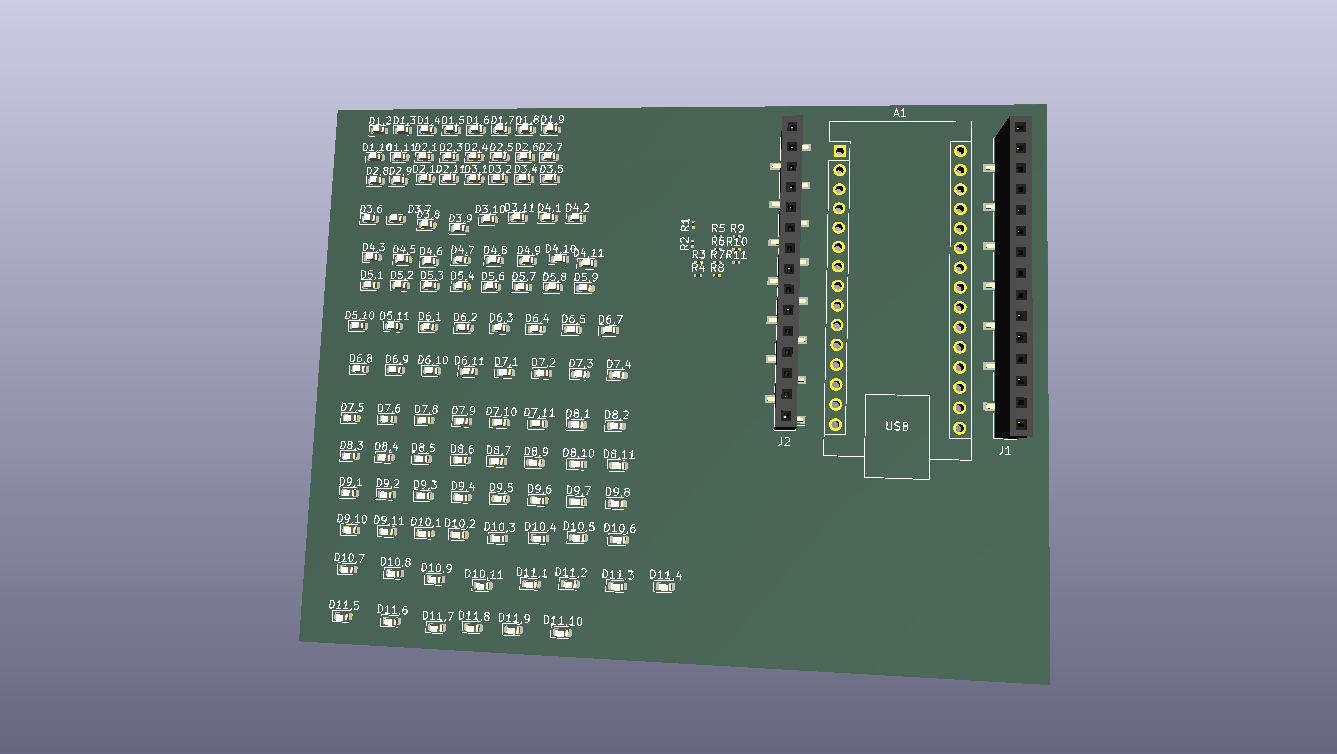

A compact LED matrix prototyping board driven by an Arduino Nano using charlieplexing to control a large number of LEDs with minimal I/O pins.

Electronics projects, from the project README
From the project README

Main components on the Electronics projects

Arduino_Nano_Every

Electronics projects bill of materials (BOM)

124 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Arduino_Nano_Every
A1
1
Left_header
J1
1
Right_header
J2
110
LED
D1, D2, D3, D4, D5, D6, D7, D8 +102
11
330
R1, R2, R3, R4, R5, R6, R7, R8 +3

Electronics projects design files

The KiCad project lives in the mirmisbahali/electronics_projects repository on GitHub; these links point at the commit this page was built from.

Electronics projects: common questions

What microcontroller does the Electronics projects use?

The Electronics projects is built around the Arduino_Nano_Every, from the AVR/Arduino family.

How big is the Electronics projects PCB?

The Electronics projects measures 85 × 43.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Electronics projects?

124 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Electronics projects design files?

From the mirmisbahali/electronics_projects repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Electronics projects design in my own project?

The repository has no license, so all rights stay with mirmisbahali. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Electronics projects without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
