EVAL-MP8862
About the EVAL-MP8862 PCB
EVAL-MP8862 is an open source PCB design by MisterHW, published on GitHub. It is a 4-layer board measuring 25 × 13 mm, with 20 components from 11 distinct parts.
Other key parts include the MP8862GQ-0000-Z. By type, the board carries 13 capacitors, 3 resistors, 1 IC, 1 connector, 1 jumper and 1 inductor.
It belongs with the power & battery and dev boards & breakouts designs in this gallery.

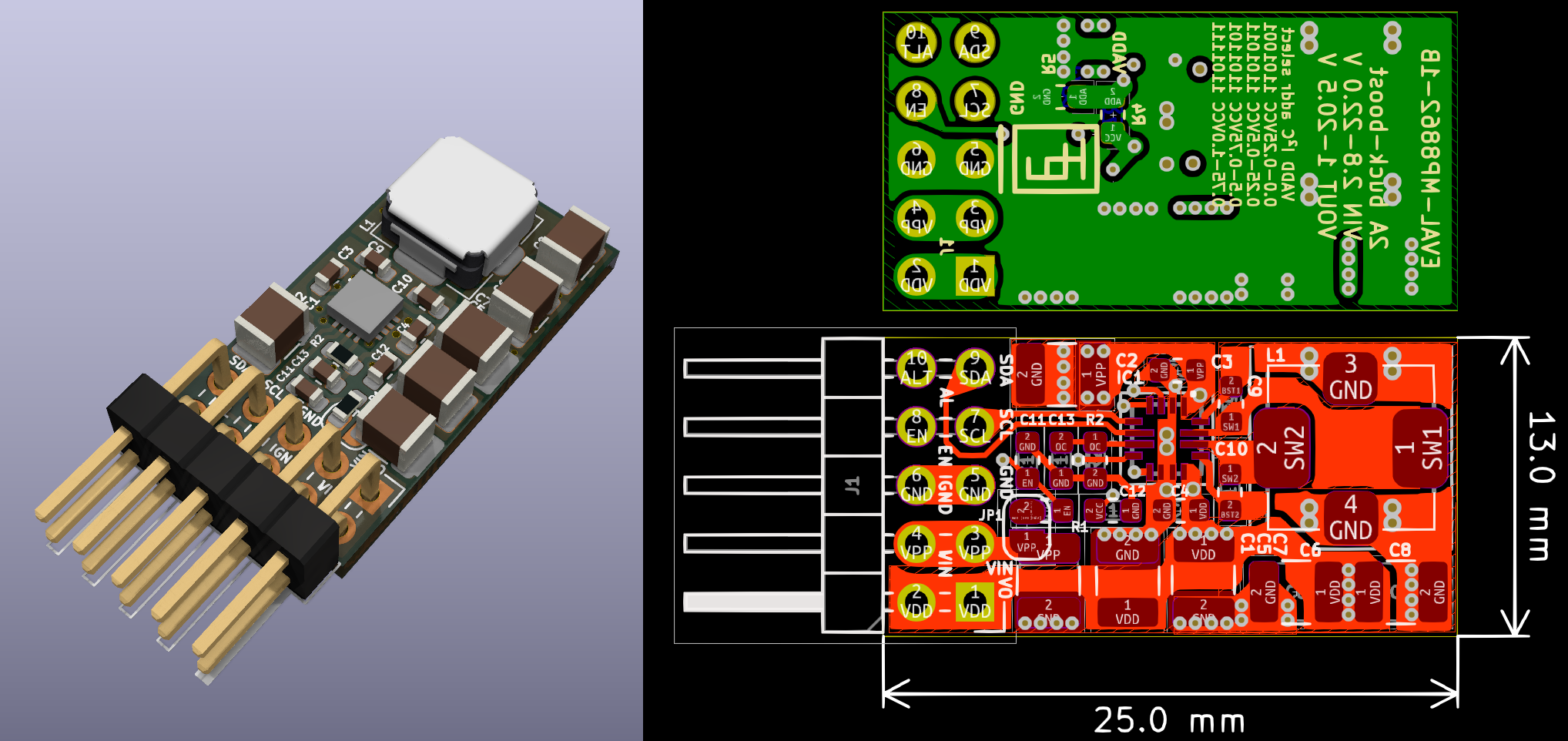

From the project
A self-contained MP8862 1..20.5V/2A buck-boost DCDC module for breadboard, evaluation and deployment
EVAL-MP8862 is a compact and self-contained DCDC module for 2.8 .. 22 V in to 1 .. 20.47 V output conversion. It is designed to leverage the features provided by MP8862GQ-0000 to provide digital control over the output voltage (10 mV steps) and current limit (50 mA steps or depending on resistor programming).
In its compact 13x25 mm² form factor with 2.54 mm (0.1") pitch pin header, EVAL-MP8862 can be used for evaluation on the breadboard as well as in application circuits.
Main components on the EVAL-MP8862
EVAL-MP8862 bill of materials (BOM)
20 components, 11 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MP8862GQ-0000-Z MP8862GQ | MP8862GQ | IC1 |
| 1 | 61300511021 | PinHeader_2x05_P2.54mm_Horizontal | J1 |
| 1 | SJ open | SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm | JP1 |
| 1 | IHLE2525CDER4R7M5A | IHLE2525CD | L1 |
| 6 | 22µF/35V | C_1210_3225Metric | C1, C2, C5, C6, C7, C8 |
| 4 | 100nF/50V | C_0603_1608Metric | C3, C4, C9, C10 |
| 2 | 22nF | C_0603_1608Metric | C11, C13 |
| 1 | 1µF/16V | C_0603_1608Metric | C12 |
| 1 | 21.5k | R_0603_1608Metric | R2 |
| 1 | 499k | R_0603_1608Metric | R4 |
| 1 | 301k | R_0603_1608Metric | R5 |
EVAL-MP8862 design files
The KiCad project lives in the MisterHW/EVAL-MP8862 repository on GitHub; these links point at the commit this page was built from.
EVAL-MP8862: common questions
How big is the EVAL-MP8862 PCB?
The EVAL-MP8862 measures 25 × 13 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the EVAL-MP8862?
20 components, from 11 distinct parts. The full bill of materials is listed on this page.
Where can I download the EVAL-MP8862 design files?
From the MisterHW/EVAL-MP8862 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the EVAL-MP8862 design in my own project?
The repository has no license, so all rights stay with MisterHW. Use it as a reference, and ask the author before reusing the design.
