FRAM01
About the FRAM01 PCB

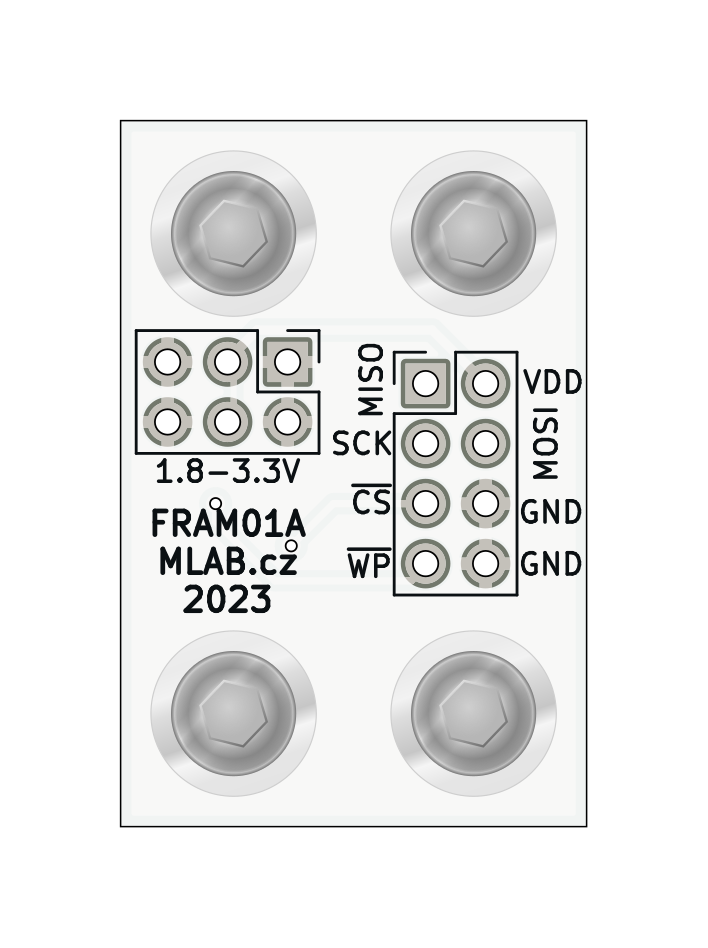

FRAM01 is an open source PCB design by mlab-modules, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 19.8 × 30 mm, with 6 components from 6 distinct parts.
Other key parts include the CY15B108QN-40SXI. By type, the board carries 2 connectors, 2 capacitors, 1 IC and 1 diode.
It belongs with the science & space designs in this gallery.
From the project
8 Mbit FRAM (CY15B108QN) fast data write, low power consumption, and high radiation resistance data storage
The MLAB module with FRAM (Ferroelectric Random Access Memory) CY15B108QNLP8-Mbit(1024KX8)Serial(SPI)F-RAM-DataSheet-v11_00-EN.pdf?fileId=8ac78c8c7d0d8da4017d0ee7134b6ff4) provides a unique combination of features that outperform traditional forms of non-volatile memories such as Flash or EEPROM.
FRAM, also known as Ferroelectric Random Access Memory, offers a range of key advantages that differentiate it and make it suitable for various applications:
Main components on the FRAM01
FRAM01 bill of materials (BOM)
6 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CY15B108QN-40SXI | SOIC127P800X203-8N | IC1 |
| 1 | HEADER_2X03_PARALLEL HEADER_2x03_PARALLEL | PinHeader_2x03_P2.54mm_Vertical | J1 |
| 1 | HEADER_2X04 HEADER_2x04 | PinHeader_2x04_P2.54mm_Vertical | J2 |
| 1 | BZT52H-C3V6,115 | D_SOD-123F | D1 |
| 1 | 10UF 10uF | C_0805_2012Metric | C1 |
| 1 | 100NF 100nF | C_0805_2012Metric | C2 |
FRAM01 design files
The KiCad project lives in the mlab-modules/FRAM01 repository on GitHub; these links point at the commit this page was built from.
FRAM01: common questions
How big is the FRAM01 PCB?
The FRAM01 measures 19.8 × 30 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the FRAM01?
6 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the FRAM01 design files?
From the mlab-modules/FRAM01 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the FRAM01 design in my own project?
Yes, under the terms of its GPL-3.0 license, which mlab-modules chose for the repository.
