ISM03
About the ISM03 PCB
ISM03 is an open source PCB design by mlab-modules, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 50.3 × 40.1 mm, with 65 components from 32 distinct parts.
Other key parts include the LM1117MP-3.3 and SI4463. By type, the board carries 17 connectors, 17 resistors, 15 capacitors, 8 inductors, 3 diodes and 2 ICs.
It belongs with the rf & radio and iot & wireless designs in this gallery.

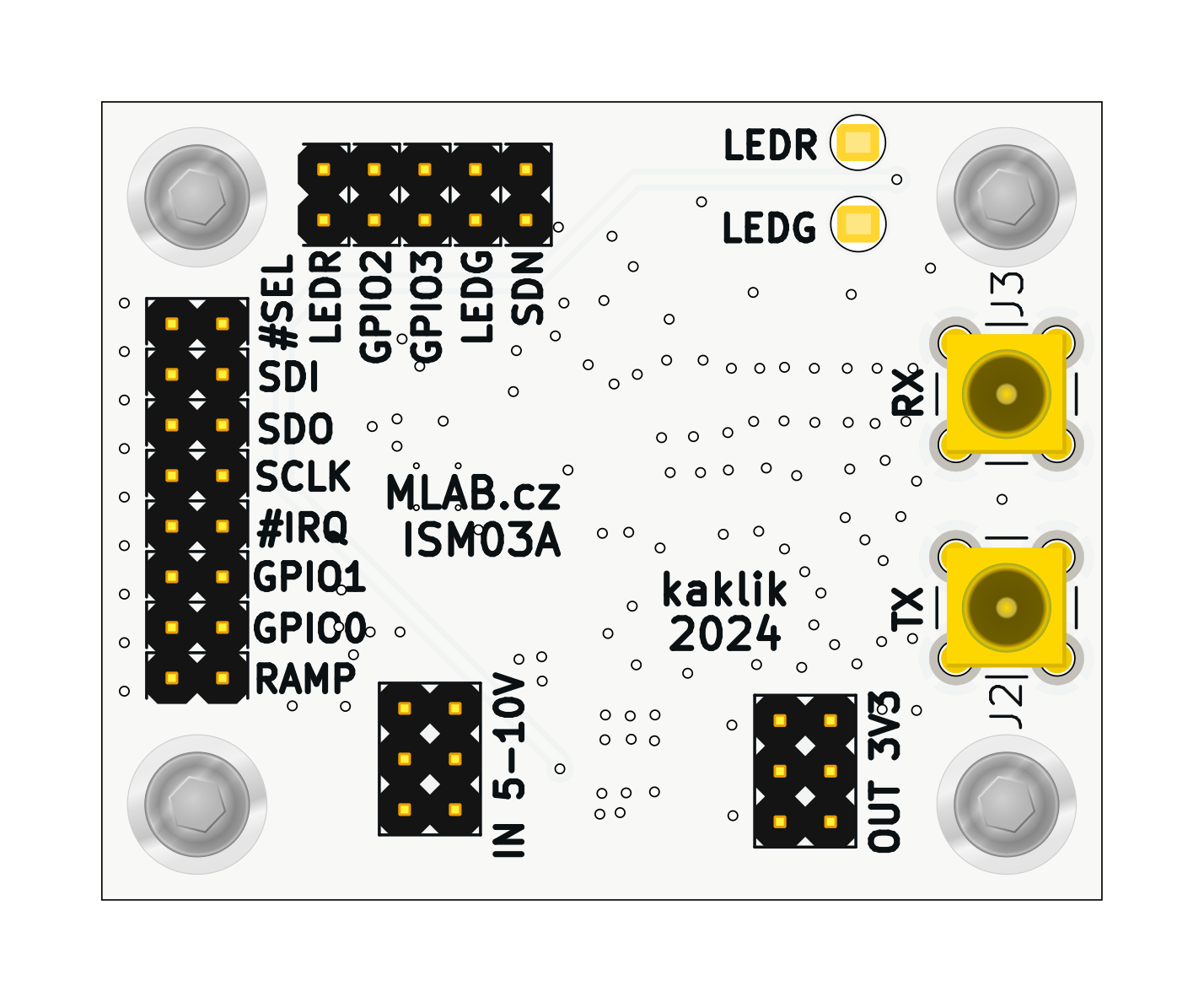

From the project
Si4463-based transceiver with SPI interface
The ISM03 is a high-performance wireless transceiver designed for long-distance data transmission. The module is based on the Si4463 chip from Silicon Labs. It has a wide frequency range and output power, it is ideal for applications that require robust and reliable wireless communication.
ISM03 can operate on the open 433 or 868 MHz frequencies, which are popular in many applications.
Main components on the ISM03
ISM03 bill of materials (BOM)
65 components, 32 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM1117MP-3.3 | SOT-223-3_TabPin2 | U1 |
| 1 | SI4463 Si4463 | QFN-20-1EP_4x4mm_P0.5mm_EP2.6x2.6mm_ThermalVias | U2 |
| 2 | BC817 | SOT-23 | Q1, Q2 |
| 1 | ABM3B-30.000MHZ-10-1-U-T | Crystal_SMD_Abracon_ABM3B-4Pin_5.0x3.2mm | Y2 |
| 2 | JUMP_3X2 | Straight_2x03 | J1, J4 |
| 2 | MCX | SMA6251A13G50 | J2, J3 |
| 13 | HEADER_2x01_PARALLEL | Straight_2x01 | J5, J6, J7, J13, J14, J15, J16, J17 +5 |
| 1 | M4 | D_SMA | D1 |
| 1 | RED | LED_1206 | D2 |
| 1 | GREEN | LED_1206 | D3 |
| 1 | 22NH 22nH | R_0805_2012Metric | L1 |
| 1 | 36NH 36nH | L_0805_2012Metric | L3 |
| 1 | 30NH 30nH | L_0805_2012Metric | L5 |
| 1 | 33NH 33nH | L_0805_2012Metric | L7 |
| 1 | 220NH 220nH | L_0805_2012Metric | L8 |
| 1 | 56NH 56nH | L_0805_2012Metric | L9 |
| 1 | 62NH 62nH | L_0805_2012Metric | L10 |
| 1 | 74279204 | L_0805_2012Metric | L11 |
| 4 | 10uF | C_0805_2012Metric | C1, C3, C5, C20 |
| 2 | 100nF | C_0805_2012Metric | C2, C19 |
Show 12 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 10PF 10pF | C_0805_2012Metric | C4 |
| 2 | 100pF | C_0805_2012Metric | C6, C17 |
| 1 | 12PF 12pF | C_0805_2012Metric | C7 |
| 1 | 15PF 15pF | C_0805_2012Metric | C9 |
| 1 | 9.1PF 9.1pF | C_0805_2012Metric | C11 |
| 1 | 2.2PF 2.2pF | C_0805_2012Metric | C12 |
| 1 | 4.7PF 4.7pF | C_0805_2012Metric | C13 |
| 1 | 33PF 33pF | C_0805_2012Metric | C15 |
| 1 | 3R | R_0805_2012Metric | R1 |
| 3 | 10k | R_0805_2012Metric | R2, R3, R5 |
| 11 | 33R | R_0805_2012Metric | R4, R9, R10, R11, R12, R13, R15, R16 +3 |
| 2 | 150R | R_0805_2012Metric | R22, R23 |
ISM03 design files
The KiCad project lives in the mlab-modules/ISM03 repository on GitHub; these links point at the commit this page was built from.
ISM03: common questions
How big is the ISM03 PCB?
The ISM03 measures 50.3 × 40.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ISM03?
65 components, from 32 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the ISM03 design files?
From the mlab-modules/ISM03 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the ISM03 design in my own project?
Yes, under the terms of its GPL-3.0 license, which mlab-modules chose for the repository.
