PCRD01

mlab-modules·PCRD01·hw/sch_pcb/PCRD01.kicad_pcb

PCRD01 PCB layout, top view — open source board by mlab-modules

About the PCRD01 PCB

PCRD01 is an open source PCB design by mlab-modules, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 50.3 × 30 mm, with 34 components from 24 distinct parts.

Other key parts include the MAX4475 and AD8692. By type, the board carries 14 capacitors, 12 resistors, 5 connectors, 2 ICs and 1 transistor.

It belongs with the science & space designs in this gallery.

From the project

Semiconductor cosmic radiation detector Silicon diode interface.

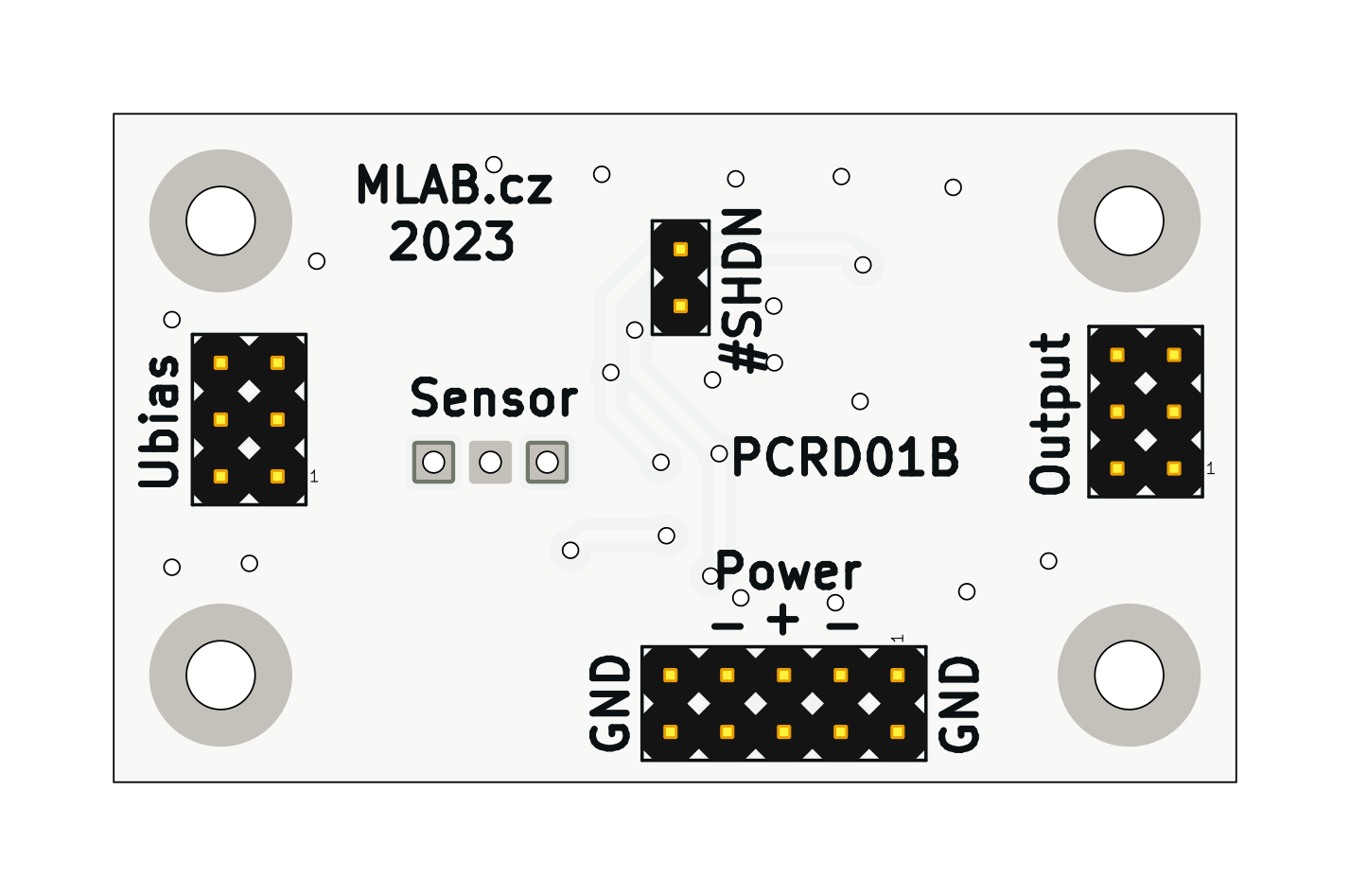

PCRD01, from the project README
From the project README

Main components on the PCRD01

MAX4475AD8692

PCRD01 bill of materials (BOM)

34 components, 24 distinct parts.

QtyPartRefs
1
MAX4475
U1
1
AD8692
U2
1
2SK2394-6
Q1
1
JUMP_3X2
J1
1
JUMP_5X2
J2
1
HEADER_1x03
J3
1
CONN1_2
J4
1
Out
J5
1
4u7
C1
1
12p
C2
4
100nF
C3, C5, C7, C9
2
10uF
C6, C10
2
330nF
C8, C14
1
510pF
C11
1
560pF
C12
1
150pF
C13
1
1u
C15
3
4k7
R1, R2, R12
2
2M
R3, R4
1
3k3
R5
Show 4 more
QtyPartRefs
2
10k
R6, R11
1
1k5
R7
2
2k
R8, R9
1
3k9
R10

PCRD01 design files

The KiCad project lives in the mlab-modules/PCRD01 repository on GitHub; these links point at the commit this page was built from.

PCRD01: common questions

How big is the PCRD01 PCB?

The PCRD01 measures 50.3 × 30 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PCRD01?

34 components, from 24 distinct parts. The full bill of materials is listed on this page.

Where can I download the PCRD01 design files?

From the mlab-modules/PCRD01 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the PCRD01 design in my own project?

Yes, under the terms of its GPL-3.0 license, which mlab-modules chose for the repository.
