SOLARMINIBAT01

mlab-modules·SOLARMINIBAT01·hw/sch_pcb/SOLARMINIBAT01.kicad_pcb

SOLARMINIBAT01 PCB layout, top view — open source board by mlab-modules
Simulate this board

About the SOLARMINIBAT01 PCB

SOLARMINIBAT01 is an open source PCB design by mlab-modules, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 80.8 × 70.6 mm, with 75 components from 36 distinct parts.

Other key parts include the BQ34Z100, SN74HC164D and SPV1040. By type, the board carries 26 resistors, 22 capacitors, 10 diodes, 7 connectors, 3 ICs and 2 inductors.

It belongs with the power & battery designs in this gallery.

From the project

Small low-power photovoltaic MPPT module with LTO battery

Battery module with LTO cells. This module was primarily designed for use in autonomous outdoor devices powered by a solar cell. This is possible thanks to the use of LTO cells, which have a wide range of operating conditions and require minimal care. The device can therefore work in outdoor conditions all year round (tested in Central European conditions).

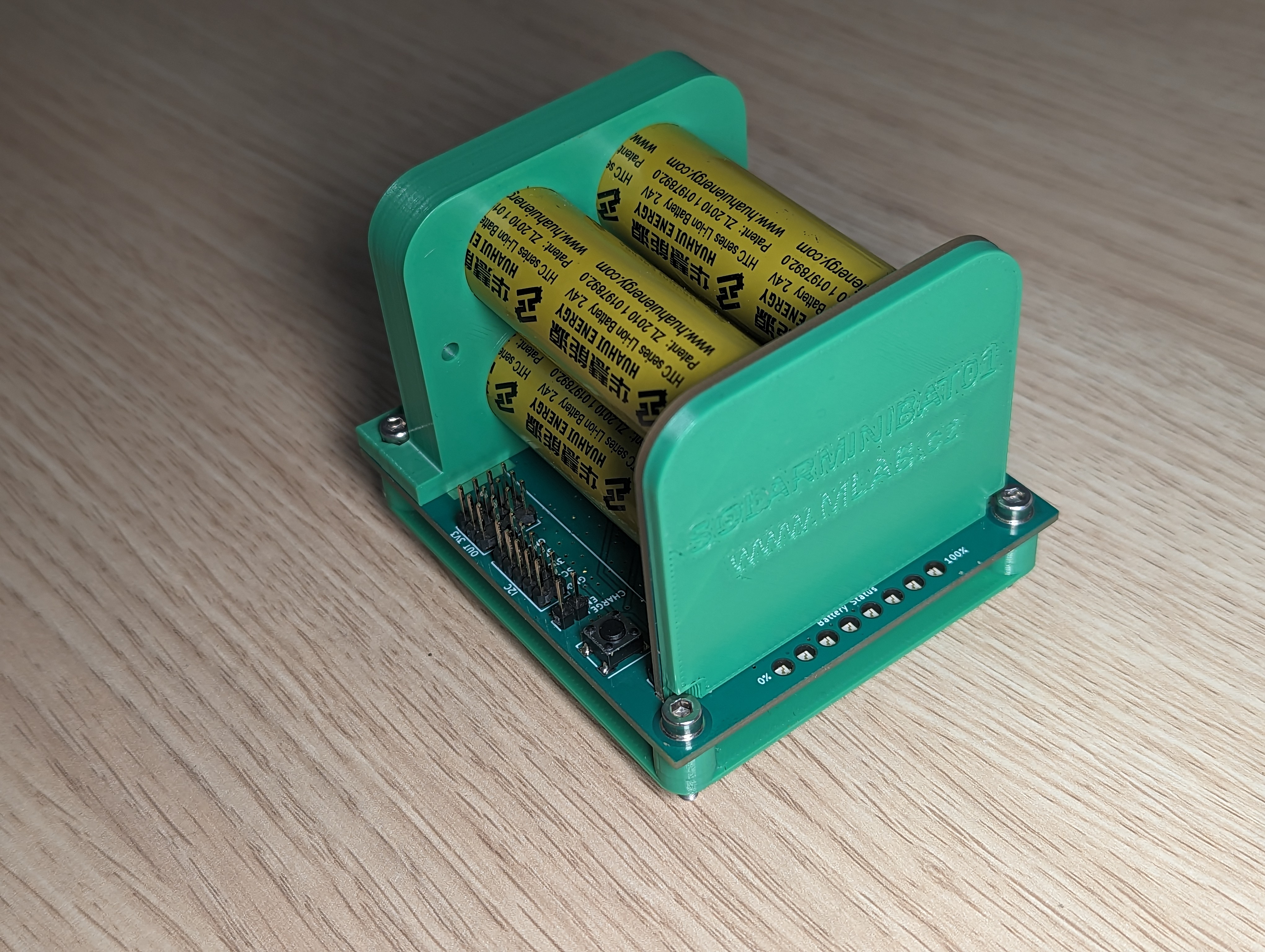

SOLARMINIBAT01, from the project README
From the project README

Main components on the SOLARMINIBAT01

BQ34Z100SN74HC164DSPV1040

SOLARMINIBAT01 bill of materials (BOM)

75 components, 36 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
BQ34Z100
U1
1
SN74HC164D
U2
1
SPV1040
U3
1
TPS63060
X1
3
HEADER_2X03_PARALLEL
HEADER_2x03_PARALLEL
J1, J5, J6
1
WAGO 256 ORANGE
J2
1
WAGO 256 BLUE
J3
1
HEADER_2X01_PARALLEL
HEADER_2x01_PARALLEL
J4
1
HEADER_2X05_PARALLEL
HEADER_2x05_PARALLEL
P1
1
4XLTO18650
4xLTO18650
BT1
1
1,1A
F1
1
SolderJumper_2_Open
JP1
1
SW_PUSH
SW1
8
ORAGE
D1, D2, D3, D4, D5, D6, D7, D8
1
15MQ040N
D9
1
SMBJ5.0A
D10
1
10uH - DE1205-10
L1
1
DE1207-1
L2
8
100NF
100nF
C1, C3, C4, C6, C7, C9, C12, C18
2
1UF
1uF
C2, C10
Show 16 more
QtyPartRefs
1
3N3
3n3
C5
6
47UF/6V3
47uF/6V3
C8, C14, C15, C16, C21, C22
1
1NF
1nF
C11
3
10UF/6V3
10uF/6V3
C13, C17, C20
1
10PF
10pF
C19
3
47K
47k
R1, R2, R3
1
10K NTC
R4
5
1k
R5, R17, R18, R19, R20
2
100R
R6, R7
1
0R01 75PPM
R8
8
270R
R9, R10, R11, R12, R13, R14, R15, R16
1
0R
R21
1
110K
110k
R22
2
100K
100k
R23, R26
1
10K
10k
R24
1
560K
560k
R25

SOLARMINIBAT01 design files

The KiCad project lives in the mlab-modules/SOLARMINIBAT01 repository on GitHub; these links point at the commit this page was built from.

SOLARMINIBAT01: common questions

How big is the SOLARMINIBAT01 PCB?

The SOLARMINIBAT01 measures 80.8 × 70.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SOLARMINIBAT01?

75 components, from 36 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the SOLARMINIBAT01 design files?

From the mlab-modules/SOLARMINIBAT01 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the SOLARMINIBAT01 design in my own project?

Yes, under the terms of its GPL-3.0 license, which mlab-modules chose for the repository.
