Arduino si5351-rf signal generator
mohit716·arduino-si5351-rf-signal-generator

About the Arduino si5351-rf signal generator PCB
Arduino si5351-rf signal generator is an open source AVR/Arduino PCB design by mohit716, published on GitHub. It is a board, with 31 components from 27 distinct parts.
Its main chip is the Arduino Nano, from the AVR/Arduino family. By type, the board carries 11 test points, 6 capacitors, 4 switches, 2 crystals, 2 connectors and 2 resistors.
It belongs with the test & measurement, displays & leds and power & battery designs in this gallery.
From the project

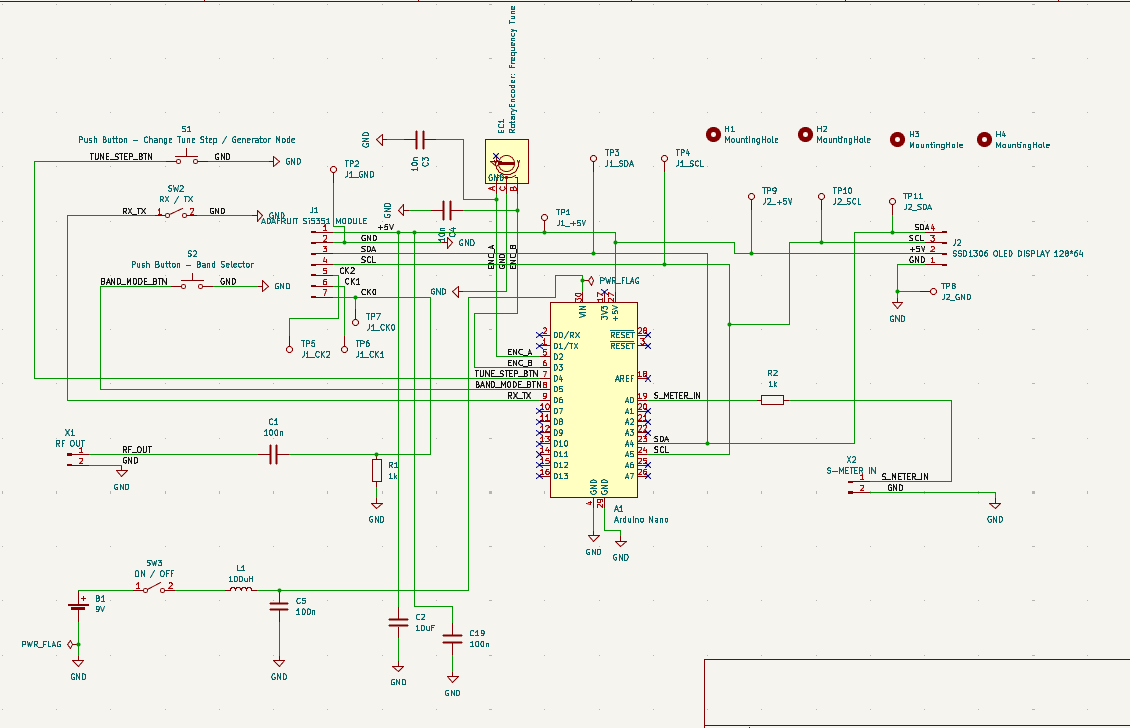

A KiCad schematic for a compact, battery-powered RF signal generator built around an Arduino Nano and an Adafruit Si5351 clock-generator module.
A KiCad schematic for a compact, battery-powered RF signal generator built around an Arduino Nano and an Adafruit Si5351 clock-generator module.
The Arduino Nano drives the Si5351 over I²C to produce a tunable RF output, with a rotary encoder for frequency adjustment, a push button for band selection, and an SSD1306 OLED for the user interface. An S-meter input is provided for signal-strength readout.
Main components on the Arduino si5351-rf signal generator
Arduino si5351-rf signal generator bill of materials (BOM)
31 components, 27 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Arduino Nano | Arduino_Nano | A1 |
| 1 | RF OUT | TerminalBlock_MaiXu_MX126-5.0-02P_1x02_P5.00mm | X1 |
| 1 | S-METER IN | TerminalBlock_MaiXu_MX126-5.0-02P_1x02_P5.00mm | X2 |
| 1 | ADAFRUIT Si5351 MODULE | PinHeader_1x07_P2.54mm_Vertical | J1 |
| 1 | SSD1306 OLED DISPLAY 128*64 | PinHeader_1x04_P2.54mm_Vertical | J2 |
| 1 | 9V | PinHeader_1x02_P2.54mm_Vertical | B1 |
| 1 | RotaryEncoder: Frequency Tune | RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm | EC1 |
| 1 | Push Button - Change Tune Step / Generator Mode | SW_PUSH_6mm | S1 |
| 1 | Push Button - Band Selector | SW_PUSH_6mm | S2 |
| 1 | RX / TX | SW_Slide_SP3T_Straight_CK_OS103012MU1QP1 | SW2 |
| 1 | ON / OFF | SW_Slide_SP3T_Straight_CK_OS103012MU1QP1 | SW3 |
| 1 | J1_+5V | TestPoint_Pad_1.5x1.5mm | TP1 |
| 1 | J1_GND | TestPoint_Pad_1.5x1.5mm | TP2 |
| 1 | J1_SDA | TestPoint_Pad_1.5x1.5mm | TP3 |
| 1 | J1_SCL | TestPoint_Pad_1.5x1.5mm | TP4 |
| 1 | J1_CK2 | TestPoint_Pad_1.5x1.5mm | TP5 |
| 1 | J1_CK1 | TestPoint_Pad_1.5x1.5mm | TP6 |
| 1 | J1_CK0 | TestPoint_Pad_1.5x1.5mm | TP7 |
| 1 | J2_GND | TestPoint_Pad_1.5x1.5mm | TP8 |
| 1 | J2_+5V | TestPoint_Pad_1.5x1.5mm | TP9 |
Show 7 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | J2_SCL | TestPoint_Pad_1.5x1.5mm | TP10 |
| 1 | J2_SDA | TestPoint_Pad_1.5x1.5mm | TP11 |
| 1 | 100uH | L_Radial_D10.0mm_P5.00mm_Fastron_07M | L1 |
| 3 | 100n | C_Disc_D5.0mm_W2.5mm_P2.50mm | C1, C5, C19 |
| 1 | 10uF | CP_Radial_D5.0mm_P2.50mm | C2 |
| 2 | 10n | C_Disc_D5.0mm_W2.5mm_P2.50mm | C3, C4 |
| 2 | 1k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R2 |
Arduino si5351-rf signal generator design files
The KiCad project lives in the mohit716/arduino-si5351-rf-signal-generator repository on GitHub; these links point at the commit this page was built from.
- Schematicrf-signal-generator.kicad_sch
- BOMREADME.md
Arduino si5351-rf signal generator: common questions
What microcontroller does the Arduino si5351-rf signal generator use?
The Arduino si5351-rf signal generator is built around the Arduino Nano, from the AVR/Arduino family.
How many components are on the Arduino si5351-rf signal generator?
31 components, from 27 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Arduino si5351-rf signal generator design files?
From the mohit716/arduino-si5351-rf-signal-generator repository on GitHub, which has the schematic and the BOM; the links under Design files point to each one.
Can I use the Arduino si5351-rf signal generator design in my own project?
The repository has no license, so all rights stay with mohit716. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Arduino si5351-rf signal generator without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
