Storre PCB layout, top view — open source AVR/Arduino board by mohoyt
Simulate this board

About the Storre PCB

Storre is an open source AVR/Arduino PCB design by mohoyt, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 304.8 × 146.8 mm, with 195 components from 17 distinct parts.

Its main chip is the ProMicro, from the AVR/Arduino family. Other key parts include the 74HC138. By type, the board carries 88 diodes, 3 ICs, 2 connectors, 2 switches and 2 capacitors.

It belongs with the keyboards designs in this gallery.

From the project

STHLM kb Storre is an easy to build Pro Micro compatible 75% keyboard

större kits are available for sale at sthlmkb.com

Lagom is licensed under the Creative Commons Attribution-NonCommercial 4.0 International license. This design as it stands in this repository may be freely reproduced, modified, and manufactured for PERSONAL USE ONLY and may not be reproduced in physical form for public sale.

This the key layout and all option layouts exported from keyboard-layout-editor

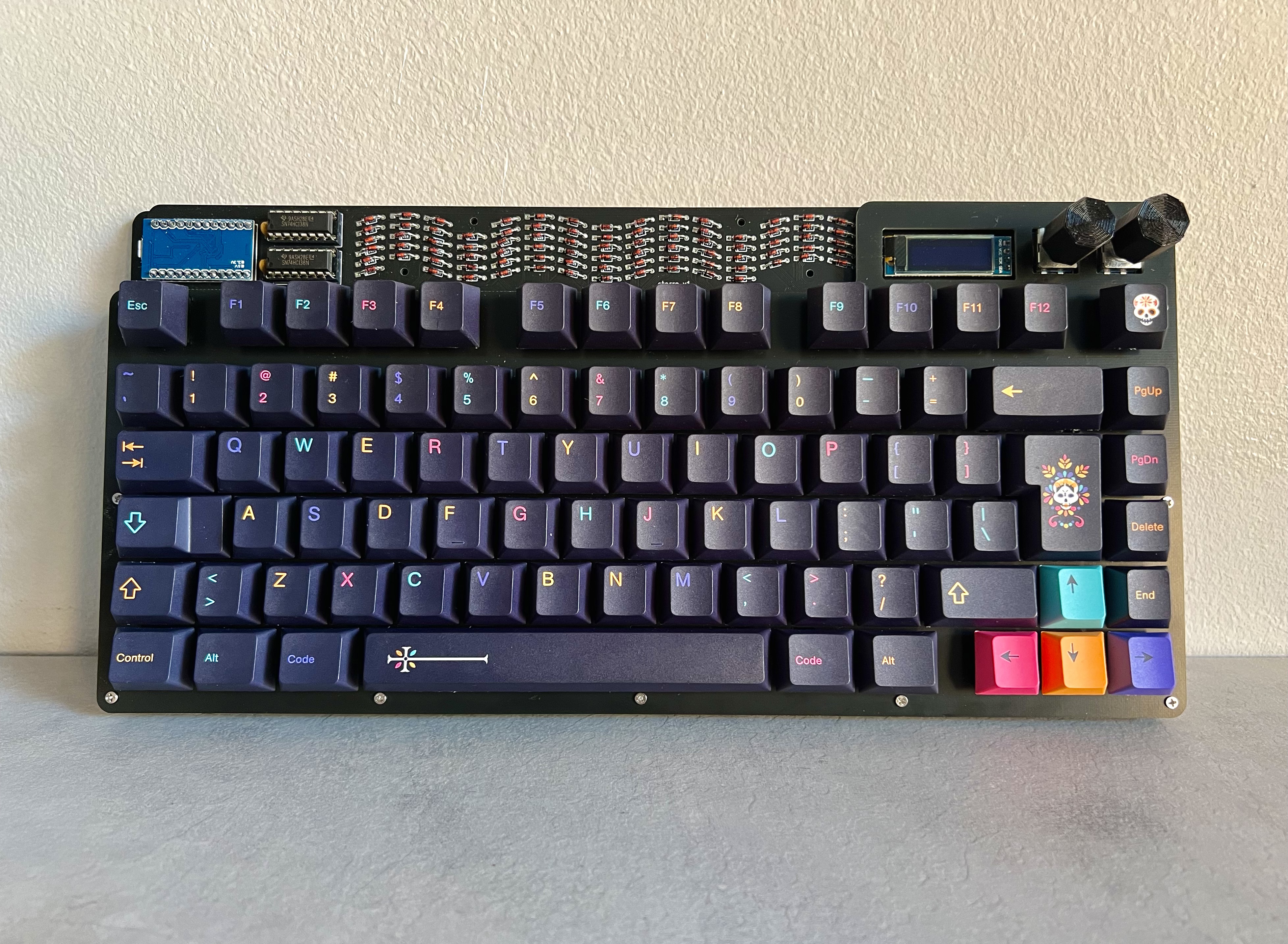

Storre, from the project README
From the project README

Main components on the Storre

ProMicro74HC138

Storre bill of materials (BOM)

195 components, 17 distinct parts.

QtyPartRefs
1
ProMicro
U1
2
74HC138
U2, U3
1
Conn_01x04
J1
1
Conn_01x03
J2
2
RotaryEncoder_Switch
SW83, SW84
75
KEYSW
SW_0, SW_1, SW_2, SW_3, SW_4, SW_5, SW_6, SW_7 +67
1
KEYSW
SW_6.25U_SPACE1
1
KEYSW
SW_7U_SPACE1
3
KEYSW
SW_ANSI_ENT1, SW_LSHF1, SW_SPL_SPACE_L1
5
KEYSW
SW_ANSI_\1, SW_LCOM_1.5U1, SW_LCTRL_1.5U1, SW_R_CTRL_1.5U1, SW_TAB1
1
KEYSW
SW_BCKSP1
2
KEYSW
SW_CAPS1, SW_RSHIFT1
1
KEYSW
SW_ISO_ENT1
8
KEYSW
SW_ISO_LSHF1, SW_LALT_1.25U1, SW_LCMD_1.25U1, SW_LCTRL_1.25U1, SW_R_CMD1, SW_R_CTRL_1.25U1, SW_SPL_SPACE_M1, SW_STEP_CAPS1
1
KEYSW
SW_SPL_SPACE_R1
88
D_Small
D1, D2, D3, D4, D5, D6, D7, D8 +80
2
0.1uF
C1, C2

Storre design files

The KiCad project lives in the mohoyt/sthlmkb-storre repository on GitHub; these links point at the commit this page was built from.

Storre: common questions

What microcontroller does the Storre use?

The Storre is built around the ProMicro, from the AVR/Arduino family.

How big is the Storre PCB?

The Storre measures 304.8 × 146.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Storre?

195 components, from 17 distinct parts. The full bill of materials is listed on this page.

Where can I download the Storre design files?

From the mohoyt/sthlmkb-storre repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Storre design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.

Can I test firmware for the Storre without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
