2020 2021 LIEW ZHOU PCB layout, top view — open source AVR/Arduino board by MOSH-Insa-Toulouse

About the 2020 2021 LIEW ZHOU PCB

2020 2021 LIEW ZHOU is an open source AVR/Arduino PCB design by MOSH-Insa-Toulouse, published on GitHub under the MIT license. It is a 2-layer board measuring 68.6 × 53.3 mm, with 24 components from 16 distinct parts.

Its main chip is the Arduino_1pin, from the AVR/Arduino family. Other key parts include the LTC1050, Gas_Sensor and RN2483_Breakout. By type, the board carries 8 connectors, 7 resistors, 4 capacitors, 3 ICs and 1 diode.

It belongs with the sensors and dev boards & breakouts designs in this gallery.

From the project

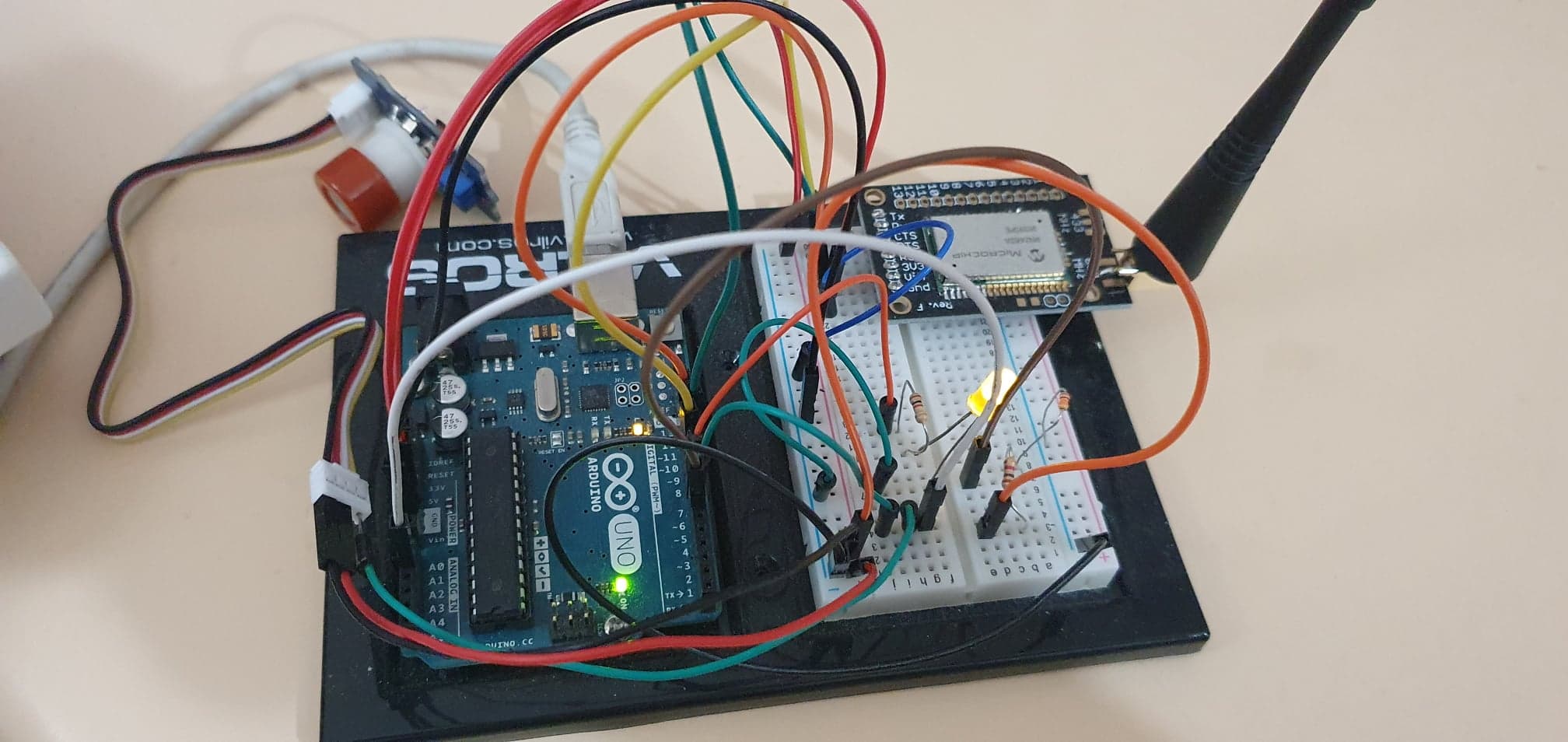

Following is a list of the components used: Arduino Uno x 1 RN2483A LoRa module x 1 LED x 1 Gas sensor MQ3 x 1

2020 2021 LIEW ZHOU, from the project README
From the project README

Main components on the 2020 2021 LIEW ZHOU

LTC1050Gas_SensorRN2483_Breakout

2020 2021 LIEW ZHOU bill of materials (BOM)

24 components, 16 distinct parts.

QtyPartRefs
1
LTC1050
U1
1
Gas_Sensor
U2
1
RN2483_Breakout
U3
1
Power
P1
1
Analog
P2
1
Digital
P3
1
Digital
P4
4
CONN_01X01
P5, P6, P7, P8
1
R_POT
RV1
1
LED
D1
3
100n
C1, C3, C4
1
1u
C2
1
10k
R1
1
100
R2
2
100k
R3, R5
3
1k
R4, R6, R7

2020 2021 LIEW ZHOU design files

The KiCad project lives in the MOSH-Insa-Toulouse/2020_2021_LIEW_ZHOU repository on GitHub; these links point at the commit this page was built from.

2020 2021 LIEW ZHOU: common questions

What microcontroller does the 2020 2021 LIEW ZHOU use?

The 2020 2021 LIEW ZHOU is built around the Arduino_1pin, from the AVR/Arduino family.

How big is the 2020 2021 LIEW ZHOU PCB?

The 2020 2021 LIEW ZHOU measures 68.6 × 53.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 2020 2021 LIEW ZHOU?

24 components, from 16 distinct parts. The full bill of materials is listed on this page.

Where can I download the 2020 2021 LIEW ZHOU design files?

From the MOSH-Insa-Toulouse/2020_2021_LIEW_ZHOU repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the 2020 2021 LIEW ZHOU design in my own project?

Yes, under the terms of its MIT license, which MOSH-Insa-Toulouse chose for the repository.

Can I test firmware for the 2020 2021 LIEW ZHOU without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
