D1R32InterfaceShield

mpek29·D1R32InterfaceShield·design/D1R32InterfaceShield/D1R32InterfaceShield.kicad_pcb

D1R32InterfaceShield PCB layout, top view — open source AVR/Arduino board by mpek29

About the D1R32InterfaceShield PCB

D1R32InterfaceShield is an open source AVR/Arduino PCB design by mpek29, published on GitHub. It is a 2-layer board measuring 68.6 × 53.3 mm, with 12 components from 9 distinct parts.

Its main chip is the Analog_1, from the AVR/Arduino family. Other key parts include the Analog_2, ESP32-S3, ICSP, Digital_1 and Digital_2. By type, the board carries 7 ICs, 4 connectors and 1 capacitor.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

🔌 Modular JST Shield D1R32

D1R32InterfaceShield is an open-source PCB that provides a reliable, modular interface between the UNO D1 R32 Board Module and various external modules via JST-SM & JST-SH connectors. It simplifies integration for IoT, automation, and embedded applications.

- 🔌 Modular Interface: Bridges the UNO D1 R32 with sensors, actuators, and peripherals. - 📏 Compact Design: Optimized layout for small enclosures and prototypes. - 🛠️ Open-source Hardware: Fully customizable to match your project requirements.

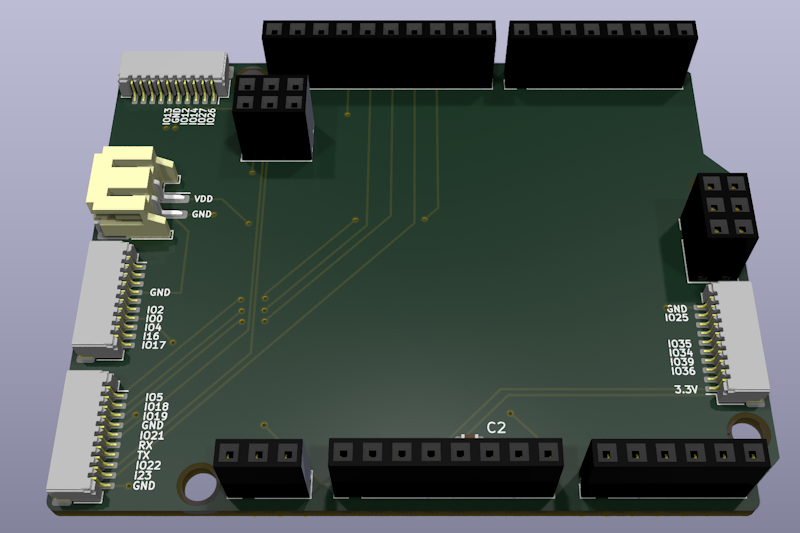

D1R32InterfaceShield, from the project README
From the project README

Main components on the D1R32InterfaceShield

Analog_1Analog_2ESP32-S3ICSPDigital_1Digital_2Arduino_Header_OFF

D1R32InterfaceShield bill of materials (BOM)

12 components, 9 distinct parts.

QtyPartRefs
1
Analog_1
U2
1
Analog_2
U3
1
ESP32-S3
U4
1
ICSP
U5
1
Digital_1
U6
1
Digital_2
U7
1
Arduino_Header_OFF
U8
4
Conn_01x10
J4, J5, J6, J7
1
100nF
C2

D1R32InterfaceShield design files

The KiCad project lives in the mpek29/D1R32InterfaceShield repository on GitHub; these links point at the commit this page was built from.

D1R32InterfaceShield: common questions

What microcontroller does the D1R32InterfaceShield use?

The D1R32InterfaceShield is built around the Analog_1, from the AVR/Arduino family.

How big is the D1R32InterfaceShield PCB?

The D1R32InterfaceShield measures 68.6 × 53.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the D1R32InterfaceShield?

12 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the D1R32InterfaceShield design files?

From the mpek29/D1R32InterfaceShield repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the D1R32InterfaceShield design in my own project?

The repository has no license, so all rights stay with mpek29. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the D1R32InterfaceShield without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
