Virus faceplate

mprosk·virus_faceplate·vocoder_faceplate/vocoder_faceplate.kicad_pcb

Virus faceplate PCB layout, top view — open source board by mprosk

About the Virus faceplate PCB

Virus faceplate is an open source PCB design by mprosk, published on GitHub. It is a 2-layer board measuring 121 × 106 mm, with 0 components from 0 distinct parts.

It belongs with the audio designs in this gallery.

From the project

Vocoder Faceplate for the Access Virus TI2 Synthesizer

When using the vocoder built into the Virus TI series synthesizer, the knobs and buttons of the filter section are replaced with vocoder-specific functions. This faceplate slides over the filter section, providing legends and references when using the vocoder.

PDF versions are included for creating printed versions at home. Some trial-and-error for correct scaling may be required.

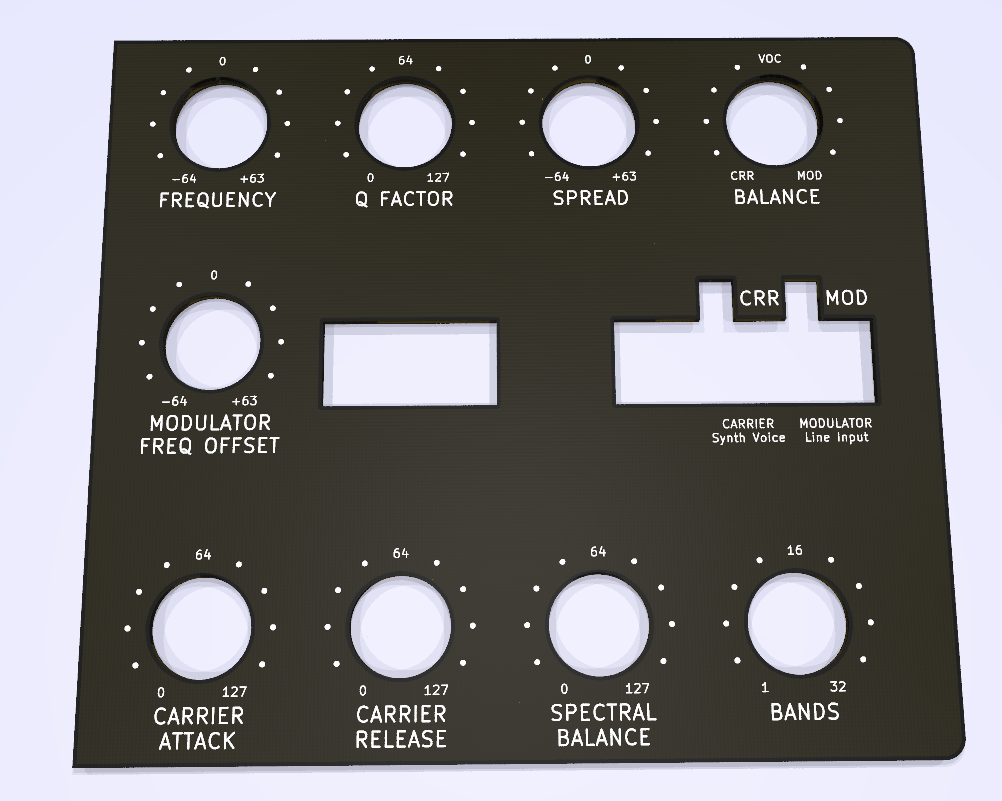

Virus faceplate, from the project README
From the project README

Virus faceplate design files

The KiCad project lives in the mprosk/virus_faceplate repository on GitHub; these links point at the commit this page was built from.

Virus faceplate: common questions

How big is the Virus faceplate PCB?

The Virus faceplate measures 121 × 106 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Virus faceplate?

0 components, from 0 distinct parts. The full bill of materials is listed on this page.

Where can I download the Virus faceplate design files?

From the mprosk/virus_faceplate repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Virus faceplate design in my own project?

The repository has no license, so all rights stay with mprosk. Use it as a reference, and ask the author before reusing the design.
