Xmas hub

MRobertEvers·esp32-xmas·board/xmas_hub/xmas_hub.kicad_pcb

Xmas hub PCB layout, top view — open source board by MRobertEvers

About the Xmas hub PCB

Xmas hub is an open source PCB design by MRobertEvers, published on GitHub. It is a 2-layer board measuring 80 × 66 mm, with 60 components from 22 distinct parts.

Other key parts include the TPS54302DDCR. By type, the board carries 21 capacitors, 14 resistors, 6 diodes, 5 connectors, 5 fuses and 4 ICs.

It belongs with the displays & leds designs in this gallery.

From the project

ESP32 xmas display

Second board in this repo. One of these sits at the base of the tree; a 12 V barrel supply goes in, four independently regulated and fused 5 V "arms" come out on screw terminals, and each arm feeds a short cluster of 3–4 xmasorn` ornaments through their DC‑002 (3.5 × 1.3 mm) barrel jacks.

Distributing 12 V and converting near the load is what makes the star topology work at hobby wire gauges: the trunk carries a quarter of the current it would at 5 V, and every arm is its own 5 V domain. A short or overload on one arm drops that arm's PTC / that buck's hiccup limit, and the other three keep…

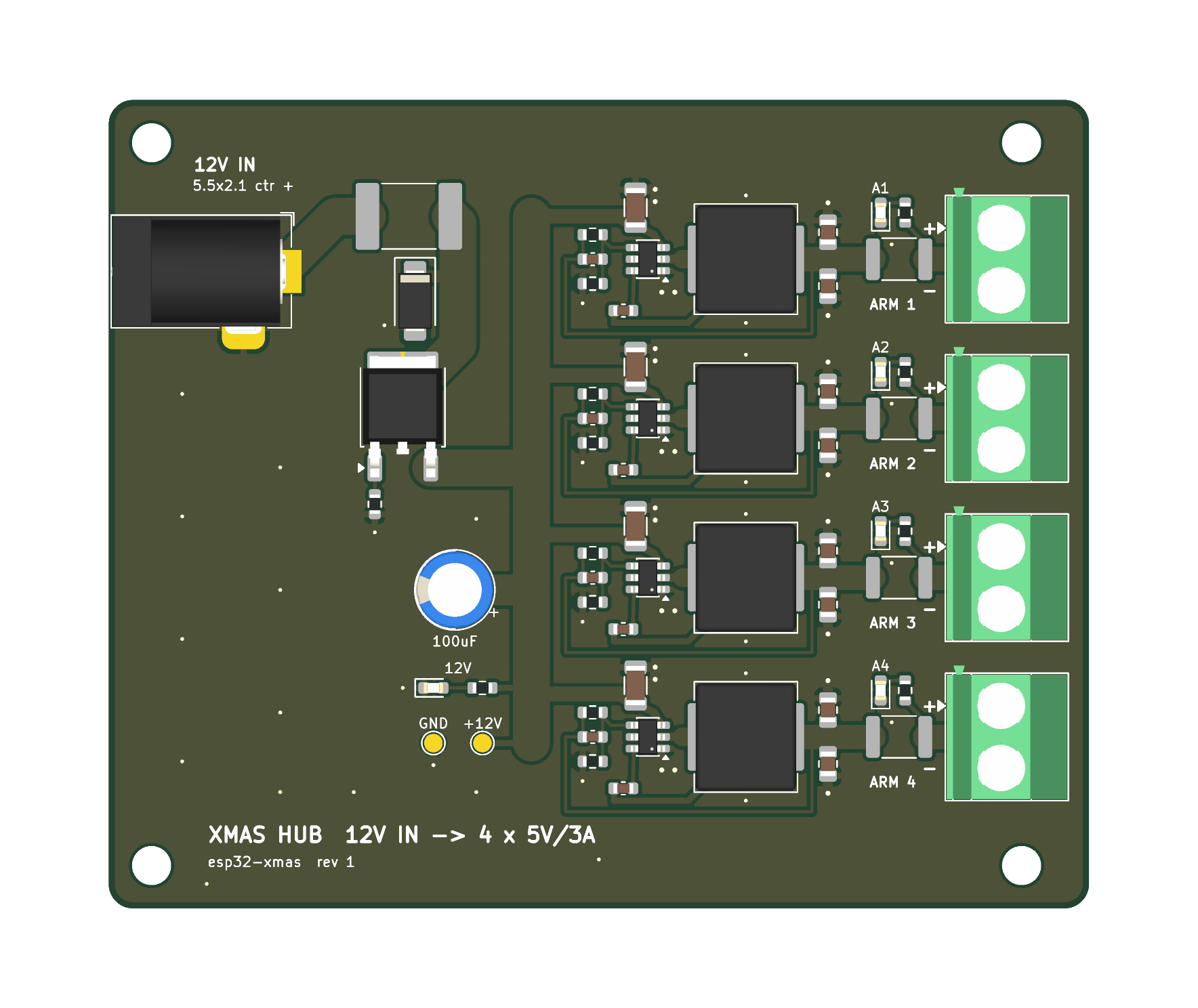

Xmas hub, from the project README
From the project README

Main components on the Xmas hub

TPS54302DDCR

Xmas hub bill of materials (BOM)

60 components, 22 distinct parts — part numbers from the project's BOM.

QtyPartRefs
4
TPS54302DDCR
U1, U2, U3, U4
1
AOD417
Q1
1
DC-005 (2.0 mm pin)
DC-005 5.5x2.1mm
J1
1
KF301-5.0-2P
ARM 1 5V
J2
1
KF301-5.0-2P
ARM 2 5V
J3
1
KF301-5.0-2P
ARM 3 5V
J4
1
KF301-5.0-2P
ARM 4 5V
J5
1
2920L500/16MR
5A PTC 16V
F1
4
SMD1812P260TF/16
2.6A PTC
F11, F21, F31, F41
1
SMAJ15A
D1
1
KT-0603R
LED red
D2
4
KT-0603G
LED green
D11, D21, D31, D41
4
MWSA0804S-100MT
10uH
L1, L2, L3, L4
1
GR107V025E11RR0VH4FP0
100uF 25V
C1
4
CL31B106KAHNNNE
10uF 25V
C11, C21, C31, C41
4
CL10B104KB8NNNC
100nF
C12, C22, C32, C42
8
CL21A226MPQNNNE
22uF 10V
C13, C14, C23, C24, C33, C34, C43, C44
4
CC0603JRNPO9BN750
75pF
C15, C25, C35, C45
5
0603WAF1003T5E
100k
R1, R11, R21, R31, R41
1
0603WAF2201T5E
2.2k
R2
Show 2 more
QtyPartRefs
4
RC0603FR-0713K7L
13.7k
R12, R22, R32, R42
4
0603WAF1001T5E
1k
R13, R23, R33, R43

Xmas hub design files

The KiCad project lives in the MRobertEvers/esp32-xmas repository on GitHub; these links point at the commit this page was built from.

Xmas hub: common questions

How big is the Xmas hub PCB?

The Xmas hub measures 80 × 66 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Xmas hub?

60 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Xmas hub design files?

From the MRobertEvers/esp32-xmas repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Xmas hub design in my own project?

The repository has no license, so all rights stay with MRobertEvers. Use it as a reference, and ask the author before reusing the design.
