Rx5808-receiver

msaribekyan·rx5808-receiver·pcb/rx5808-receiver.kicad_pcb

Rx5808-receiver PCB layout, top view — open source STM32 board by msaribekyan

About the Rx5808-receiver PCB

Rx5808-receiver is an open source STM32 PCB design by msaribekyan, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 50 × 25 mm, with 38 components from 21 distinct parts.

Its main chip is the STM32F042G6U6, from the STM32 family. Other key parts include the RX5808 and XC6206P332MR. By type, the board carries 14 resistors, 13 capacitors, 3 ICs, 2 connectors, 2 diodes and 1 crystal.

From the project

RX5808 based 5.8 GHz analog video receiver module

Custom PCB design for RX5808 and STM32F042.

KiCad was used for designing the schematic and the PCB.

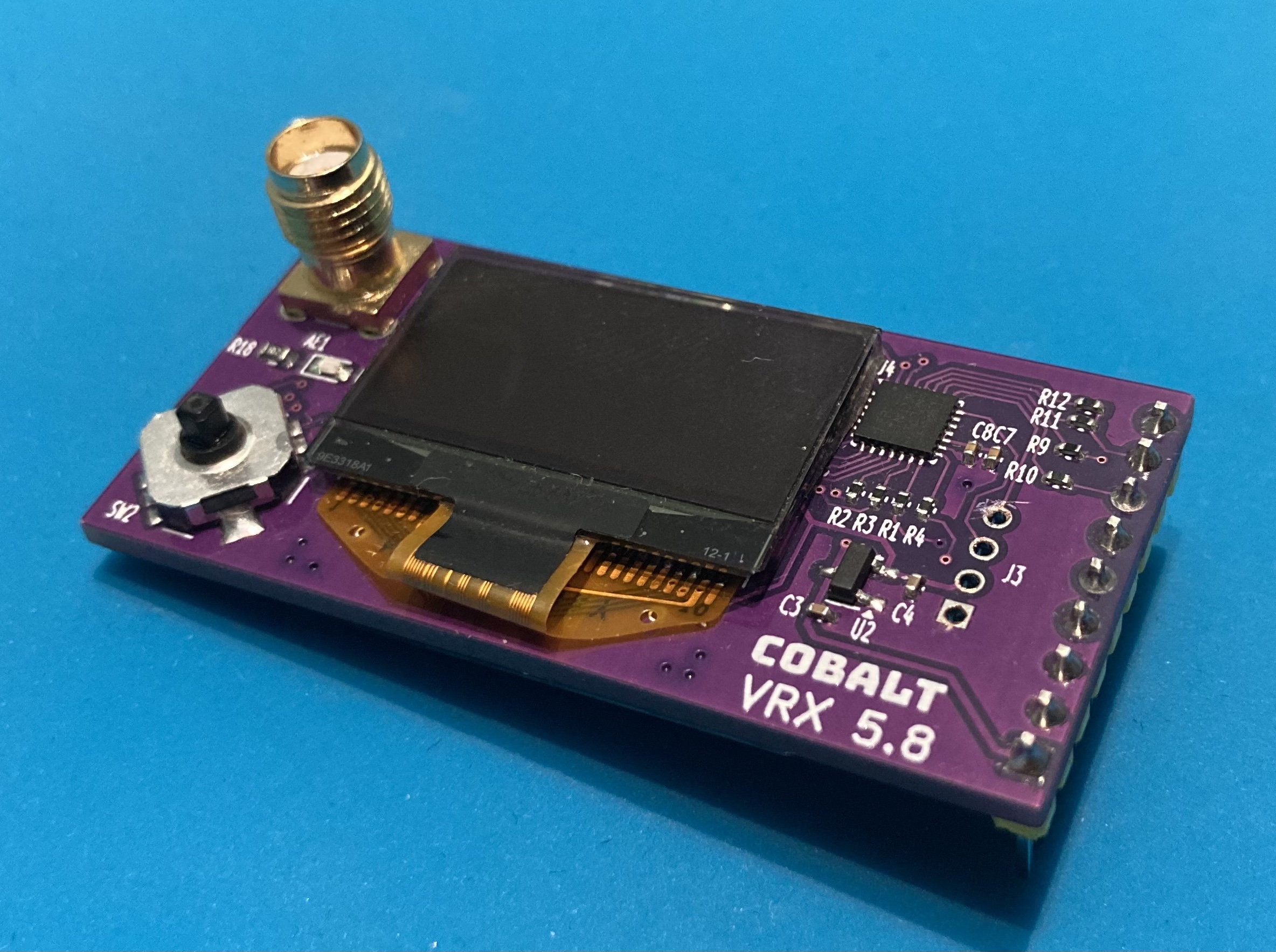

Rx5808-receiver, from the project README
From the project README

Main components on the Rx5808-receiver

RX5808XC6206P332MRSTM32F042G6U6

Rx5808-receiver bill of materials (BOM)

38 components, 21 distinct parts.

QtyPartRefs
1
RX5808
U1
1
XC6206P332MR
U2
1
STM32F042G6U6
U4
1
8MHz
Y1
1
Module
J2
1
DEBUG
J3
1
Ant
AE1
1
SKRHABE010
SW2
1
OLED-128O064D
DS1
1
ORANGE
D1
1
GREEN
D2
2
10pF
C1, C2
2
1uF
C3, C4
3
10uF
C5, C11, C12
4
100nF
C6, C7, C8, C13
2
2.2uF
C9, C10
8
100R
R1, R2, R3, R4, R9, R10, R11, R12
1
10k
R7
2
1k
R8, R18
1
390k
R19
Show 1 more
QtyPartRefs
2
5.1k
R20, R21

Rx5808-receiver design files

The KiCad project lives in the msaribekyan/rx5808-receiver repository on GitHub; these links point at the commit this page was built from.

Rx5808-receiver: common questions

What microcontroller does the Rx5808-receiver use?

The Rx5808-receiver is built around the STM32F042G6U6, from the STM32 family.

How big is the Rx5808-receiver PCB?

The Rx5808-receiver measures 50 × 25 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Rx5808-receiver?

38 components, from 21 distinct parts. The full bill of materials is listed on this page.

Where can I download the Rx5808-receiver design files?

From the msaribekyan/rx5808-receiver repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Rx5808-receiver design in my own project?

Yes, under the terms of its GPL-3.0 license, which msaribekyan chose for the repository.

Can I test firmware for the Rx5808-receiver without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
