ESP32-shield layout, top view — open source board by muhaimin44

About the ESP32-shield

ESP32-shield is an open source PCB design by muhaimin44, published on GitHub. It is a 2-layer board measuring 82.9 × 92.6 mm, with 29 components from 25 distinct parts.

Other key parts include the DEVKIT_V1_ESP32-WROOM-32. By type, the board carries 17 connectors, 6 capacitors, 3 diodes, 2 resistors and 1 IC.

It belongs with the robotics & motion, dev boards & breakouts and power & battery designs in this gallery.

From the project

Custom ESP32 distribution board for robotics and RC vehicles. High-density JST breakout for IBT-2 motor drivers and low-latency ELRS control.

A custom-designed KiCad shield for the ESP32 DevKit V1 (30-pin) development board. This board serves as a central connectivity hub, breaking out GPIOs into secure JST connectors and providing dedicated interfacing for an ExpressLRS (ELRS) receiver. It is designed for robotics, RC vehicles, and telemetry applications.

Motor Driver Interfaces: Features seven dedicated 4-pin JST-XH connectors (J1 to J7) designed to interface with IBT-2 motor drivers. Each port delivers 5V, Ground, and two dedicated hardware PWM signals for independent, bi-directional control of up to 7 motors. Consolidated…

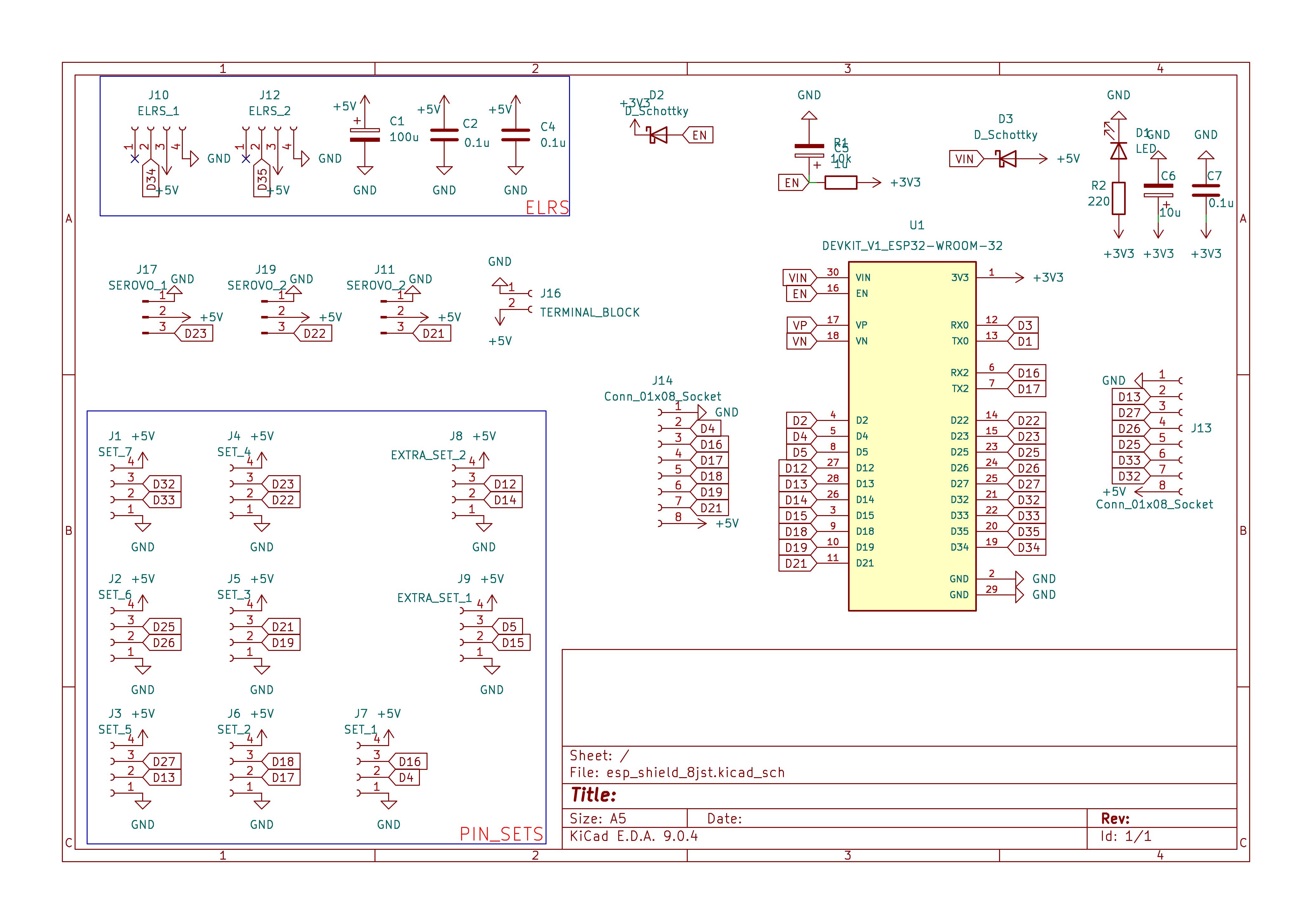

ESP32-shield, from the project README
From the project README

Main components on the ESP32-shield

DEVKIT_V1_ESP32-WROOM-32

ESP32-shield bill of materials (BOM)

29 components, 25 distinct parts.

QtyPartRefs
1
DEVKIT_V1_ESP32-WROOM-32
U1
1
SET_7
J1
1
SET_6
J2
1
SET_5
J3
1
SET_4
J4
1
SET_3
J5
1
SET_2
J6
1
SET_1
J7
1
EXTRA_SET_2
J8
1
EXTRA_SET_1
J9
1
ELRS_1
J10
2
SEROVO_2
J11, J19
1
ELRS_2
J12
2
Conn_01x08_Socket
J13, J14
1
TERMINAL_BLOCK
J16
1
SEROVO_1
J17
1
LED
D1
1
D_Schottky
D2
1
D_Schottky
D3
1
100u
C1
Show 5 more
QtyPartRefs
3
0.1u
C2, C4, C7
1
1u
C5
1
10u
C6
1
10k
R1
1
220
R2

ESP32-shield design files

The KiCad project lives in the muhaimin44/ESP32-shield repository on GitHub; these links point at the commit this page was built from.

ESP32-shield: common questions

How big is the ESP32-shield?

The ESP32-shield measures 82.9 × 92.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ESP32-shield?

29 components, from 25 distinct parts. The full bill of materials is listed on this page.

Where can I download the ESP32-shield design files?

From the muhaimin44/ESP32-shield repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the ESP32-shield design in my own project?

The repository has no license, so all rights stay with muhaimin44. Use it as a reference, and ask the author before reusing the design.
