About the LMS8001-Companion PCB
LMS8001-Companion is an open source STM32 PCB design by myriadrf, published on GitHub. It is a board measuring 75.9 × 96 mm, with 350 components from 102 distinct parts.
Its main chip is the STM32F105RBT6, from the STM32 family. Other key parts include the LMS8001A, NUP2202W1T2G, LP5900SD-3.3/NOPB, AP7361-FGE-7 and NCP702SN18T1G. By type, the board carries 153 capacitors, 96 resistors, 41 inductors, 20 connectors, 14 ICs and 13 transformers.
From the project
Highly configurable 4-channel frequency shifter platform utilising the LMS8001A RFIC

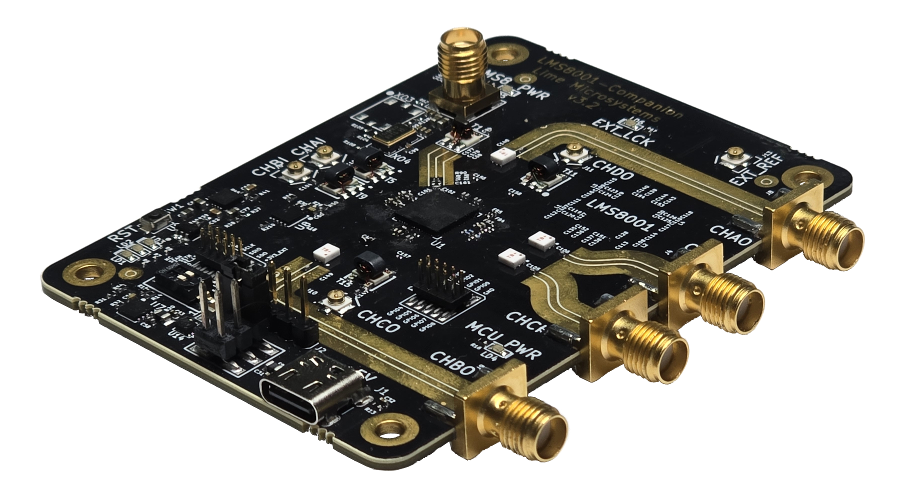

The LMS8001-Companion board provides a highly integrated, highly configurable, four-channel frequency shifter platform, utilising the LMS8001A integrated circuit. One of the typical applications is extending Lime Micro transceiver family RF frequency range up to 10 GHz.
LMS8001A Integrated Circuit Single chip up/down RF frequency shifter with continuous coverage up to 10 GHz RF output range Four independent highly reconfigurable RF paths all driven by the same LO Fully differential signals Few external components Low voltage operation, 1.2 and 1.8V. Integrated LDOs to run on a single 1.8 V…

Main components on the LMS8001-Companion
LMS8001-Companion bill of materials (BOM)
350 components, 102 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LMS8001A Lime Microsystems | LMS8001 | U1 |
| 1 | NUP2202W1T2G ON Semiconductor | SC-88-6_NUP2202W1T2G | U2 |
| 1 | STM32F105RBT6 STMicroelectronics | LQFP64 | U3 |
| 1 | LP5900SD-3.3/NOPB LP5900SD-3.3 NATIONAL SEMICONDUCTOR | LLP-6 | U4 |
| 4 | AP7361-FGE-7 AP7361 Diodes_Incorporated | U-DFN3030-8 | U5, U6, U7, U8 |
| 1 | NCP702SN18T1G NCP702_1V8 ON_Semiconductor | NCP702_TSOP5 | U9 |
| 1 | ADM7155ACPZ-02-R7 ADM7155 Analog Devices | LFCSP-8 | U10 |
| 1 | NCP349MNAETBG NCP349 ON Semiconductor | 6-DFN | U14 |
| 1 | NCP702SN33T1G NCP702_3V3 ON_Semiconductor | NCP702_TSOP5 | U16 |
| 1 | ADF4002BCPZ-RL7 ADF4002 Analog Devices Inc | LFCSP 20 | U18 |
| 1 | NB3H83905CDTG NB3H83905C ON_Semiconductor | TSSOP16_NB3H83905C | U21 |
| 1 | ABM3B-8.000MHZ-10-1-U-T 8MHZ_4PIN Abracon_LLC | ABM3B | X1 |
| 1 | 12402143E512A Amphenol | AMPHENOL_12402143E512A | J1 |
| 1 | 68000-103HLF pin_header_1x3 FCI | pin_header_1x3 | J2 |
| 1 | 732511352 SMA_vert_SMD Molex Inc | SMA_vert_SMD | J3 |
| 4 | 142-0701-851 SMA_H Emerson Network Power Connectivity Johnson | SMA_H | J4, J7, J8, J9 |
| 5 | 734120110 UMC_SMD Molex_LLC | UMC_SMD | J5, J6, J10, J11, J13 |
| 6 | CONN_1 | CONN_1 | P1, P12, P13, P14, P15, P16 |
| 2 | M50-3600542 MCU_SWD Harwin Inc. | HDRGPIO | P2, P3 |
| 1 | 15912060 PINHEADER_2X3 Molex Inc | PINHEADER_2X3 | JP1 |
Show 82 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | B3U-1000P MCU_RESET Omron | B3U-1000P | SW1 |
| 1 | GDH02S04 SW TE Connectivity | Switch 2way | SW2 |
| 1 | TDA10H0SB1R SW_10 C&K | Switch_10way | SW3 |
| 1 | TCM1-83X+ TR_TCM1-83X+ Mini-Circuits | TCM1-63AX+ | T1 |
| 4 | NCR2-113+ Mini-Circuits | NCR2-113+ | T2, T3, T6, T7 |
| 4 | 5400BL15B050 TR_5400BL15B050_NF Johanson_Technology | 5400BL15B050_nosilk | T4, T8, T10, T14 |
| 4 | TC1-1-13M+ TR_TC1-1-13M+ Mini-Circuits | TC1-1-13M+ | T5, T9, T11, T15 |
| 1 | E6245LF RACON_TXCO_Pluto+_NF Rakon | SMD_TXCO_Pluto+ | XO3 |
| 1 | RTX5032A RTX5032A_40.000_MHZ Rakon | SMD_RTX5032A | XO4 |
| 5 | 475-1409-1 LED OSRAM Opto Semiconductors Inc | LED_0603 | LD1, LD2, LD3, LD4, LD5 |
| 1 | HSMG-C190 LED Avago Technologies | LED_0603 | LD6 |
| 19 | BK0603TS601-T FB_0201 Taiyo Yuden | SMD0201 | FB1, FB2, FB3, FB4, FB5, FB6, FB7, FB8 +11 |
| 1 | MPZ2012S601AT000 FB_600R_2A_0805 TDK Corporation | SMD0805 | FB16 |
| 5 | MMZ2012Y600B FB_60R_0805 TDK Corporation | SMD0805 | FB17, FB18, FB19, FB20, FB21 |
| 1 | MMZ1005S601C FB_600R_0402 TDK Corporation | SMD0402 | FB22 |
| 1 | BLM18EG601SN1D Murata_Electronics | SMD0603 | FB29 |
| 3 | IND_0201_NF ind_0201_NF | SMD0201 | L1, L3, L4 |
| 1 | LQP03TN1N6B02D 1.6nH_SMD0201 Murata | SMD0201 | L2 |
| 4 | RC0402JR-070RL 0R_0402 Yageo | IND_0402 | L5, L7, L9, L11 |
| 4 | 0402HP-8N2XJLU 5.6nH Coilcraft | IND_0402 | L6, L8, L10, L12 |
| 2 | LQP03TN1N9B02D 1.9nH_SMD0201 Murata | SMD0201 | L14, L15 |
| 24 | C0603X5R0J105M030BC 1UF_0201_TDK_X5R TDK | SMD0201 | C1, C2, C3, C5, C6, C7, C9, C11 +16 |
| 11 | C0603X7R1E102K030BA 1NF_0201 TDK Corporation | SMD0201 | C4, C8, C10, C14, C19, C20, C25, C141 +3 |
| 25 | CC0402ZRY5V7BB104 100nF_0402 Yageo | SMD0402 | C28, C31, C33, C34, C36, C38, C39, C40 +17 |
| 2 | CC0402JRNPO9BN220 22PF_0402 Yageo | SMD0402 | C29, C30 |
| 1 | CL05B392JB5NNNC 3.9NF_0402 Samsung Electro-Mechanics America, Inc | SMD0402 | C32 |
| 6 | CC0603MRX5R5BB106 10UF_0603 Yageo | SMD0603 | C35, C42, C66, C77, C81, C86 |
| 9 | CC0402ZRY5V5BB105 1UF_0402 Yageo | SMD0402 | C37, C51, C52, C53, C54, C55, C58, C63 +1 |
| 1 | CC1206ZKY5V7BB106 10uF_1206 Yageo | SMD1206 | C57 |
| 2 | GRM188R61E105KA12D 1UF_0603 Murata | SMD0603 | C59, C82 |
| 4 | GRM155R60J475ME87D 4.7UF_0402 Murata_Electronics_North_America | SMD0402 | C60, C61, C62, C64 |
| 1 | CC0402ZRY5V7BB104 100nF_0402_NF Yageo | SMD0402 | C67 |
| 4 | GCM155R71H102KA37D 1NF_0402 Murrata Electronics | SMD0402 | C68, C163, C166, C174 |
| 1 | GRM155R71H122KA01D 1.2nF_0402_NF Murata_Electronics | SMD0402 | C69 |
| 1 | GRM155R61A474KE15D 470NF_0402 Murata_Electronics | SMD0402 | C70 |
| 1 | GRM155R71H683ME14D 68NF_0402 Murata_Electronics | SMD0402 | C72 |
| 1 | 04023A100JAT2A 10PF_0402 AVX Corporation | SMD0402 | C76 |
| 1 | CC0402KRX7R9BB221 220PF_0402 Yageo | SMD0402 | C80 |
| 3 | C0603C0G1H100D030BA 10pF_0201 TDK Corporation | SMD0201 | C94, C101, C102 |
| 1 | CC0402KRX7R7BB183 18NF_0402 Yageo | SMD0402 | C99 |
| 13 | GRM0335C1H100JA01J 10.0pF_0201 Murata_Electronics | SMD0201 | C103, C104, C106, C119, C120, C123, C124, C137 +5 |
| 2 | GRM0335C1HR90BA01D 0.9pF_0201 Murata_Electronics | SMD0201 | C105, C148 |
| 3 | GJM0335C1ER50BB01D 0.5pF_0201 Murata_Electronics | SMD0201 | C107, C109, C152 |
| 20 | CAP_0201_NF cap_0201_NF | SMD0201 | C108, C110, C111, C112, C113, C114, C115, C116 +12 |
| 2 | GRM0335C1HR20BA01D 0.2pF_0201 Murata_Electronics | SMD0201 | C125, C126 |
| 2 | GRM0335C1H1R2CA01D 1.2pF_0201 Murata_Electronics | SMD0201 | C135, C136 |
| 2 | GRM0335C1ER10WA01D 0.1pF_0201 Murata_Electronics | SMD0201 | C139, C140 |
| 1 | GJM0335C1E2R0CB01D 2pF_0201 Murata_Electronics | SMD0201 | C149 |
| 3 | GRM188R61C106MA73D 10UF_0603 Murrata Electronics | SMD0603 | C160, C200, C201 |
| 1 | GJM0335C1ER40WB01D 0.4PF_0201 Murata_Electronics | SMD0201 | C161 |
| 4 | GCM155R71E103KA37D 10NF_0402 Murata_Electronics | SMD0402 | C165, C168, C175, C177 |
| 1 | GRM0335C1HR30BA01D 0.3pF_0201 Murata_Electronics | SMD0201 | C401 |
| 8 | MCR006YRTJ000 0R_0201 Rohm Semiconductor | SMD0201 | R1, R47, R91, R92, R94, R95, R96, R97 |
| 5 | RMCF0402FT10K0 10K_0402 Stackpole Electronics Inc | SMD0402 | R2, R18, R19, R20, R41 |
| 7 | RC0402JR-0710KL 10K_0402 Yageo | SMD0402 | R3, R10, R11, R12, R14, R15, R70 |
| 2 | RC0402FR-0722RL 22R_0402 Yageo | SMD0402 | R4, R5 |
| 5 | ERA-2AED471X 470R_0402 Panasonic Electronic Components | SMD0402 | R6, R7, R8, R16, R67 |
| 10 | RC0402JR-07330RL 330R_0402 Yageo | SMD0402 | R9, R17, R21, R22, R23, R24, R25, R26 +2 |
| 1 | RC0402FR-071ML 1M_0402 Yageo | SMD0402 | R13 |
| 1 | RN73H1ETTP2842F50 28K4_0402 KOA Speer | SMD0402 | R29 |
| 1 | RN73H1ETTP2842F50 35K_0402 KOA Speer | SMD0402 | R30 |
| 1 | RC0402JR-07110KL 110K_0402 Yageo | SMD0402 | R31 |
| 3 | RC0402FR-0734K8L 34K8_0402 Yageo | SMD0402 | R32, R34, R36 |
| 1 | RC0402FR-0723K2L 23K2_0402 Yageo | SMD0402 | R33 |
| 1 | RC0402FR-0744K2L 44K2_0402 Yageo | SMD0402 | R35 |
| 11 | RC0402JR-070RL 0R_0402_NF Yageo | SMD0402 | R37, R39, R44, R62, R80, R104, R105, R108 +3 |
| 17 | RC0402JR-070RL 0R_0402 Yageo | SMD0402 | R38, R40, R42, R43, R50, R52, R53, R54 +9 |
| 1 | RC0402FR-074K99L 4K99_0402 Yageo | SMD0402 | R45 |
| 1 | MCR006YRTJ000 0R Rohm Semiconductor | SMD0201 | R46 |
| 3 | MCR006YRTJ000 0R_0201_NF Rohm Semiconductor | SMD0201 | R48, R49, R90 |
| 1 | RC0402FR-07680RL 680R_0402 Yageo | SMD0402 | R55 |
| 1 | RC0402FR-075K1L 5K1_0402 Yageo | SMD0402 | R65 |
| 1 | RC0402JR-0710RL 10R_0402 Yageo | SMD0402 | R66 |
| 1 | RMCF0402FT1K00 1K_0402 Stackpole Electronics Inc | SMD0402 | R69 |
| 2 | CRCW040251R0FKED 51R_0402 Vishay Dale | SMD0402 | R74, R79 |
| 3 | RC0402FR-0747RL 47R_0402 Yageo | SMD0402 | R76, R77, R78 |
| 1 | RC0805JR-070RL 0R_0805_NF Yageo | SMD0805 | R93 |
| 1 | RC0805JR-070RL 0R_0805 Yageo | SMD0805 | R98 |
| 1 | RC0402FR-0733R2L 33R2_0402 Yageo | SMD0402 | R112 |
| 2 | RC0402FR-0749R9L 49R9_0402 Yageo | SMD0402 | R113, R124 |
| 1 | RC0402FR-074K99L 4K99_0402_NF Yageo | SMD0402 | R114 |
| 2 | RC0402FR-0739RL 39R_0402 Yageo | SMD0402 | R121, R122 |
LMS8001-Companion design files
The KiCad project lives in the myriadrf/LMS8001-Companion repository on GitHub; these links point at the commit this page was built from.
LMS8001-Companion: common questions
What microcontroller does the LMS8001-Companion use?
The LMS8001-Companion is built around the STM32F105RBT6, from the STM32 family.
How big is the LMS8001-Companion PCB?
The LMS8001-Companion measures 75.9 × 96 mm and is 1.6 mm thick.
How many components are on the LMS8001-Companion?
350 components, from 102 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the LMS8001-Companion design files?
From the myriadrf/LMS8001-Companion repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the LMS8001-Companion design in my own project?
The repository has no license, so all rights stay with myriadrf. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the LMS8001-Companion without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
