Basix board

n-lucas·basix-board·hardware/kicad/basix-board.kicad_pcb

Basix board layout, top view — open source PIC board by n-lucas

About the Basix board

Basix board is an open source PIC PCB design by n-lucas, published on GitHub under the CERN-OHL-W-2.0 license. It is a 2-layer board measuring 106.5 × 129.9 mm, with 95 components from 43 distinct parts.

Its main chip is the pic18f46k20-i/p, from the PIC family. Other key parts include the LM2596T-3.3, PC817, MAX485, 25LC1024 and W5500 Lite. By type, the board carries 32 resistors, 24 capacitors, 11 diodes, 10 ICs, 7 connectors and 4 transistors.

It belongs with the iot & wireless designs in this gallery.

From the project

Open hardware embedded I/O controller for automation and IoT projects.

Open hardware embedded I/O controller for automation and IoT projects.

BASIX is an open hardware embedded controller built primarily with through-hole (THT) components and based on the PIC18F46K20 microcontroller, providing Ethernet, RS485 and other peripherals.

It was designed as an educational platform for learning embedded electronics, prototyping automation systems, and experimenting with industrial communication interfaces and isolated I/O.

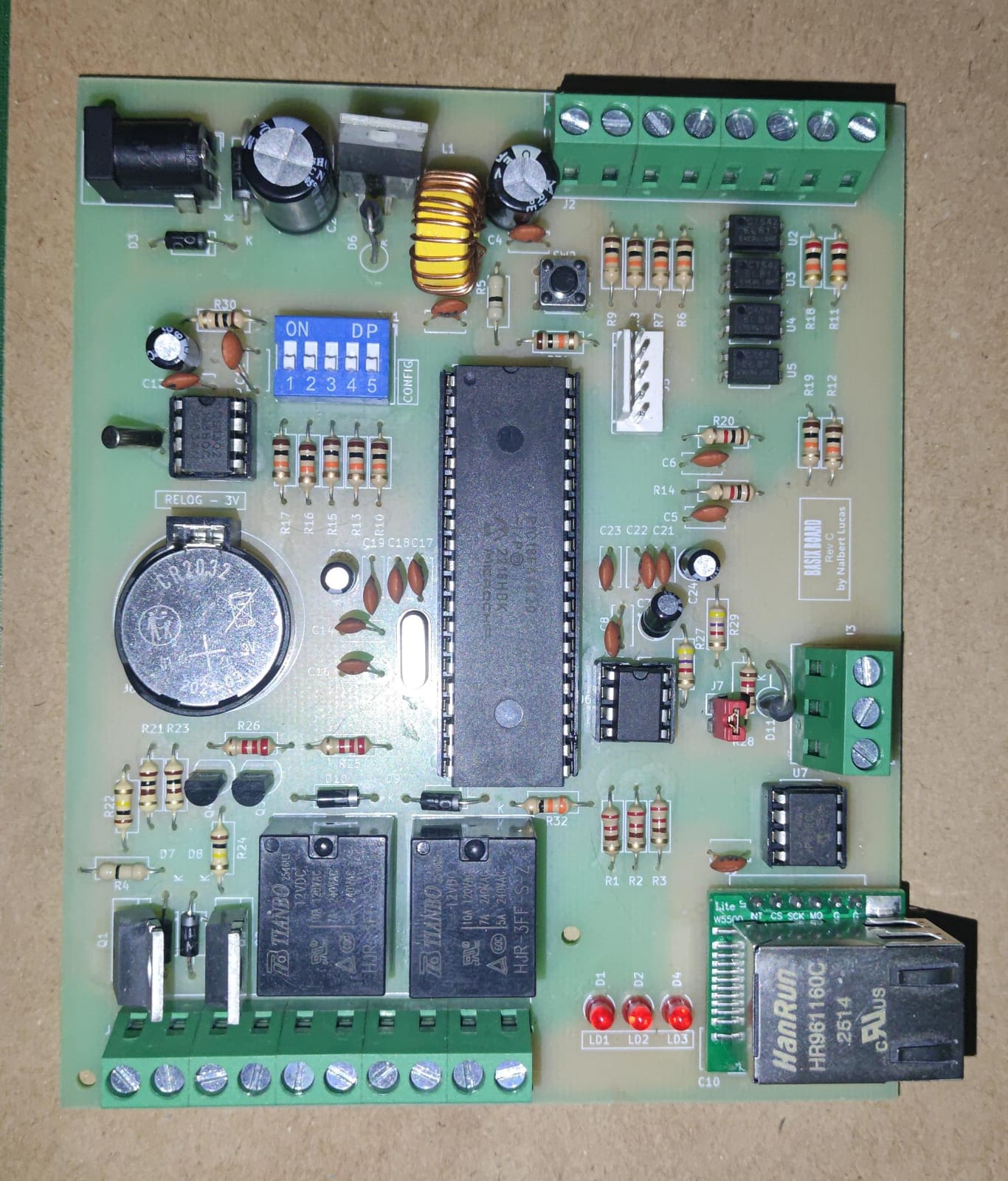

Basix board, from the project README
From the project README

Main components on the Basix board

LM2596T-3.3PC817MAX48525LC1024W5500 LiteDS1302+pic18f46k20-i/p

Basix board bill of materials (BOM)

95 components, 43 distinct parts.

QtyPartRefs
1
LM2596T-3.3
U1
4
PC817
U2, U3, U4, U5
1
MAX485
U6
1
25LC1024
U7
1
W5500 Lite
U8
1
DS1302+
U9
1
pic18f46k20-i/p
U10
2
IRLZ44N
Q1, Q2
2
BC548
Q3, Q4
1
Crystal
Y1
1
Crystal
Y2
1
Barrel Connector
J1
1
Conn_01x08_Pin
J2
1
Conn_01x03_Pin
J3
1
Conn_01x10_Pin
J4
1
KK Connector
J5
1
BAT Connector
J6
1
Conn_01x02_Pin
J7
2
SPDT 12V
K1, K2
1
DIP Switch
SW1
Show 23 more
QtyPartRefs
1
SW_Push
SW2
3
LED
D1, D2, D4
5
1N4007
D3, D7, D8, D9, D10
1
P6KE68A
D5
1
1N5819
D6
1
P6KE15CA
D11
1
33uH
L1
18
100nF
C1, C4, C5, C6, C8, C9, C10, C12 +10
1
680uF
C2
1
220uF
C3
4
10uF
C7, C11, C20, C24
3
220R
R1, R2, R3
2
0R
R4, R5
6
2k2
R6, R7, R8, R9, R25, R26
8
10k
R10, R12, R13, R15, R16, R17, R19, R31
2
20k
R11, R18
2
1k
R14, R20
2
100R
R21, R23
2
100k
R22, R24
2
4k7
R27, R29
1
120R
R28
1
10R
R30
1
33R
R32

Basix board design files

The KiCad project lives in the n-lucas/basix-board repository on GitHub; these links point at the commit this page was built from.

Basix board: common questions

What microcontroller does the Basix board use?

The Basix board is built around the pic18f46k20-i/p, from the PIC family.

How big is the Basix board?

The Basix board measures 106.5 × 129.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Basix board?

95 components, from 43 distinct parts. The full bill of materials is listed on this page.

Where can I download the Basix board design files?

From the n-lucas/basix-board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Basix board design in my own project?

Yes, under the terms of its CERN-OHL-W-2.0 license, which n-lucas chose for the repository.

Can I test firmware for the Basix board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug PIC firmware against it before you order a PCB.
