Pico w dual serial PCB layout, top view — open source RP2040/RP2350 board by n1kdo

About the Pico w dual serial PCB

Pico w dual serial is an open source RP2040/RP2350 PCB design by n1kdo, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 86.4 × 76.2 mm, with 59 components from 13 distinct parts.

Its main chip is the PicoW, from the RP2040/RP2350 family. Other key parts include the MAX3232 and LM7805_TO220. By type, the board carries 40 test points, 7 capacitors, 3 ICs, 2 diodes, 1 connector and 1 fuse.

It belongs with the rf & radio designs in this gallery.

From the project

N1KDO Raspberry Pi Pico-W Dual Serial Interface.

This is a simple board that supports two RS-232 serial ports (TXD & RXD only) with a Raspberry PI Pico-W. This is useful to internet-enable devices that support a serial interface.

This board is sized for a Hammond Manufacturing 1591XXSFLBK enclosure.

This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.

To view a copy of this license, visit http://creativecommons.org/licenses/by-sa/4.0/ or send a letter to Creative Commons, PO Box 1866, Mountain View, CA 94042, USA.

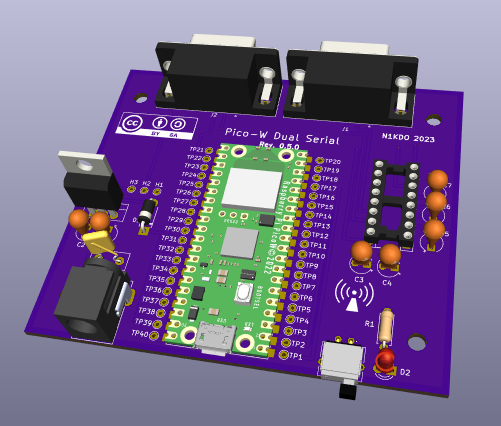

Pico w dual serial, from the project README
From the project README

Main components on the Pico w dual serial

PicoWMAX3232LM7805_TO220

Pico w dual serial bill of materials (BOM)

59 components, 13 distinct parts.

QtyPartRefs
1
PicoW
U1
1
MAX3232
U2
1
LM7805_TO220
U3
1
RAPC722X
J3
1
0.9A
F1
2
2
H1, H3
1
1
H2
1
Mode Button
SW1
40
TestPoint
TP1, TP2, TP3, TP4, TP5, TP6, TP7, TP8 +32
1
1N5819
D1
1
LED
D2
7
.1
C1, C2, C3, C4, C5, C6, C7
1
330
R1

Pico w dual serial design files

The KiCad project lives in the n1kdo/pico-w-dual-serial repository on GitHub; these links point at the commit this page was built from.

Pico w dual serial: common questions

What microcontroller does the Pico w dual serial use?

The Pico w dual serial is built around the PicoW, from the RP2040/RP2350 family.

How big is the Pico w dual serial PCB?

The Pico w dual serial measures 86.4 × 76.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pico w dual serial?

59 components, from 13 distinct parts. The full bill of materials is listed on this page.

Where can I download the Pico w dual serial design files?

From the n1kdo/pico-w-dual-serial repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Pico w dual serial design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which n1kdo chose for the repository.

Can I test firmware for the Pico w dual serial without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
