Dac PCB layout, top view — open source Raspberry Pi board by naguirre

About the Dac PCB

Dac is an open source Raspberry Pi PCB design by naguirre, published on GitHub. It is a 2-layer board measuring 30.1 × 65.1 mm, with 23 components from 21 distinct parts.

Its main chip is the RASPBERRY_PI_2_3, from the Raspberry Pi family. Other key parts include the F1C100S, ES9023 and LP5912-3.3DRV. By type, the board carries 10 capacitors, 6 connectors, 3 ICs, 3 resistors and 1 diode.

From the project

MDS hardware based on f1c200s and esp32-c3

KiCad sources and fabrication outputs for a small network audio player board built around an Allwinner F1C200s SoC, an ESP32-C3 for Wi-Fi, NAND flash storage, an EA3036 power management IC, and an audio DAC daughter board.

The repository contains two KiCad projects: - network_player/ — the main board - dac/ — the audio DAC daughter board

References on GitHub: v1 is at commit c1560a5, v1.1 is the v1.1 tag, v2 lives on the networkplayerv2 branch. The v1jlcpcb` tag points to the JLCPCB return files for v1.

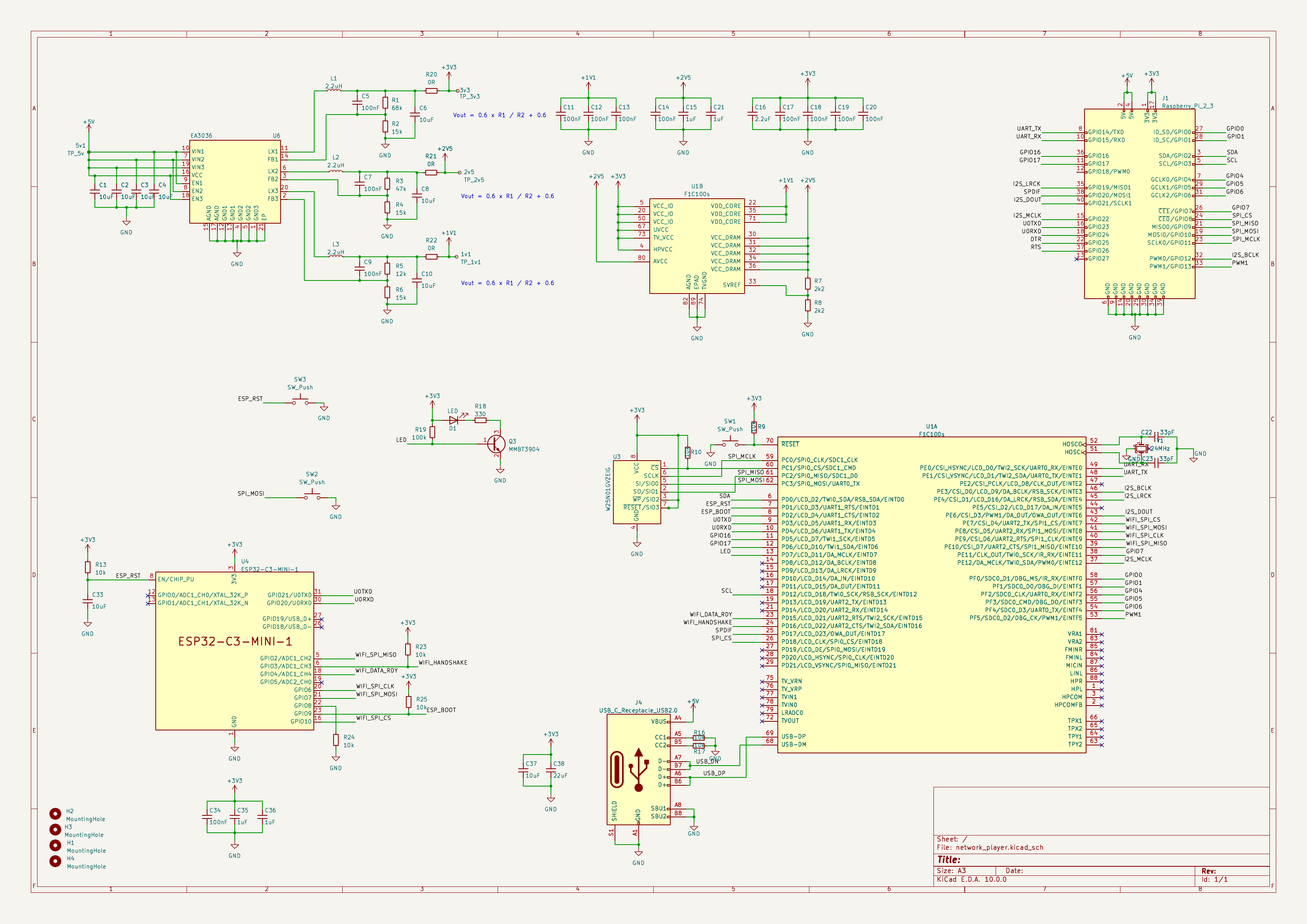

Dac, from the project README
