Lora to-Wemos-D1-mini
About the Lora to-Wemos-D1-mini PCB
Lora to-Wemos-D1-mini is an open source PCB design by nanomonkey, published on GitHub. It is a 4-layer board measuring 25.8 × 32.9 mm, with 9 components from 6 distinct parts.
Other key parts include the RFM95, LM1117-3.3 and WeMos_mini. By type, the board carries 5 capacitors, 3 ICs and 1 antenna.
It belongs with the rf & radio designs in this gallery.
From the project
Esp8266 board connector for LORA

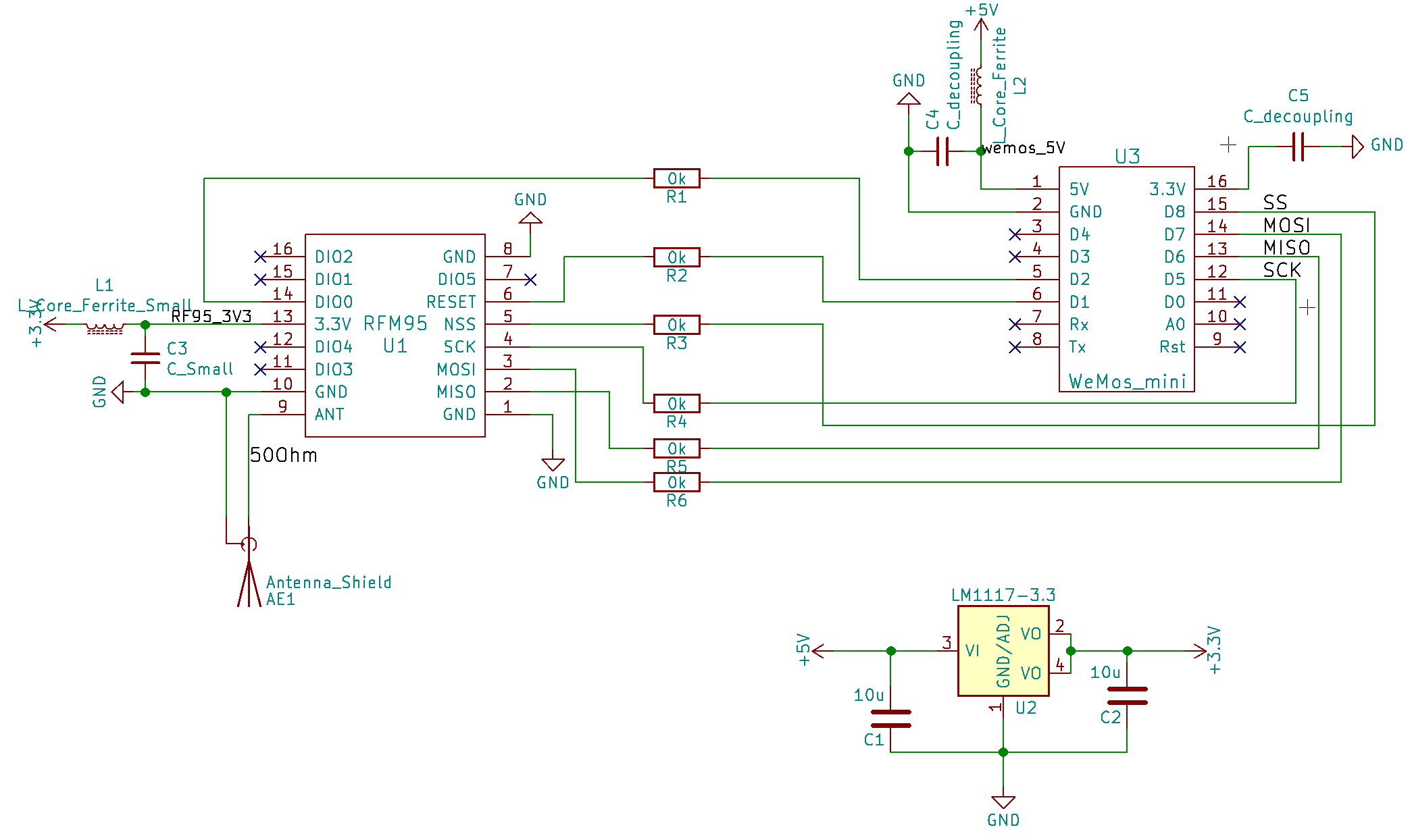

KiCad Circuit board for a Lora (RFM95) to the Wemo D1 Mini ESP8266 board connector for playing around with the two technologies. This board acts as a hat for the Wemo, and contains the lora chip, antenna and power circuits for powering the lora chip off of the 5v coming off of the Wemo's usb power.
Main components on the Lora to-Wemos-D1-mini
Lora to-Wemos-D1-mini bill of materials (BOM)
9 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | RFM95 | RFM95 | U1 |
| 1 | LM1117-3.3 | SOT-223 | U2 |
| 1 | WeMos_mini | D1_mini_board | U3 |
| 1 | Antenna_Shield | Molex_SMA_Jack_Edge_Mount | AE1 |
| 2 | 10uF | C_0805_HandSoldering | C1, C2 |
| 3 | 0.1uF | C_0805_HandSoldering | C3, C4, C5 |
Lora to-Wemos-D1-mini design files
The KiCad project lives in the nanomonkey/Lora-to-Wemos-D1-mini repository on GitHub; these links point at the commit this page was built from.
Lora to-Wemos-D1-mini: common questions
How big is the Lora to-Wemos-D1-mini PCB?
The Lora to-Wemos-D1-mini measures 25.8 × 32.9 mm, has 4 copper layers and is 1.2 mm thick.
How many components are on the Lora to-Wemos-D1-mini?
9 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Lora to-Wemos-D1-mini design files?
From the nanomonkey/Lora-to-Wemos-D1-mini repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Lora to-Wemos-D1-mini design in my own project?
The repository has no license, so all rights stay with nanomonkey. Use it as a reference, and ask the author before reusing the design.
