Task1 PCB layout, top view — open source board by narimonjonmurodov

About the Task1 PCB

Task1 is an open source PCB design by narimonjonmurodov, published on GitHub. It is a 2-layer board measuring 64.2 × 52.6 mm, with 12 components from 11 distinct parts.

By type, the board carries 4 resistors, 2 transformers, 2 LEDs, 2 capacitors and 1 switch.

It belongs with the power & battery designs in this gallery.

From the project

A compact solar harvesting power supply designed to provide a stable 3.3V output from variable sunlight.

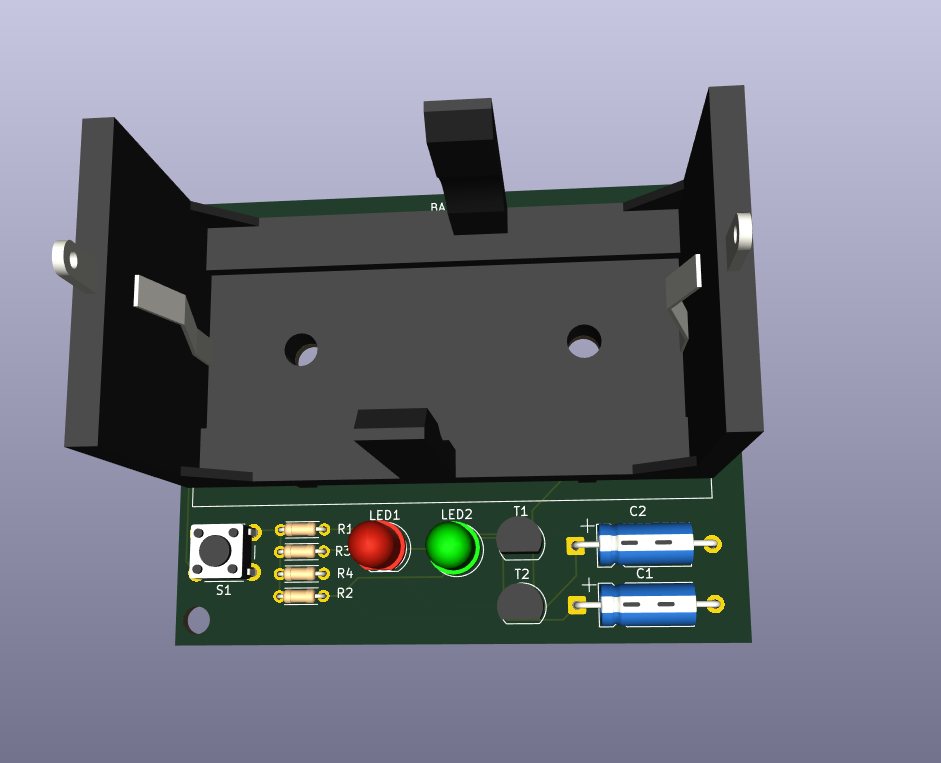

Task1, from the project README
From the project README

Task1 bill of materials (BOM)

12 components, 11 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
~
BAT1
1
~
S1
1
2N7002
~
T1
1
~
T2
2
~
LED1, LED2
1
4U7
~
C1
1
22U
~
C2
1
100
R1
1
604K
100
R2
1
10K
R3
1
10K
R4

Task1 design files

The KiCad project lives in the narimonjonmurodov/PCB-design repository on GitHub; these links point at the commit this page was built from.

Task1: common questions

How big is the Task1 PCB?

The Task1 measures 64.2 × 52.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Task1?

12 components, from 11 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Task1 design files?

From the narimonjonmurodov/PCB-design repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Task1 design in my own project?

The repository has no license, so all rights stay with narimonjonmurodov. Use it as a reference, and ask the author before reusing the design.
