Normalpad PCB layout, top view — open source RP2040/RP2350 board by nathantsai1

About the Normalpad PCB

Normalpad is an open source RP2040/RP2350 PCB design by nathantsai1, published on GitHub. It is a 2-layer board measuring 335 × 132.7 mm, with 165 components from 9 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. By type, the board carries 82 switches, 82 diodes and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

*Note: this is a hackboard, not a hackpad ## What is this? This is a 75% keyboard inspired by the Keychron Q1 Custom Keyboard. It consists of 82 keys, hot-swappable switches a 3D printable case, and stabilizers. The bottom half is split in half to make it easier to sand

*Note: this is a hackboard, not a hackpad ## What is this? This is a 75% keyboard inspired by the Keychron Q1 Custom Keyboard. It consists of 82 keys, hot-swappable switches a 3D printable case, and stabilizers. The bottom half is split in half to make it easier to sand

*The more important files are contained in the production folder, README, and bom(in a ccsv file and at the end of this page) ## Why did I make this I primarily started this for HackPad v2. However, during the process of making this, I learned more about the different types of switches, stabilizers, splitting up CAD designs…

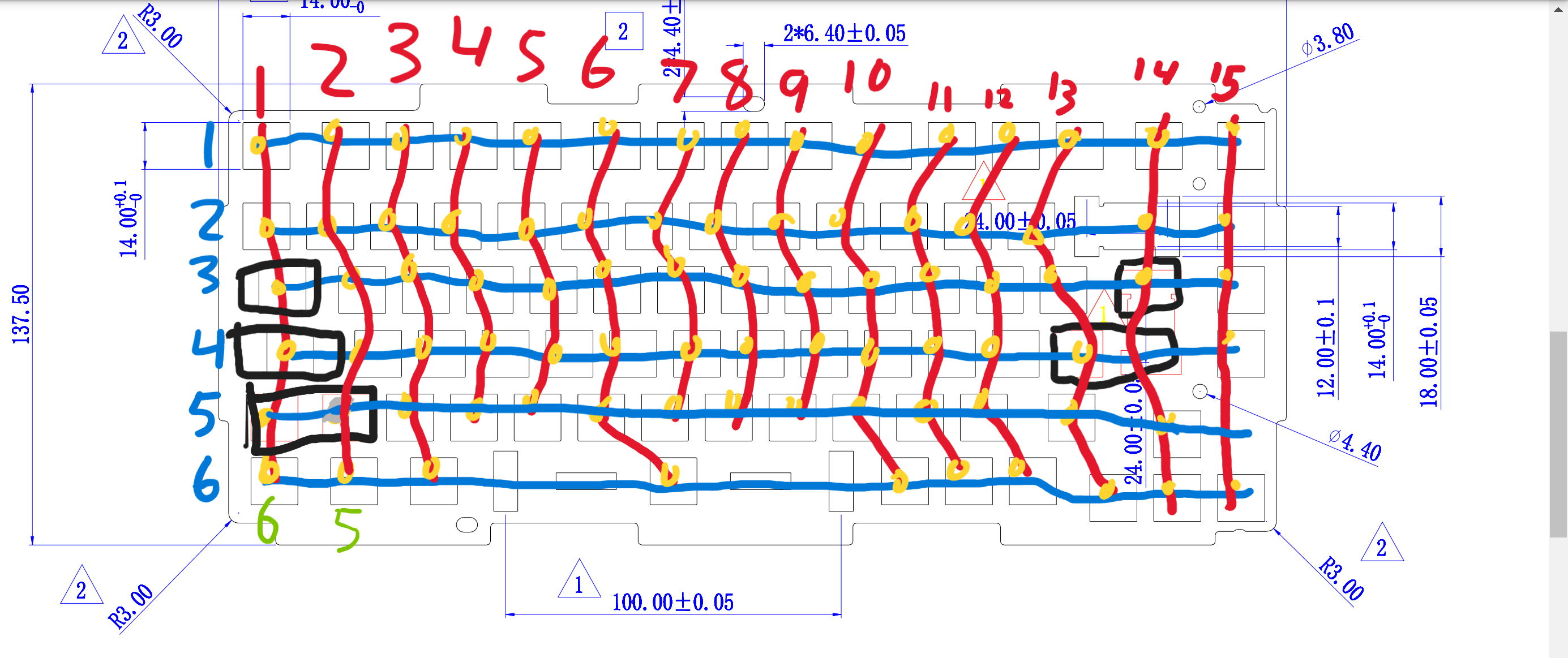

Normalpad, from the project README
From the project README

Main components on the Normalpad

Pico

Normalpad bill of materials (BOM)

165 components, 9 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Pico
U1
71
SW_Push_45deg
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +63
1
SW_Push_45deg
SW29
2
SW_Push_45deg
SW31, SW44
2
SW_Push_45deg
SW46, SW71
2
SW_Push_45deg
SW58, SW60
3
SW_Push_45deg
SW73, SW74, SW75
1
SW_Push_45deg
SW76
82
D
D1, D2, D3, D4, D5, D6, D7, D8 +74

Normalpad design files

The KiCad project lives in the nathantsai1/normalpad repository on GitHub; these links point at the commit this page was built from.

Normalpad: common questions

What microcontroller does the Normalpad use?

The Normalpad is built around the Pico, from the RP2040/RP2350 family.

How big is the Normalpad PCB?

The Normalpad measures 335 × 132.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Normalpad?

165 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Normalpad design files?

From the nathantsai1/normalpad repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Normalpad design in my own project?

The repository has no license, so all rights stay with nathantsai1. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Normalpad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
