PWM-H-Bridge
About the PWM-H-Bridge PCB
PWM-H-Bridge is an open source PCB design by NealEhardt, published on GitHub. It is a 2-layer board measuring 70 × 71 mm, with 35 components from 17 distinct parts.
Other key parts include the IR2113, TLC555, 4049 and L7805. By type, the board carries 12 capacitors, 8 resistors, 5 ICs, 4 transistors, 3 connectors and 2 diodes.
It belongs with the iot & wireless designs in this gallery.
From the project
PCB for wireless power transmission

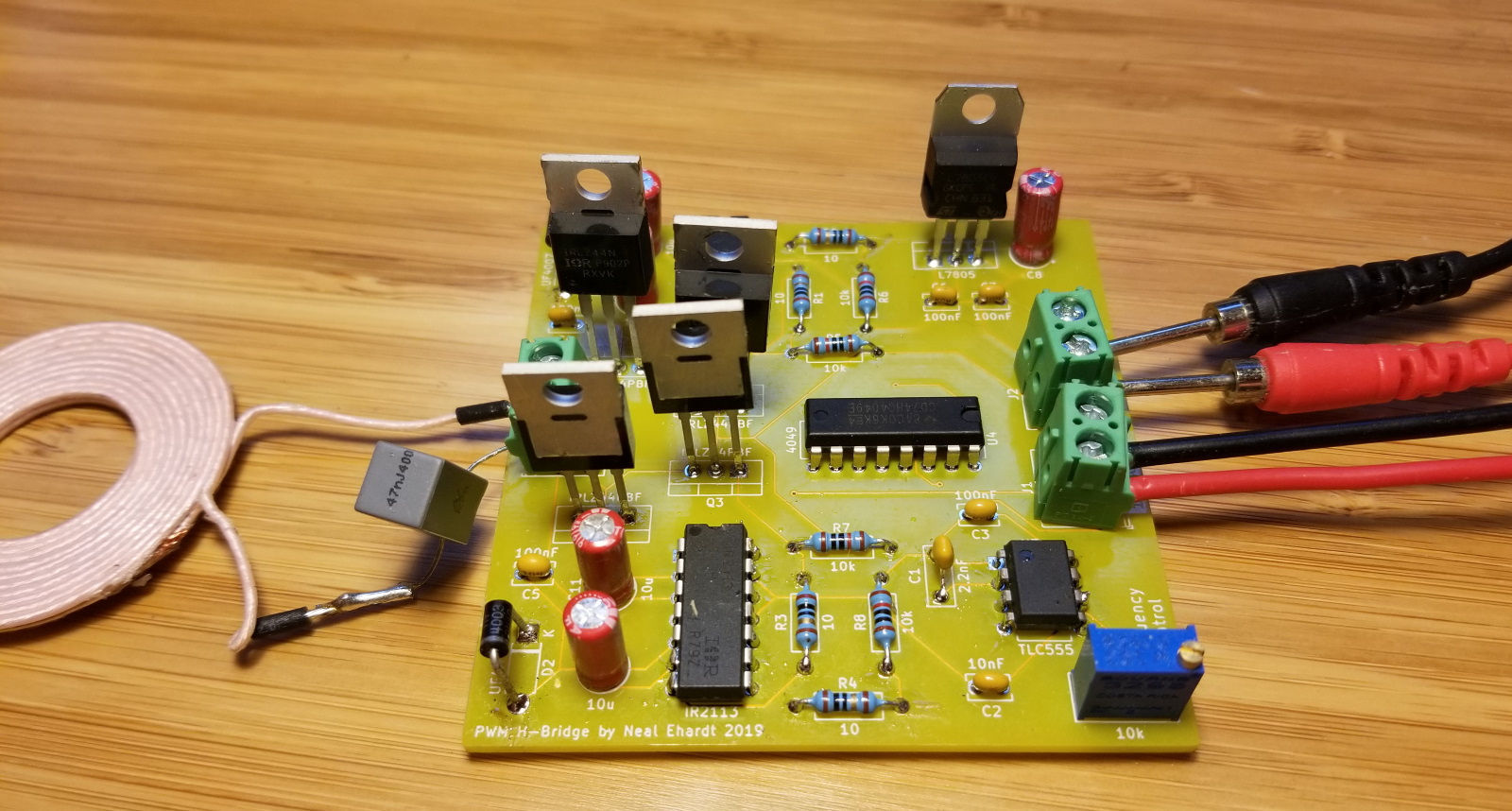

This repository includes the KiCad project and Gerber files for a PCB that converts DC➡AC to transmitt wireless power through a coil. It generates a PWM signal in the KHz range to control an H-bridge. Frequency is adjustible with a knob.
This repo contains rev. 2 which is nearly identical to the above image, except I fixed an issue where the diodes were reversed.
Main components on the PWM-H-Bridge
PWM-H-Bridge bill of materials (BOM)
35 components, 17 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | IR2113 | DIP-14_W7.62mm | U1, U2 |
| 1 | TLC555 | DIP-8_W7.62mm | U3 |
| 1 | 4049 | DIP-16_W7.62mm | U4 |
| 1 | L7805 | TO-220-3_Vertical | U5 |
| 4 | IRLZ44NPBF | TO-220-3_Vertical | Q1, Q2, Q3, Q4 |
| 1 | 12VDC | TerminalBlock_Phoenix_PT-1,5-2-5.0-H_1x02_P5.00mm_Horizontal | J1 |
| 1 | VCC | TerminalBlock_Phoenix_PT-1,5-2-5.0-H_1x02_P5.00mm_Horizontal | J2 |
| 1 | Coil | TerminalBlock_Phoenix_PT-1,5-2-5.0-H_1x02_P5.00mm_Horizontal | J3 |
| 1 | 10k | Potentiometer_Bourns_3296W_Vertical | RV1 |
| 2 | UF4007 | D_DO-41_SOD81_P7.62mm_Horizontal | D1, D2 |
| 1 | 2.2nF | C_Rect_L7.0mm_W2.5mm_P5.00mm | C1 |
| 1 | 10nF | C_Rect_L4.0mm_W2.5mm_P2.50mm | C2 |
| 5 | 100nF | C_Rect_L4.0mm_W2.5mm_P2.50mm | C3, C4, C5, C6, C7 |
| 1 | 47u | CP_Radial_D5.0mm_P2.00mm | C8 |
| 4 | 10u | CP_Radial_D5.0mm_P2.00mm | C9, C10, C11, C12 |
| 4 | 10 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1, R2, R3, R4 |
| 4 | 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R5, R6, R7, R8 |
PWM-H-Bridge design files
The KiCad project lives in the NealEhardt/PWM-H-Bridge repository on GitHub; these links point at the commit this page was built from.
- LayoutPWM-H-Bridge.kicad_pcb
PWM-H-Bridge: common questions
How big is the PWM-H-Bridge PCB?
The PWM-H-Bridge measures 70 × 71 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PWM-H-Bridge?
35 components, from 17 distinct parts. The full bill of materials is listed on this page.
Where can I download the PWM-H-Bridge design files?
From the NealEhardt/PWM-H-Bridge repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the PWM-H-Bridge design in my own project?
The repository has no license, so all rights stay with NealEhardt. Use it as a reference, and ask the author before reusing the design.
