Usb2 PCB layout, top view — open source STM32 board by neuroidss

About the Usb2 PCB

Usb2 is an open source STM32 PCB design by neuroidss, published on GitHub under the AGPL-3.0 license. It is a 2-layer board measuring 99.1 × 99.1 mm, with 185 components from 27 distinct parts.

Its main chip is the STM32H743ZIT6U, from the STM32 family. Other key parts include the AD7771BCPZ, LP5907QMFX-3.3Q1, ADR4525BRZ, CB3LV-3I-8M1920 and LSM6DSOXTR. By type, the board carries 122 capacitors, 44 connectors, 16 ICs, 2 diodes and 1 transformer.

From the project

as FreeEEG32 plus alpha1.5 test passed, FreeEEG32 project changed to beta version

Docker container setup (Linux). Extract the following and run: - Compilation: ./gcc-arm-none-eabirun.sh - Flashing: sudo ./openocdflash.sh

The AC6 stuff is deprecated but the blue pill is still needed.

Assembly: https://github.com/neuroidss/FreeEEG32-beta/blob/master/AssemblyFiles/KiCAD/out/assembly.zip

BOM: https://github.com/neuroidss/FreeEEG32-beta/blob/master/AssemblyFiles/bom/components%20FreeEEG32%20beta.csv

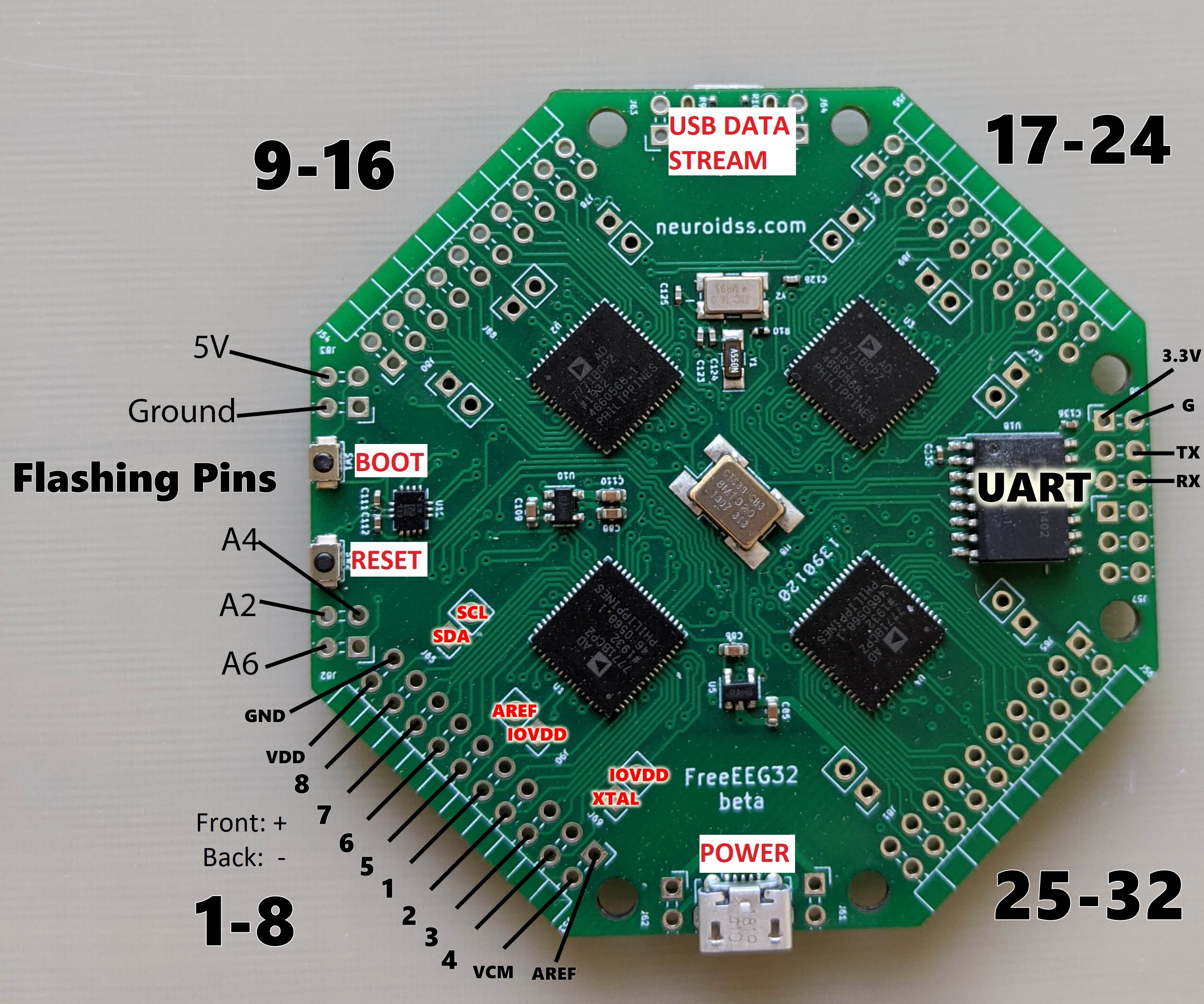

Usb2, from the project README
From the project README

Main components on the Usb2

Usb2 bill of materials (BOM)

185 components, 27 distinct parts — part numbers from the project's BOM.

QtyPartRefs
4
AD7771BCPZ
AD7779
U1, U2, U3, U4
3
LP5907QMFX-3.3Q1
LP5907
U5, U6, U10
1
ADR4525BRZ
ADR4525
U7
1
CB3LV-3I-8M1920
FXO-SM7_OSC-SMD7050_short
U8
1
STM32H743ZIT6U
STM32F765ZITx
U9
1
LSM6DSOXTR
LSM6DS3
U11
1
SN6505BDBVR
SN6505A
U12
1
47352-1001
473521001
U13
3
ISO7341c
U14, U15, U16
16
Conn_02x08_Odd_Even
J1, J2, J3, J4, J5, J6, J7, J8 +8
8
Conn_01x03
J17, J18, J19, J20, J29, J30, J32, J33
5
Conn_01x04
J21, J22, J31, J34, J38
4
Conn_01x02
J23, J24, J35, J36
4
Conn_02x18_Odd_Even
J25, J26, J27, J28
1
105017-1001
Conn_01x05
J37
6
Conn_02x04_Odd_Even
J39, J40, J41, J42, J43, J44
1
750315371
da2303
T1
2
MBR0520LT1G
D_Schottky
D1, D2
58
CL05B104KO5NNNC
100n
C1, C3, C7, C9, C11, C13, C14, C15 +50
28
CL05A105KO5NNNC
1u
C2, C4, C8, C10, C12, C16, C21, C23 +20
Show 7 more
QtyPartRefs
9
CL05B104KO5NNNC
100n
C5, C17, C26, C38, C47, C59, C68, C80 +1
8
CL05A105KO5NNNC
1u
C6, C18, C27, C39, C48, C60, C69, C81
8
GRM188R71A225KE15D
2.2u
C85, C86, C87, C88, C100, C104, C109, C110
1
GRM21BR60J226ME39L
22u
C90
3
GRM188R60J106ME47D
10u
C92, C113, C115
6
100n
C116, C117, C118, C119, C120, C121
1
C0603C475K9PACTU
4.7u
C122

Usb2 design files

The KiCad project lives in the neuroidss/FreeEEG32-beta repository on GitHub; these links point at the commit this page was built from.

Usb2: common questions

What microcontroller does the Usb2 use?

The Usb2 is built around the STM32H743ZIT6U, from the STM32 family.

How big is the Usb2 PCB?

The Usb2 measures 99.1 × 99.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Usb2?

185 components, from 27 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Usb2 design files?

From the neuroidss/FreeEEG32-beta repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Usb2 design in my own project?

Yes, under the terms of its AGPL-3.0 license, which neuroidss chose for the repository.

Can I test firmware for the Usb2 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
