Waveblaster to midi module adapter
nikitalita·Waveblaster-to-midi-module-adapter·kicad/waveblaster-to-midi-module.kicad_pcb
About the Waveblaster to midi module adapter
Waveblaster to midi module adapter is an open source PCB design by nikitalita, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 33 × 94.5 mm, with 6 components from 5 distinct parts.
By type, the board carries 4 connectors and 2 resistors.
It belongs with the audio and dev boards & breakouts designs in this gallery.
From the project

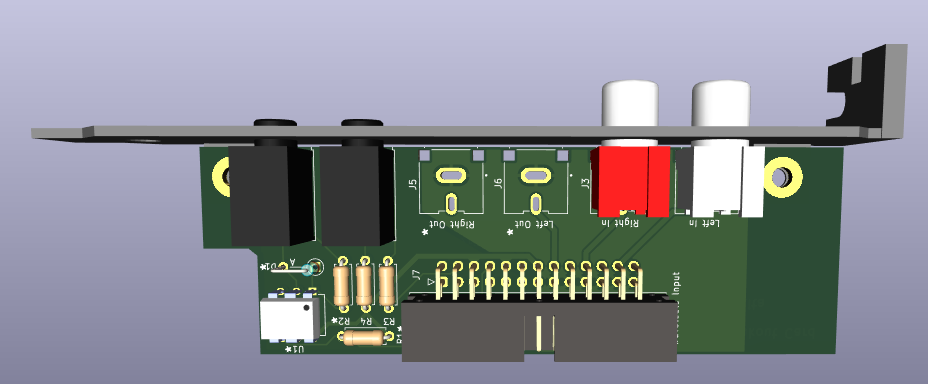

Waveblaster header to midi module adapter. Allows the use of external midi modules on sound cards with waveblaster headers. Provides MIDI out and Audio input.
For the header, you also can just use 2.54mm pitch double row right angle header pins. For the resistors, just buy a through-hole resistor sample book on Amazon or something.
If you want to add on the midi in port (most sound cards do not have this connected), add:
- 1x H11L1M optocoupler : https://www.mouser.com/ProductDetail/onsemi-Fairchild/H11L1M - 1x 220 Ohm THT Resistor - 1x 280 Ohm THT Resistor - 1x 1N4148 THT Diode: https://www.mouser.com/ProductDetail/onsemi-Fairchild/1N4148

Waveblaster to midi module adapter bill of materials (BOM)
6 components, 5 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Midi Out | Jack_3.5mm_CUI_SJ1-3533NG_Horizontal | J1 |
| 1 | Right In | CUI_RCJ-04X | J3 |
| 1 | Left In | CUI_RCJ-043 | J4 |
| 1 | Wavetable Input | IDC-Header_2x13_P2.54mm_Horizontal-reversed | J7 |
| 2 | 220R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R3, R4 |
Waveblaster to midi module adapter design files
The KiCad project lives in the nikitalita/Waveblaster-to-midi-module-adapter repository on GitHub; these links point at the commit this page was built from.
Waveblaster to midi module adapter: common questions
How big is the Waveblaster to midi module adapter?
The Waveblaster to midi module adapter measures 33 × 94.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Waveblaster to midi module adapter?
6 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Waveblaster to midi module adapter design files?
From the nikitalita/Waveblaster-to-midi-module-adapter repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Waveblaster to midi module adapter design in my own project?
Yes, under the terms of its Apache-2.0 license, which nikitalita chose for the repository.
