Rhino PCB layout, top view — open source AVR/Arduino board by Nu-hin

About the Rhino PCB

Rhino is an open source AVR/Arduino PCB design by Nu-hin, published on GitHub. It is a 2-layer board measuring 160 × 58 mm, with 74 components from 38 distinct parts.

Its main chip is the ATMEGA8-P, from the AVR/Arduino family. Other key parts include the 74HC595 and L293NE. By type, the board carries 19 diodes, 16 resistors, 11 capacitors, 7 connectors, 3 ICs and 2 inductors.

It belongs with the robotics & motion and sensors designs in this gallery.

From the project

Rhino robot schematics, PCBs and firmware

Rhino is a robot based on AVR ATmega microcontroller.

it runs on AVR ATmega8 microcontroller; it moves around on cool tank tracks; it has 3 different sensors: ultrasonic distance sensor, lightning sensor, 3-axis accelerometer (as a removable module); it has a Bluetooth serial module (removable); it has 4 bright white LEDs to light its way; it has three general-purpose LED indicators (red, green, blue); it can produce an irritating sound; it has a potentiometer (to adjust continuous parameters) and a general-purpose button (to adjust discrete ones); * it runs on 4 AA accumulators.

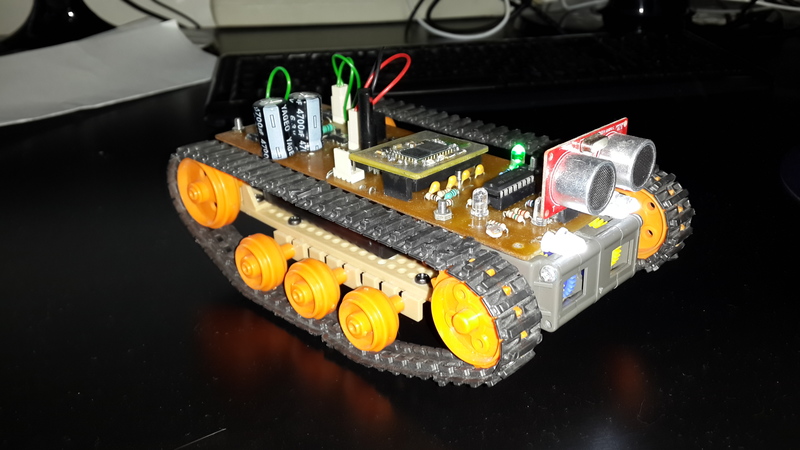

Rhino, from the project README
From the project README

Main components on the Rhino

ATMEGA8-P74HC595L293NE

Rhino bill of materials (BOM)

74 components, 38 distinct parts.

QtyPartRefs
1
ATMEGA8-P
IC1
1
74HC595
U1
1
L293NE
U2
1
NPN
Q1
1
CRYSTAL
X1
1
CONN_2
P1
1
CONN_3X2
P2
1
CONN_1
P3
4
CONN_1
P8, P9, P10, P11
1
P***
1PIN
2
CONN_3
AUX1, PING1
1
CONN_4
BT1
2
PUSH_BUTTON4
BTN1, BTN_RST1
1
CONN_4
GROVE1
1
JUMPER
JP1
2
CONN_2
MOT1, MOT2
1
POT
RV1
1
SPEAKER
SP1
1
SWITCH_6PIN
SW1
1
PHOTORESISTOR
TH1
Show 18 more
QtyPartRefs
1
DIODESCH
D1
2
GREEN
D2, D4
1
BLUE
D3
2
RED
D5, D10
4
WHITE
D6, D7, D8, D9
9
DIODE
D11, D12, D13, D14, D15, D16, D17, D18 +1
2
INDUCTOR
L1, L2
1
105
C2
2
4.7mF
C3, C4
2
103
C5, C6
2
220
C7, C10
4
104
C8, C9, C11, C12
2
200
R1, R3
5
140
R2, R5, R6, R7, R8
2
220
R4, R9
5
10K
R10, R11, R12, R13, R14
1
330
R15
1
180
R16

Rhino design files

The KiCad project lives in the Nu-hin/rhino repository on GitHub; these links point at the commit this page was built from.

Rhino: common questions

What microcontroller does the Rhino use?

The Rhino is built around the ATMEGA8-P, from the AVR/Arduino family.

How big is the Rhino PCB?

The Rhino measures 160 × 58 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Rhino?

74 components, from 38 distinct parts. The full bill of materials is listed on this page.

Where can I download the Rhino design files?

From the Nu-hin/rhino repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Rhino design in my own project?

The repository has no license, so all rights stay with Nu-hin. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Rhino without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
