Stm32-bt board layout, top view — open source STM32 board by OdaiJ

About the Stm32-bt board

Stm32-bt board is an open source STM32 PCB design by OdaiJ, published on GitHub. It is a 4-layer board measuring 48 × 33 mm, with 53 components from 26 distinct parts.

Its main chip is the S9013-E, from the STM32 family. Other key parts include the MIC5365-3.3YD5-TR, USBLC6-2SC6 and STM32WB55CEU6. By type, the board carries 21 capacitors, 13 resistors, 4 ICs, 3 connectors, 3 diodes and 3 inductors.

It belongs with the iot & wireless designs in this gallery.

From the project

My attempt at following the Phil's Lab KiCad V7 tutorial on YouTube

A demo board I made as a project to learn PCB design fundamentals. The board is missing some key features that make it general purpose; like headers for the unused MCU pins, however, it was a fun little project that took me a few months :)

This board was designed according to Phil's Lab's amazing videos on YouTube.

Click here to view it on [](https://kicanvas.org/?repo=https%3A%2F%2Fgithub.com%2FOdaiJ%2Fstm32-bt-board%2Fblob%2Fmain%2Fkicad%2Fstm32-bt-board.kicad_pro)

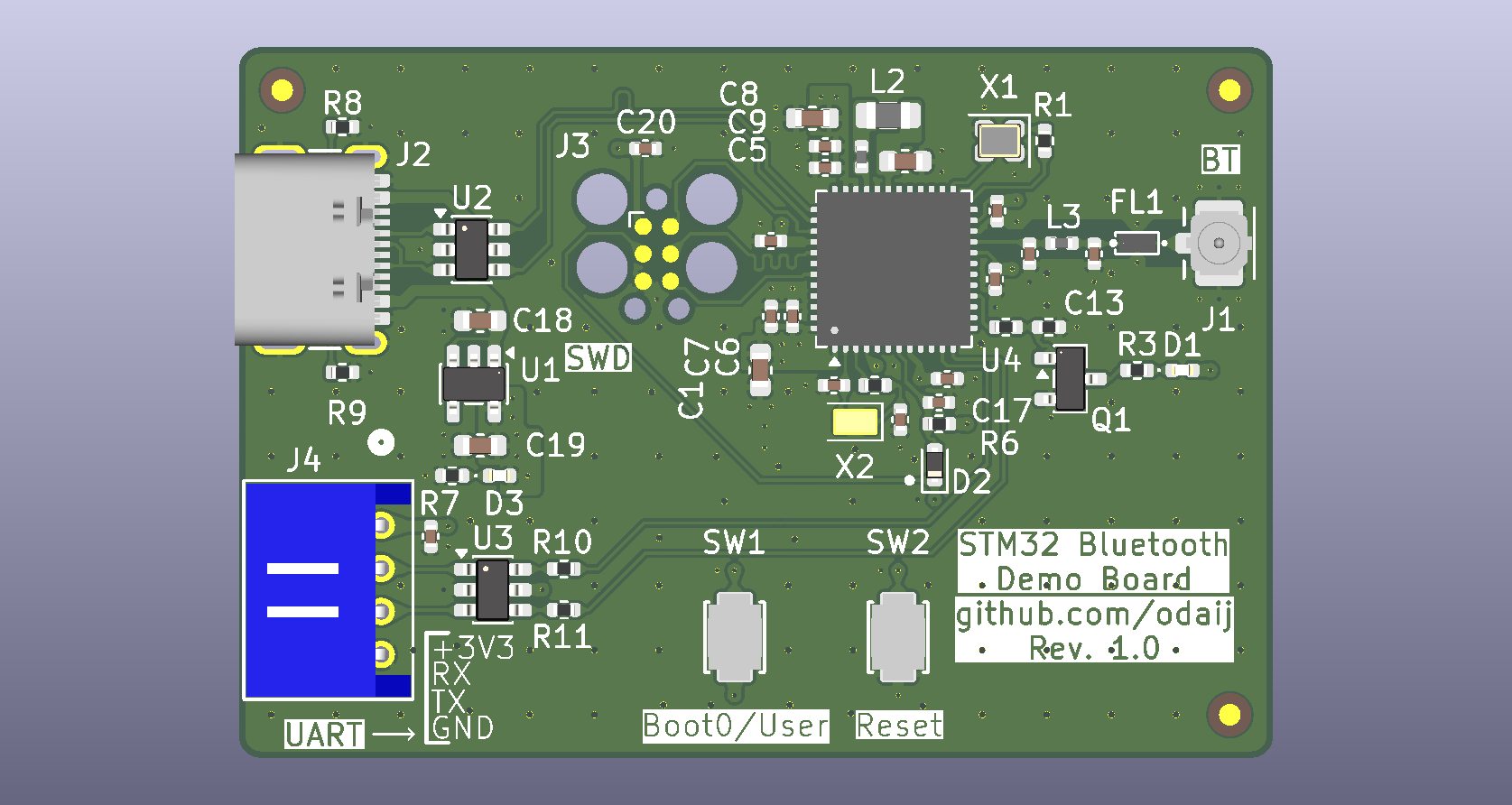

Stm32-bt board, from the project README
From the project README

Main components on the Stm32-bt board

MIC5365-3.3YD5-TRUSBLC6-2SC6STM32WB55CEU6

Stm32-bt board bill of materials (BOM)

53 components, 26 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MIC5365-3.3YD5-TR
MIC5365-3.3YD5
MICROCHIP
U1
2
USBLC6-2SC6
ST
U2, U3
1
STM32WB55CEU6
ST
U4
1
S9013-E
MDD(Microdiode Semiconductor)
Q1
1
NX2016SA-32MHZ-EXS00A-CS06654
32MHZ
NDK
X1
1
NX2012SA-32.768KHZ-STD-MUB-2
32KHZ768
NDK
X2
1
1909763-1
TE Connectivity
J1
1
2171790001
MOLEX
J2
1
S4B-PH-K-S(LF)(SN)
JST
J4
1
DLF162500LT-5028A1
TDK
FL1
2
B3U-1000P
OMRON
SW1, SW2
1
VLMB1500-GS08
VISHAY
D1
1
BAT54KFILM
BAT54K
ST
D2
1
VLMS1500-GS08
VISHAY
D3
1
LQG15WZ10NJ02D
10n
muRata
L1
1
LQM21FN100M80L
10u
muRata
L2
1
LQG15HS2N7S02D
2n7
muRata
L3
5
CL10A475KL8NRNC
4u7
Samsung Electro-Mechanics
C1, C8, C11, C18, C19
12
CC0402KRX7R7BB104
100n
YAGEO
C2, C3, C4, C5, C6, C7, C9, C10 +4
1
GRM1555C1HR80BA01D
0p8
muRata
C12
Show 6 more
QtyPartRefs
1
GRM1555C1HR30WA01D
0p3
muRata
C13
2
GRM1555C1H100FA01D
10p
muRata
C14, C15
3
CRCW04020000Z0ED
0R
VISHAY
R1, R2, R3
4
FRC0402F2200TS
220R
FOJAN
R4, R7, R10, R11
5
RC0402FR-075K1L
5k1
YAGEO
R5, R8, R9, R13, R16
1
RC0402FR-07100KL
100k
YAGEO
R6

Stm32-bt board design files

The KiCad project lives in the OdaiJ/stm32-bt-board repository on GitHub; these links point at the commit this page was built from.

Stm32-bt board: common questions

What microcontroller does the Stm32-bt board use?

The Stm32-bt board is built around the S9013-E, from the STM32 family.

How big is the Stm32-bt board?

The Stm32-bt board measures 48 × 33 mm, has 4 copper layers and is 1.5842 mm thick.

How many components are on the Stm32-bt board?

53 components, from 26 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Stm32-bt board design files?

From the OdaiJ/stm32-bt-board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Stm32-bt board design in my own project?

The repository has no license, so all rights stay with OdaiJ. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Stm32-bt board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
