1KVA-SINE-WAVE-POWER-INVERTER PCB layout, top view — open source AVR/Arduino board by Ogbonna-Joseph

About the 1KVA-SINE-WAVE-POWER-INVERTER PCB

1KVA-SINE-WAVE-POWER-INVERTER is an open source AVR/Arduino PCB design by Ogbonna-Joseph, published on GitHub. It is a 2-layer board measuring 111.1 × 44.5 mm, with 33 components from 22 distinct parts.

Its main chip is the ATmega328-PU, from the AVR/Arduino family. Other key parts include the L7805. By type, the board carries 10 transistors, 7 capacitors, 4 diodes, 3 resistors, 2 ICs and 2 connectors.

It belongs with the power & battery designs in this gallery.

From the project

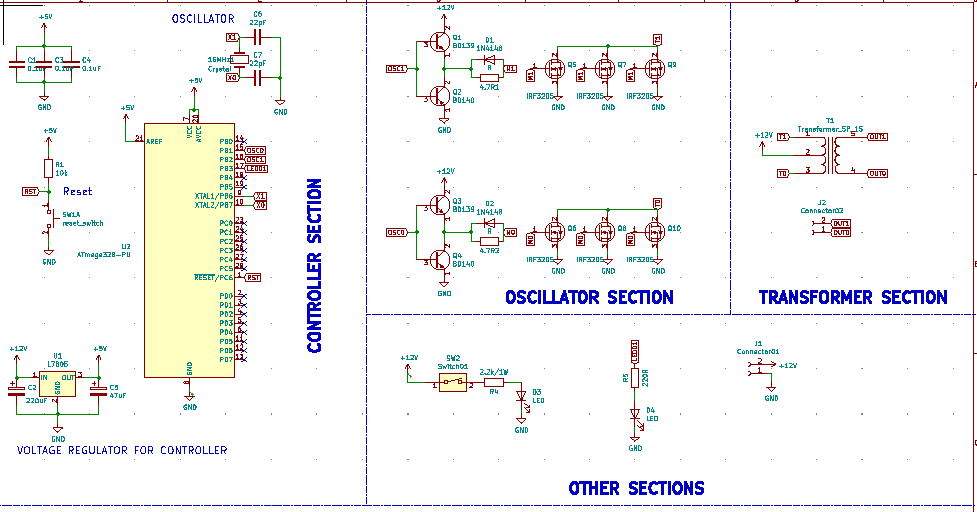

This is a design of a sine wave power inverter, which can be used in your homes and offices.

IN the design the Inverter converts 12v/24v to 220volts.

1KVA-SINE-WAVE-POWER-INVERTER, from the project README
From the project README

Main components on the 1KVA-SINE-WAVE-POWER-INVERTER

L7805ATmega328-PU

1KVA-SINE-WAVE-POWER-INVERTER bill of materials (BOM)

33 components, 22 distinct parts.

QtyPartRefs
1
L7805
U1
1
ATmega328-PU
U2
2
BD139
Q1, Q3
2
BD140
Q2, Q4
6
IRF3205
Q5, Q6, Q7, Q8, Q9, Q10
1
Connector01
J1
1
Connector02
J2
2
R
4.7R1, 4.7R2
1
Crystal
16MHz1
1
reset_switch
SW1
1
Switch01
SW2
2
1N4148
D1, D2
1
LED
D3
1
LED
D4
1
0.1uF
C1
1
220uF
C2
2
0.1uF
C3, C4
1
47uF
C5
2
22pF
C6, C7
1
10k
R1
Show 2 more
QtyPartRefs
1
2.2k/1W
R4
1
220R
R5

1KVA-SINE-WAVE-POWER-INVERTER design files

The KiCad project lives in the Ogbonna-Joseph/1KVA-SINE-WAVE-POWER-INVERTER repository on GitHub; these links point at the commit this page was built from.

1KVA-SINE-WAVE-POWER-INVERTER: common questions

What microcontroller does the 1KVA-SINE-WAVE-POWER-INVERTER use?

The 1KVA-SINE-WAVE-POWER-INVERTER is built around the ATmega328-PU, from the AVR/Arduino family.

How big is the 1KVA-SINE-WAVE-POWER-INVERTER PCB?

The 1KVA-SINE-WAVE-POWER-INVERTER measures 111.1 × 44.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 1KVA-SINE-WAVE-POWER-INVERTER?

33 components, from 22 distinct parts. The full bill of materials is listed on this page.

Where can I download the 1KVA-SINE-WAVE-POWER-INVERTER design files?

From the Ogbonna-Joseph/1KVA-SINE-WAVE-POWER-INVERTER repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the 1KVA-SINE-WAVE-POWER-INVERTER design in my own project?

The repository has no license, so all rights stay with Ogbonna-Joseph. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the 1KVA-SINE-WAVE-POWER-INVERTER without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
