Radio

ojousima·thesis·hardware/radio/radio.kicad_pcb

Radio PCB layout, top view — open source AVR/Arduino board by ojousima
Simulate this board

About the Radio PCB

Radio is an open source AVR/Arduino PCB design by ojousima, published on GitHub under the Custom license license. It is a 4-layer board measuring 35 × 41 mm, with 74 components from 26 distinct parts.

Its main chip is the ATMEGA328-A, from the AVR/Arduino family. Other key parts include the LTC3331, BLE113, SN74AUP1T32 and ADXL375. By type, the board carries 28 resistors, 18 capacitors, 5 ICs, 4 connectors, 3 inductors and 2 transistors.

It belongs with the rf & radio designs in this gallery.

From the project

My Master's thesis, submitted for review. Submitted version is in commit af3c147e

PCB designs are licensed under CERN OHL 1.2, please see LICENSE.md for details.

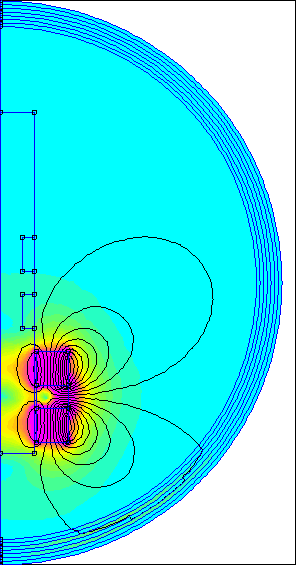

My personal favourite piece of work during the thesis was making animations of magnetic fields using a magnetics FEA software FEMM. Lua scripts were used to step parameters of the simulation and exporting images of fields strenghts. Finally convert was used to create animations from the images. for example convert -delay 12 -loop 0 magnet.bmp animated.gif` .

Radio, from the project README
From the project README

Main components on the Radio

ATMEGA328-ALTC3331BLE113SN74AUP1T32ADXL375

Radio bill of materials (BOM)

74 components, 26 distinct parts.

QtyPartRefs
1
ATMEGA328-A
IC301
1
LTC3331
U201
1
BLE113
U401
1
SN74AUP1T32
U501
1
ADXL375
U502
2
BSH105
Q201, Q301
1
8MHz
X301
1
CONN_01X04
P101
1
CONN_02X03
P102
1
CONN_02X05
P103
1
CONN_01X02
P104
1
Battery
BT201
7
TEST
W1, W2, W3, W4, W7, W9, W201
3
TEST
W5, W6, W8
1
TVS
D201
1
LED
D301
1
FILTER
FB501
2
INDUCTOR
L201, L202
1
1µ
C201
5
C
C202, C203, C204, C207, C306
Show 6 more
QtyPartRefs
6
100n
C205, C301, C302, C305, C501, C502
1
4u7
C206
2
22p
C303, C304
3
470n
C401, C402, C403
26
R
R1, R2, R3, R4, R5, R6, R201, R202 +18
2
10k
R301, R401

Radio design files

The KiCad project lives in the ojousima/thesis repository on GitHub; these links point at the commit this page was built from.

Radio: common questions

What microcontroller does the Radio use?

The Radio is built around the ATMEGA328-A, from the AVR/Arduino family.

How big is the Radio PCB?

The Radio measures 35 × 41 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Radio?

74 components, from 26 distinct parts. The full bill of materials is listed on this page.

Where can I download the Radio design files?

From the ojousima/thesis repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Radio design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.

Can I test firmware for the Radio without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
