PICO-EVB

OLIMEX·PICO-EVB·HARDWARE/PICO-EVB_Rev_A/PICO-EVB_Rev_A.kicad_pcb

PICO-EVB PCB layout, top view — open source board by OLIMEX

About the PICO-EVB PCB

PICO-EVB is an open source PCB design by OLIMEX, published on GitHub under the MIT license. It is a 2-layer board measuring 100 × 70 mm, with 91 components from 30 distinct parts.

Other key parts include the TPS2116. By type, the board carries 27 resistors, 10 capacitors, 9 LEDs, 9 diodes, 4 transformers and 1 IC.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Raspberry PICO/PICO-W evaluation board with optoisolated inputs 3.3-30VDC or 110-220VAC and Four Relays 15A/240VAC

https://www.olimex.com/Products/RaspberryPi/PICO/PICO-EVB/

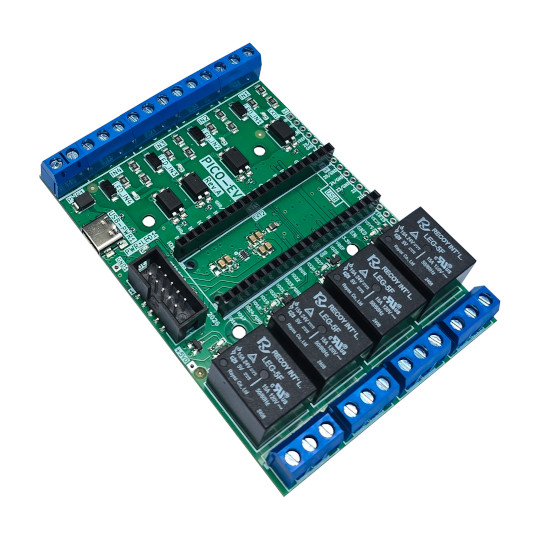

PICO-EVB, from the project README
From the project README

Main components on the PICO-EVB

TPS2116

PICO-EVB bill of materials (BOM)

91 components, 30 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TPS2116
U1
2
TESTPAD
+5V0, GND1
4
DG306-5.0-3P
CON_REL1, CON_REL2, CON_REL3, CON_REL4
1
NA(HN1x18)
EXT1
2
PN1X20
PN1x20
EXT2, EXT3
4
DG306-5.0-3P
IN1, IN2, IN3, IN4
2
Mounting_Hole
MH1, MH2
4
Mounting_Hole
MH3, MH4, MH5, MH6
4
PC817CS_CYPC817(C-TP2)
OPT1, OPT2, OPT3, OPT4
1
DG306-5.0-2P
PWR1
4
RAS-0515
REL1, REL2, REL3, REL4
4
LMUN2235LT1G(SOT-23)
T1, T2, T3, T4
1
P-B-V-10-LF
UEXT1
1
USB-C-16P-F(A40-00119-A52-12)
USB-PWR1
4
LED/GREEN/0603
LED1, LED2, LED3, LED4
5
LED/RED/0603
LED_IN1, LED_IN2, LED_IN3, LED_IN4, PWR_LED1
4
1N4148W(SOD-123)
D1, D2, D7, D8
4
1N4007/SMA
D3, D4, D5, D6
1
SMBJ6.0A
D9
1
FB0805/600R/2A
L1
Show 10 more
QtyPartRefs
1
NA(47uF/6.3V/20%/X5R/C0805)
C1
6
47uF/6.3V/20%/X5R/C0805
C2, C3, C6, C8, C9, C10
3
100nF/10V/20%/X5R/C0402
C4, C5, C7
8
150K/R1206
150k/R1206
R1, R3, R5, R7, R11, R12, R13, R14
4
3.9K/R1206
3.9k/R1206
R2, R4, R6, R8
7
2.2K/R0402
2.2k/R0402
R9, R10, R17, R18, R23, R26, R27
1
24.9k/1%/R0402
R15
1
6.81k/1%/R0402
R16
4
47K/R0402
47k/R0402
R19, R20, R21, R22
2
5.1k/1%/R0402
R24, R25

PICO-EVB design files

The KiCad project lives in the OLIMEX/PICO-EVB repository on GitHub; these links point at the commit this page was built from.

PICO-EVB: common questions

How big is the PICO-EVB PCB?

The PICO-EVB measures 100 × 70 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PICO-EVB?

91 components, from 30 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the PICO-EVB design files?

From the OLIMEX/PICO-EVB repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the PICO-EVB design in my own project?

Yes, under the terms of its MIT license, which OLIMEX chose for the repository.
