About the RP2040-PICO30 PCB

RP2040-PICO30 is an open source RP2040/RP2350 PCB design by OLIMEX, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 21 × 51 mm, with 55 components from 29 distinct parts.

Its main chip is the RP2040(QFN-56_7x7mm_P0.4mm), from the RP2040/RP2350 family. Other key parts include the ZD25Q16BTIGT(SOIC-8_208mils) and SY8089AAAC(SOT23-5). By type, the board carries 19 capacitors, 16 resistors, 3 ICs, 1 transistor, 1 LED and 1 diode.

From the project

RP2040-PICO re-design with all 30 GPIO available

RP2040-PICO30 is Open Source Harrdware re-design of original RP2040-PICO from Rqaspberry Pi

RP2040 CortexM0 microcontroller RP2040-PICO pinout and dimentions SY8089A 3.3V 2A (3A peak) DCDC power supply 30 GPIOs available to the user USB-C High Speed USB 2.0 connector for powering the board and communication Boot button RESET button 2MB or 16MB Flash Optional UEXT connector (U version) Optional status LED (U version) * Dimensions 51 x 21 mm

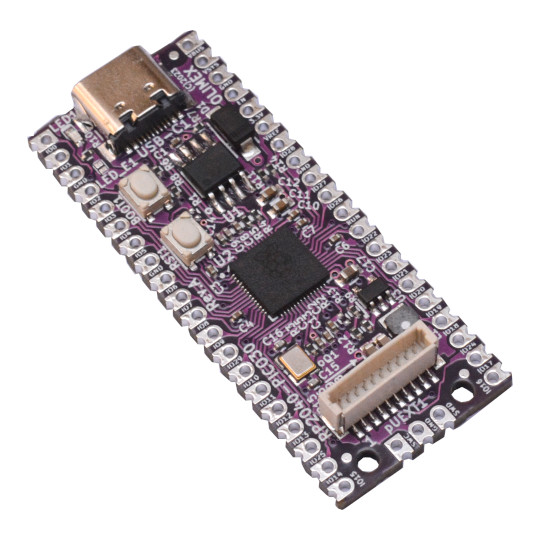

RP2040-PICO30, from the project README — From the project README

Main components on the RP2040-PICO30

ZD25Q16BTIGT(SOIC-8_208mils)RP2040(QFN-56_7x7mm_P0.4mm)SY8089AAAC(SOT23-5)

RP2040-PICO30 bill of materials (BOM)

55 components, 29 distinct parts.

Qty	Part	Footprint	Refs
1	ZD25Q16BTIGT(SOIC-8_208mils)	SO-8_208mil	U1
1	RP2040(QFN-56_7x7mm_P0.4mm)	QFN56_7x7_Pitch_0.4mm	U2
1	SY8089AAAC(SOT23-5)	SOT-23-5	U3
1	Q12MHz/20pF/10ppm/4P/3.2x2.5mm	TSX-3.2x2.5mm_GND(3)	Q1
2	YTS-A016-X	YTS-A016-X	BOOT1, RST1
4	NA(HN1x20)	HN1x20	EXT1, EXT2, EXT5, EXT6
2	NA(HN1x3)	HN1x3	EXT3, EXT4
1	Opened	SJ_1_SMALLER	LED_E1
2	Mounting_Hole_NPTH	Mounting_Hole_Drill-2.1mm_Clerance-4mm	MH1, MH2
1	USB-C-16P-F(A40-00119-A52-12)	USB2.0_TYPE-C(A40-00119-A52-12)	USB-C1
1	NA(SH1.0-10P-180D)	BM10B-SRSS-TB	pUEXT1
1	NA(LED/GREEN/0603)	LED_0603_KA	LED1
1	1N5822/SS34/SMA	SMA-KA	D1
1	2.2uH/1.5A/DCR=58mR/20%/3.00x3.00x1.50mm/CD32(NRS3015T2R2MNGH)	CD32	L1
12	100nF/10V/10%/X7R/C0402	C_0402_5MIL_DWS	C1, C2, C3, C4, C5, C6, C7, C8 +4
2	1uF/10V/20%/X5R/C0603	C_0603_5MIL_DWS	C11, C12
2	27pF/50V/5%/C0G/C0402	C_0402_5MIL_DWS	C15, C16
3	22uF/6.3V/20%/X5R/C0603	C_0603_5MIL_DWS	C17, C18, C19
1	10k/R0402	R_0402_5MIL_DWS	R1
1	NA(10k/R0402)	R_0402_5MIL_DWS	R2

Show 9 more

Qty	Part	Footprint	Refs
2	100R/R0402	R_0402_5MIL_DWS	R3, R8
2	27R/R0402	R_0402_5MIL_DWS	R4, R5
2	5.1k/R0402	R_0402_5MIL_DWS	R6, R7
1	1M/R0402	R_0402_5MIL_DWS	R9
3	NA(2.2k/R0402)	R_0402_5MIL_DWS	R10, R15, R16
1	200R/1%/R0402	R_0402_5MIL_DWS	R11
1	220k/R0402	R_0402_5MIL_DWS	R12
1	49.9k/1%/R0402	R_0402_5MIL_DWS	R13
1	1.3R/1%/R0402	R_0402_5MIL_DWS	R14

RP2040-PICO30 design files

The KiCad project lives in the OLIMEX/RP2040-PICO30 repository on GitHub; these links point at the commit this page was built from.

LayoutHARDWARE/RP2040-PICO30_Rev_A/RP2040-PICO30_Rev_A.kicad_pcb

RP2040-PICO30: common questions

What microcontroller does the RP2040-PICO30 use?

The RP2040-PICO30 is built around the RP2040(QFN-56_7x7mm_P0.4mm), from the RP2040/RP2350 family.

How big is the RP2040-PICO30 PCB?

The RP2040-PICO30 measures 21 × 51 mm, has 4 copper layers and is 1.5 mm thick.

How many components are on the RP2040-PICO30?

55 components, from 29 distinct parts. The full bill of materials is listed on this page.

Where can I download the RP2040-PICO30 design files?

From the OLIMEX/RP2040-PICO30 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the RP2040-PICO30 design in my own project?

Yes, under the terms of its GPL-3.0 license, which OLIMEX chose for the repository.
