About the Panel PCB
Panel is an open source PCB design by Ondulab, published on GitHub under the CERN-OHL-S-2.0 license. It is a 6-layer board measuring 210 × 41 mm, with 176 components from 58 distinct parts.
Other key parts include the U_0076, U_0131, U_0144, U_0134 and U_0081. By type, the board carries 86 capacitors, 50 resistors, 13 ICs, 10 inductors, 4 diodes and 3 transistors.
It belongs with the sensors and test & measurement designs in this gallery.
From the project
Electronic repo for image sensor module for CISYNTH

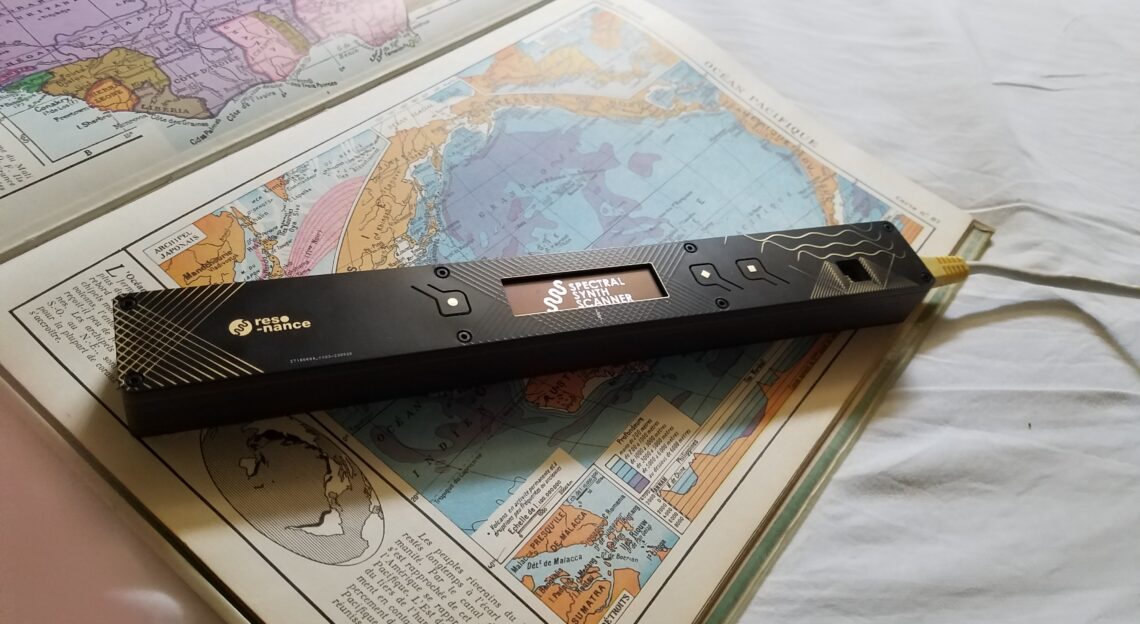

The CYSINTH is an innovative tangible interface for creating music and visuals. Utilizing our CIS instrument, the CISYNTH generates a UDP stream containing thousands of values captured by both the contact image sensor and the inertial measurement unit, transmitted at frequencies of up to 1kHz. This stream can be used to generate music or display image streams in Max/MSP, Pure Data, and our Viewer.

Main components on the Panel
Panel bill of materials (BOM)
176 components, 58 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | U_0076 | SOT_23-5 | U1 |
| 1 | U_0131 | UFBGA_176 | U2 |
| 2 | U_0144 | SOT_23-5 | U3, U9 |
| 1 | U_0134 | MSOP_16-1EP_3x4_P0.5 | U4 |
| 1 | U_0081 | DFN-8-1EP_2x2_P0.5 | U5 |
| 1 | U_0097 | TSSOP_14_4.4x5_P0.65 | U6 |
| 1 | U_0138 | SOP-8_5.28x5.23mm_P1.27mm | U7 |
| 1 | U_0133 | LGA-16_3x3mm_P0.5mm_LayoutBorder3x5y | U8 |
| 1 | U_0139 | LGA-14_3x2.5mm_P0.5mm_LayoutBorder3x4y | U10 |
| 1 | U_0101 | QFN-24-1EP_4x4mm_Pitch0.5mm | U14 |
| 2 | U_0049 | SOT_143 | U16, U17 |
| 3 | Q_0002 | SOT_323-SC_70 | Q1, Q2, Q3 |
| 1 | RJ45_ABRACON_ARJP11A-MASA-B-A-EMU2 RJ45_Abracon_ARJP11A-MASA-B-A-EMU2 | RJ45_Abracon_ARJP11A-MA_Horizontal | J2 |
| 1 | F_0002 | F_1206 | F1 |
| 1 | K_0073 | OLED256x64-2P1_HOLE_TE_3-2328724-1 | K1 |
| 1 | K_0072 | Molex_PicoBlade_53261-1271_1x12-1MP_P1.25mm_Horizontal | K2 |
| 1 | K_0100 | Tag-Connect_TC2030-IDC-FP_2x03_P1.27mm_Vertical | K3 |
| 3 | SW_0003 | PTS810 | SW1, SW2, SW3 |
| 2 | XO_0004 | 7M | XO1, XO2 |
| 3 | D_0001 | LED_0603-red | D1, D3, D4 |
Show 38 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | D_0021 | D_SOD-123 | D2 |
| 1 | L_0011 | L_4018-Coilcraft | L1 |
| 2 | L_0010 | L_0603 | L2, L7 |
| 5 | L_0017 | L_0603 | L3, L5, L8, L9, L10 |
| 1 | L_0002 | L_5030-Coilcraft | L4 |
| 1 | L_0018 | L_4018-Coilcraft | L6 |
| 33 | C_0002 | C_0402 | C1, C2, C3, C6, C8, C10, C12, C14 +25 |
| 8 | C_0003 | C_0603 | C4, C5, C9, C19, C46, C68, C71, C72 |
| 6 | C_0036 | C_0603 | C7, C11, C16, C30, C63, C64 |
| 10 | C_0044 | C_0402 | C13, C15, C18, C31, C41, C51, C69, C81 +2 |
| 4 | C_0043 | C_0402 | C17, C21, C22, C23 |
| 6 | C_0001 | C_0402 | C20, C37, C58, C59, C60, C61 |
| 1 | C_0014 | C_0402 | C24 |
| 6 | C_0040 | C_1210 | C25, C35, C48, C65, C67, C90 |
| 3 | C_0028 | C_0402 | C26, C27, C28 |
| 1 | C_0080 | C_0402 | C36 |
| 1 | C_0068 | C_0402 | C39 |
| 5 | C_0063 | C_0402 | C66, C73, C74, C77, C80 |
| 2 | C_0045 | C_0402 | C75, C76 |
| 14 | R_0020 | R_0402 | R1, R4, R10, R11, R22, R32, R33, R36 +6 |
| 4 | R_0064 | R_0402 | R2, R20, R24, R41 |
| 1 | R_0030 | R_0402 | R3 |
| 1 | R_0028 | R_0402 | R5 |
| 1 | R_0121 | R_0402 | R6 |
| 1 | R_0173 | R_0402 | R7 |
| 1 | R_0174 | R_0402 | R8 |
| 1 | R_0102 | R_0402 | R9 |
| 3 | R_0001 | R_0402 | R12, R13, R14 |
| 1 | R_0134 | R_0402 | R15 |
| 5 | R_0053 | R_0402 | R16, R18, R21, R48, R49 |
| 1 | R_0133 | R_0402 | R17 |
| 3 | R_0005 | R_0402 | R19, R26, R27 |
| 1 | R_0170 | R_0402 | R23 |
| 1 | R_0171 | R_0402 | R25 |
| 8 | R_0175 | R_0402 | R28, R29, R30, R31, R34, R35, R37, R40 |
| 1 | R_0118 | R_0402 | R38 |
| 1 | R_0172 | R_0402 | R44 |
| 1 | NC | R_0402 | R52 |
Panel design files
The KiCad project lives in the Ondulab/Sp3ctra_CIS_electronics repository on GitHub; these links point at the commit this page was built from.
Panel: common questions
How big is the Panel PCB?
The Panel measures 210 × 41 mm, has 6 copper layers and is 1 mm thick.
How many components are on the Panel?
176 components, from 58 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Panel design files?
From the Ondulab/Sp3ctra_CIS_electronics repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Panel design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which Ondulab chose for the repository.
