AR488-Bluetooth-Mega-2560 PCB layout, top view — open source board by ONLYA
Simulate this board

About the AR488-Bluetooth-Mega-2560 PCB

AR488-Bluetooth-Mega-2560 is an open source PCB design by ONLYA, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 93.5 × 57.9 mm, with 32 components from 27 distinct parts.

Other key parts include the SN75160BN, SN75161BN, Level_Shifter, XC9141B50CMR-G and MCP65R41T-1202E/CHY. By type, the board carries 8 connectors, 5 ICs, 5 jumpers, 5 capacitors, 2 diodes and 2 resistors.

It belongs with the iot & wireless and power & battery designs in this gallery.

From the project

Source code and KiCad PCB design files for AR488 with Arduino Mega 2560

This board is capable to communicate IEEE-488 protocol between the instrument and a PC. The communication can be with a USB cable or battery-power Bluetooth communication. The firmware is from https://github.com/Twilight-Logic/AR488. Thanks to his help for this hardware project.

You can find the chips here: SN75160BN and SN75161BN.

The GPIB connector I use: 112-024-213R001. Please note that this is a female connector, so you will need a GPIB male-male cable.

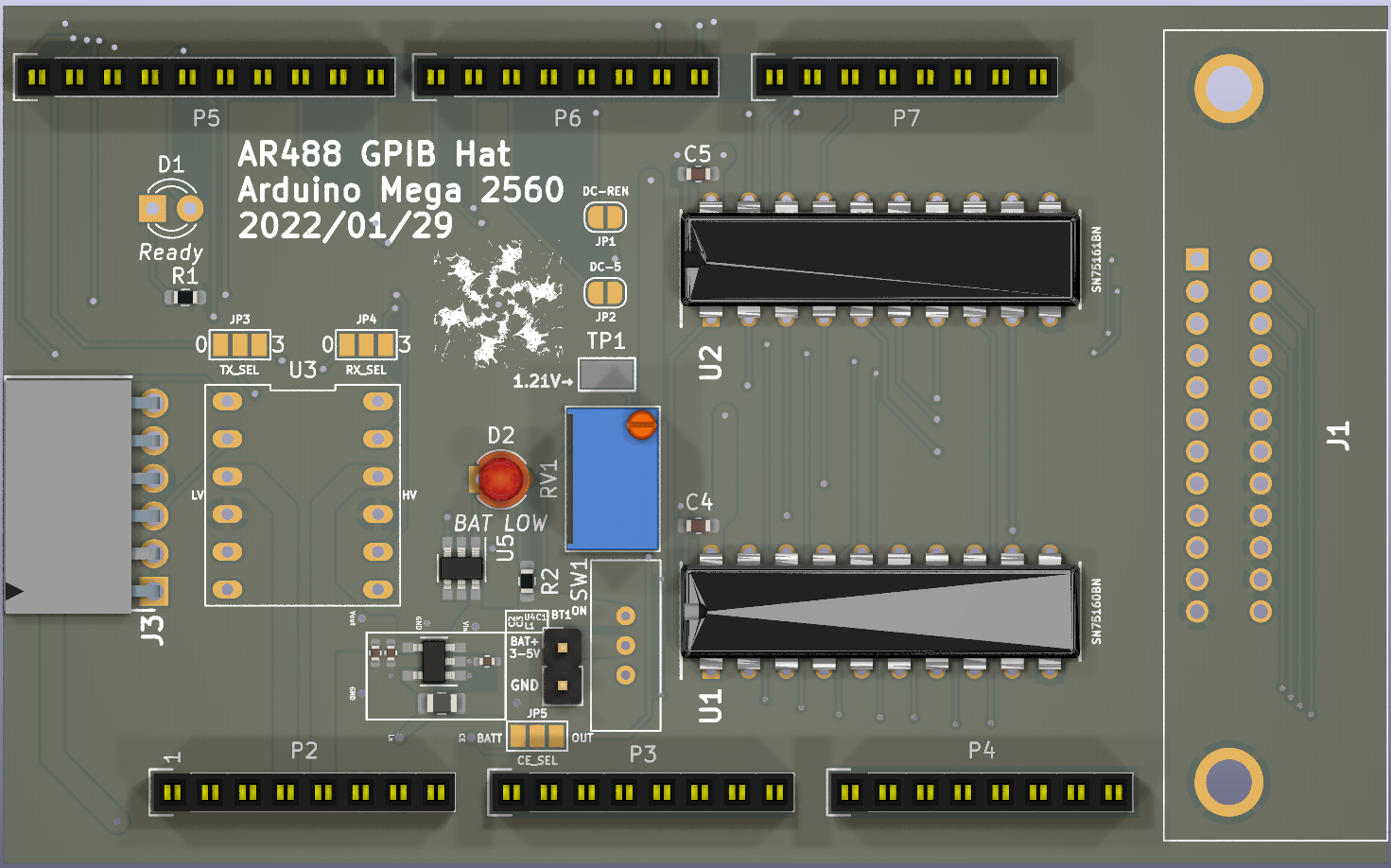

AR488-Bluetooth-Mega-2560, from the project README
From the project README

Main components on the AR488-Bluetooth-Mega-2560

SN75160BNSN75161BNLevel_ShifterXC9141B50CMR-GMCP65R41T-1202E/CHY

AR488-Bluetooth-Mega-2560 bill of materials (BOM)

32 components, 27 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
SN75160BN
U1
1
SN75161BN
U2
1
Level_Shifter
U3
1
XC9141B50CMR-G
U4
1
MCP65R41T-1202E/CHY
U5
1
112-024-213R001
J1
1
HC-05
J3
1
Power
P2
2
Analog
P3, P4
1
PWM
P5
1
PWM
P6
1
Communication
P7
1
Battery
BT1
1
DC-REN
JP1
1
DC-5
JP2
1
TX_SEL
JP3
1
RX_SEL
JP4
1
CE_SEL
JP5
1
5M
RV1
1
SW_SPDT
SW1
Show 7 more
QtyPartRefs
1
TestPoint
TP1
1
Ready
D1
1
BAT LOW
D2
1
4.7u
L1
3
10u
C1, C2, C3
2
0.1u
C4, C5
2
1k
R1, R2

AR488-Bluetooth-Mega-2560 design files

The KiCad project lives in the ONLYA/AR488-Bluetooth-Mega-2560 repository on GitHub; these links point at the commit this page was built from.

AR488-Bluetooth-Mega-2560: common questions

How big is the AR488-Bluetooth-Mega-2560 PCB?

The AR488-Bluetooth-Mega-2560 measures 93.5 × 57.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the AR488-Bluetooth-Mega-2560?

32 components, from 27 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the AR488-Bluetooth-Mega-2560 design files?

From the ONLYA/AR488-Bluetooth-Mega-2560 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the AR488-Bluetooth-Mega-2560 design in my own project?

Yes, under the terms of its GPL-2.0 license, which ONLYA chose for the repository.
