Lora gateway

OpenAlerting·lora-gateway·pcb/lora-gateway.kicad_pcb

Lora gateway PCB layout, top view — open source AVR/Arduino board by OpenAlerting

About the Lora gateway PCB

Lora gateway is an open source AVR/Arduino PCB design by OpenAlerting, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 78.3 × 25.8 mm, with 23 components from 13 distinct parts.

Its main chip is the ATmega2560-16A, from the AVR/Arduino family. Other key parts include the RFM95W-868S2 and LM1117-3.3. By type, the board carries 6 connectors, 6 capacitors, 4 resistors, 3 ICs, 2 diodes and 1 crystal.

It belongs with the rf & radio, iot & wireless and sensors designs in this gallery.

From the project

Lora gateway with m2560 and rfm95 and ethernet

- [ ] Add RTC - [ ] Add temperature sensor

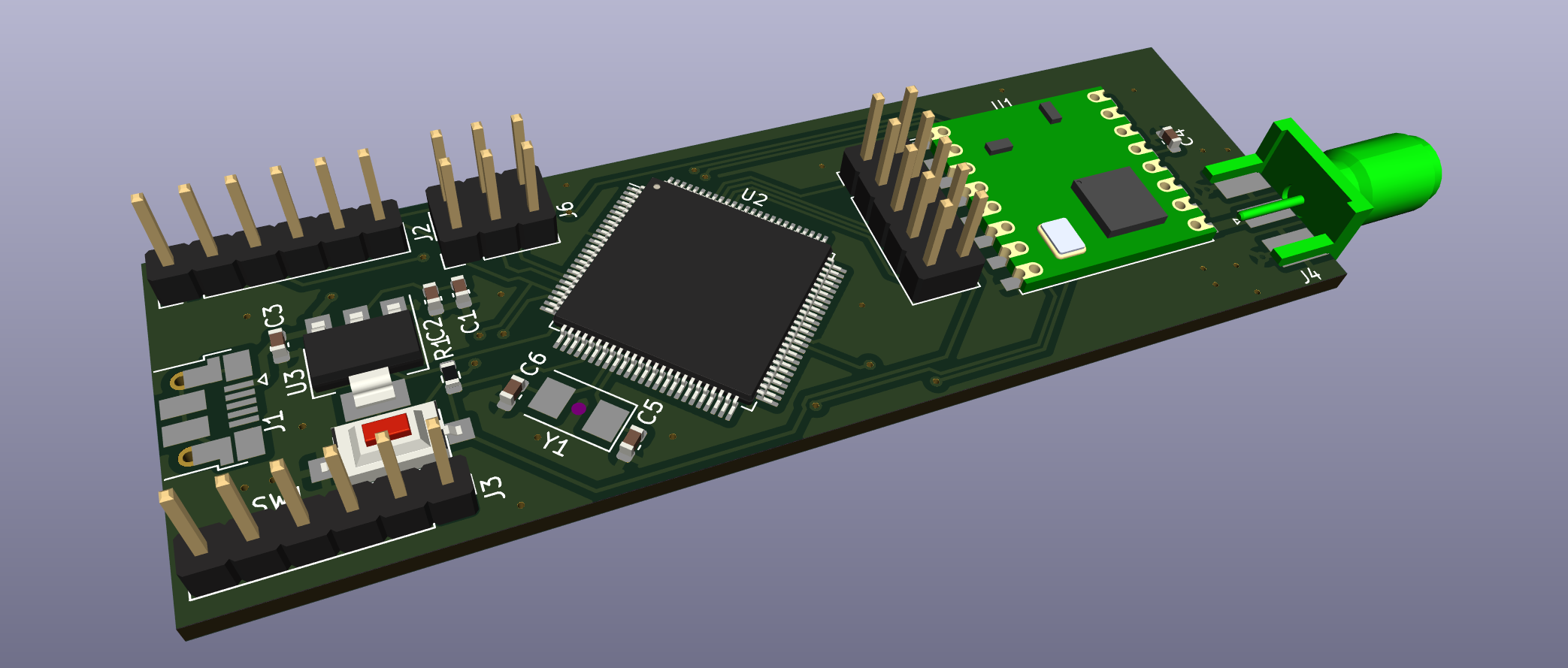

Lora gateway, from the project README
From the project README

Main components on the Lora gateway

RFM95W-868S2ATmega2560-16ALM1117-3.3

Lora gateway bill of materials (BOM)

23 components, 13 distinct parts.

QtyPartRefs
1
RFM95W-868S2
U1
1
ATmega2560-16A
U2
1
LM1117-3.3
U3
1
Crystal
Y1
1
USB_B_Micro
J1
2
Conn_01x06
J2, J3
1
Conn_Coaxial
J4
1
AVR-JTAG-10
J5
1
AVR-ISP-6
J6
1
SW_Push
SW1
2
LED
D1, D2
6
C_Small
C1, C2, C3, C4, C5, C6
4
R_Small
R1, R2, R3, R4

Lora gateway design files

The KiCad project lives in the OpenAlerting/lora-gateway repository on GitHub; these links point at the commit this page was built from.

Lora gateway: common questions

What microcontroller does the Lora gateway use?

The Lora gateway is built around the ATmega2560-16A, from the AVR/Arduino family.

How big is the Lora gateway PCB?

The Lora gateway measures 78.3 × 25.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Lora gateway?

23 components, from 13 distinct parts. The full bill of materials is listed on this page.

Where can I download the Lora gateway design files?

From the OpenAlerting/lora-gateway repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Lora gateway design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.

Can I test firmware for the Lora gateway without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
