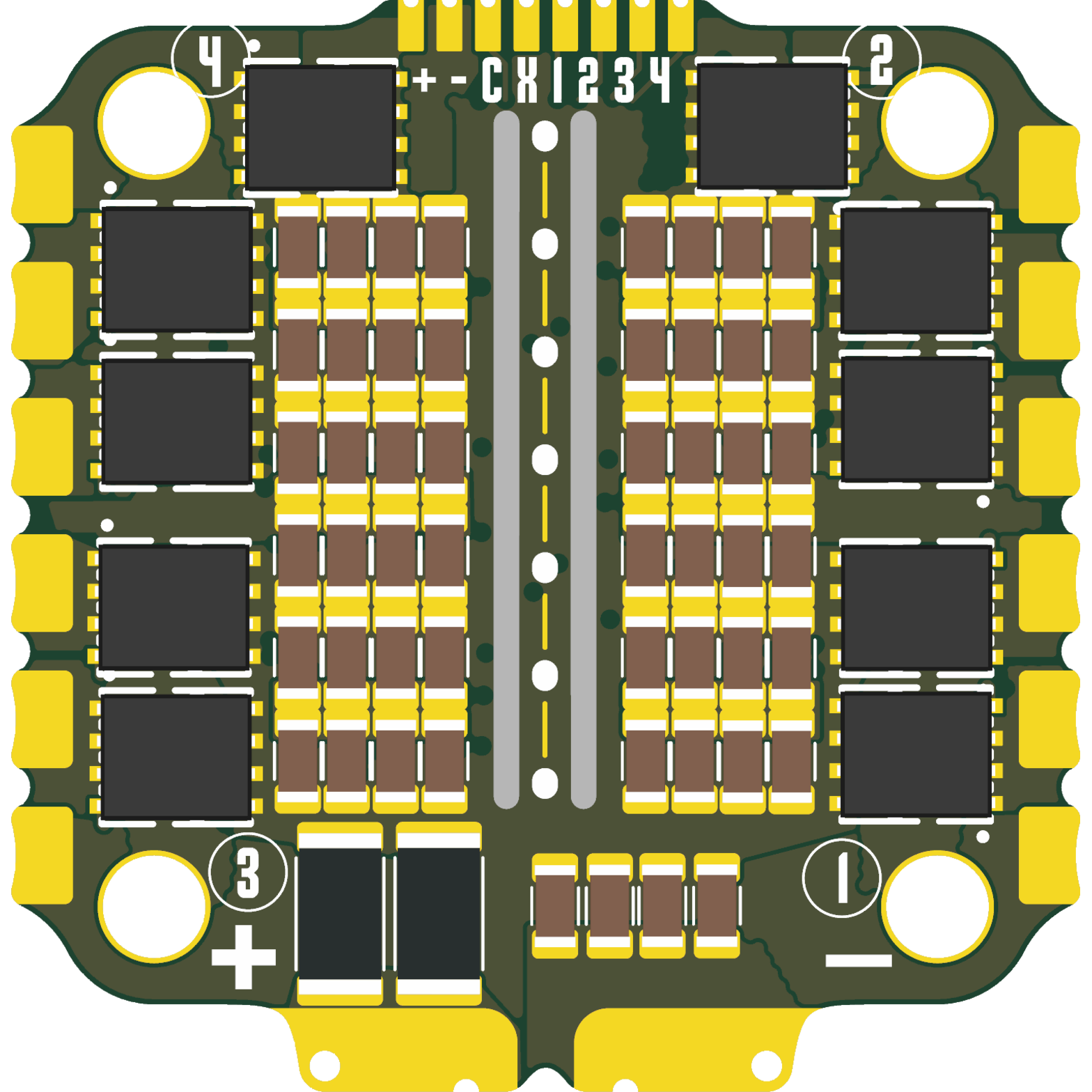

About the 4in1-panel PCB
4in1-panel is an open source PCB design by OpenDrone-hw, published on GitHub under the CERN-OHL-S-2.0 license. It is a 6-layer board measuring 41.6 × 80.4 mm, with 249 components from 29 distinct parts.
Other key parts include the TLV76733DRVR, C2765098, NSG2065Q, C41414478 and C2058245. By type, the board carries 92 capacitors, 92 resistors, 24 transistors, 15 ICs, 3 diodes and 1 connector.
It belongs with the robotics & motion and wearables designs in this gallery.
From the project
Open-source 4-in-1 AM32 ESC for FPV drones. 30.5x30.5 mm, 2-8S, one MCU per motor, CERN-OHL-S-2.0.
Open source 4-in-1 BLDC ESC with a 30.5 x 30.5 mm mounting pattern, part of the incutec OpenDrone line. Four independent motor controllers, each with its own MCU, gate driver and six MOSFETs, running AM32 and taking DShot over the standard 8-pin connector.
Technical write-up, part list and layout constraints: AGENTS.md.
What pairs with what, and what is available: opendrone.be.

Main components on the 4in1-panel
4in1-panel bill of materials (BOM)
249 components, 29 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TLV76733DRVR | WSON-6_L2.0-W2.0-P0.65-TL-EP | U1 |
| 2 | C2765098 AT32F421G8U7 | QFN-28_L4.0-W4.0-P0.40-TL-EP2.4 | U2, U5 |
| 2 | NSG2065Q | QFN-24_L4.0-W4.0-P0.50-TL-EP2.8 | U3, U11 |
| 4 | C41414478 NSG2065Q | QFN-24_L4.0-W4.0-P0.50-TL-EP2.8 | U4, U6, U8, U10 |
| 2 | C2765098 NSG2065Q | QFN-24_L4.0-W4.0-P0.50-TL-EP2.8 | U7, U9 |
| 1 | C2058245 INA186A3IDCKR | SOT-363_SC-70-6 | U12 |
| 1 | LMR54406DBVR TI(德州仪器) | SOT-23-6_L2.9-W1.6-P0.95-LS2.8-BR | U13 |
| 1 | C46594347 FTC160808S4R7MBCA | IND-SMD_L1.6-W0.8_FTC160865SR47MBCA | U14 |
| 1 | C2848334 TLV76733DRVR | WSON-6_L2.0-W2.0-P0.65-TL-EP | U15 |
| 19 | C22385416 DOY180N03T | Diodes_PowerDI3333-8 | Q1, Q2, Q3, Q4, Q5, Q6, Q8, Q10 +11 |
| 5 | C22385416 | PDFN-8L_L6.0-W5.0-P1.27 | Q7, Q9, Q13, Q17, Q20 |
| 1 | C160407 SM08B-SRSS-TB | JST_SM08B-SRSS-TB | J1 |
| 20 | 4.7uF | C_1206_3216Metric | CL32, CL33, CL34, CL35, CL36, CL38, CL39, CL40 +12 |
| 2 | C695806 0.2mR | R_2512_6332Metric | Rsense1, Rsense2 |
| 2 | SMF24A-T13 Littelfuse(美国力特) | SOD-123FL_L2.7-W1.8-LS3.7-RD | D1, D2 |
| 1 | SMBJ24A | SMB_L4.5-W3.7-LS5.4-RD | D3 |
| 4 | 22uF | C_0402_1005Metric | C1, C4, C42, C51 |
| 48 | 4.7uF | C_1206_3216Metric | C2, C3, C6, C7, C8, C9, C13, C14 +40 |
| 14 | 100nF | C_0402_WIDE | C32, C33, C34, C35, C36, C37, C38, C39 +6 |
| 24 | 100nF | C_0201_0603Metric | C46, C48, C49, C50, C52, C54, C55, C57 +16 |
Show 9 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 22uF | C_0603_1608Metric | C47, C86 |
| 32 | 15R | R_0201_0603Metric | R1, R2, R6, R7, R8, R9, R16, R17 +24 |
| 22 | 10k | R_0201_0603Metric | R3, R4, R12, R18, R19, R21, R25, R27 +14 |
| 4 | 220R | R_0201_0603Metric | R5, R20, R39, R87 |
| 14 | 10k | C_0201_0603Metric | R10, R13, R15, R28, R31, R33, R36, R46 +6 |
| 7 | 1k | C_0201_0603Metric | R11, R14, R29, R47, R50, R65, R71 |
| 6 | 1k | R_0201_0603Metric | R26, R32, R35, R53, R68, R73 |
| 5 | 10R | R_0201_0603Metric | R74, R84, R85, R86, R88 |
| 2 | 115k | R_0201_0603Metric | R119, R120 |
4in1-panel design files
The KiCad project lives in the OpenDrone-hw/OpenESC-30x30 repository on GitHub; these links point at the commit this page was built from.
4in1-panel: common questions
How big is the 4in1-panel PCB?
The 4in1-panel measures 41.6 × 80.4 mm, has 6 copper layers and is 1.69 mm thick.
How many components are on the 4in1-panel?
249 components, from 29 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the 4in1-panel design files?
From the OpenDrone-hw/OpenESC-30x30 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the 4in1-panel design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which OpenDrone-hw chose for the repository.
