About the Orangecrab hardware PCB

Orangecrab hardware is an open source FPGA PCB design by orangecrab-fpga, published on GitHub. It is a 6-layer board measuring 50.8 × 22.9 mm, with 141 components from 46 distinct parts.

Its main chip is the ECP5U25, from the FPGA family. Other key parts include the FAN53541, MT41K64M16TW-107_J-TR, BQ24232, AT25SF081 and TPS51206. By type, the board carries 77 capacitors, 36 resistors, 10 ICs, 7 connectors, 7 inductors and 2 diodes.

It belongs with the dev boards & breakouts and power & battery designs in this gallery.

From the project

ECP5 breakout board in a feather physical format

Hardware r0.1 is not the latest hrdware version. There are some bugs listed below.

Hardware in this repository is licenced under CERN OHL v1.2 Gateware/Software/Firmware in this repository is licenced under MIT unless otherise indicated

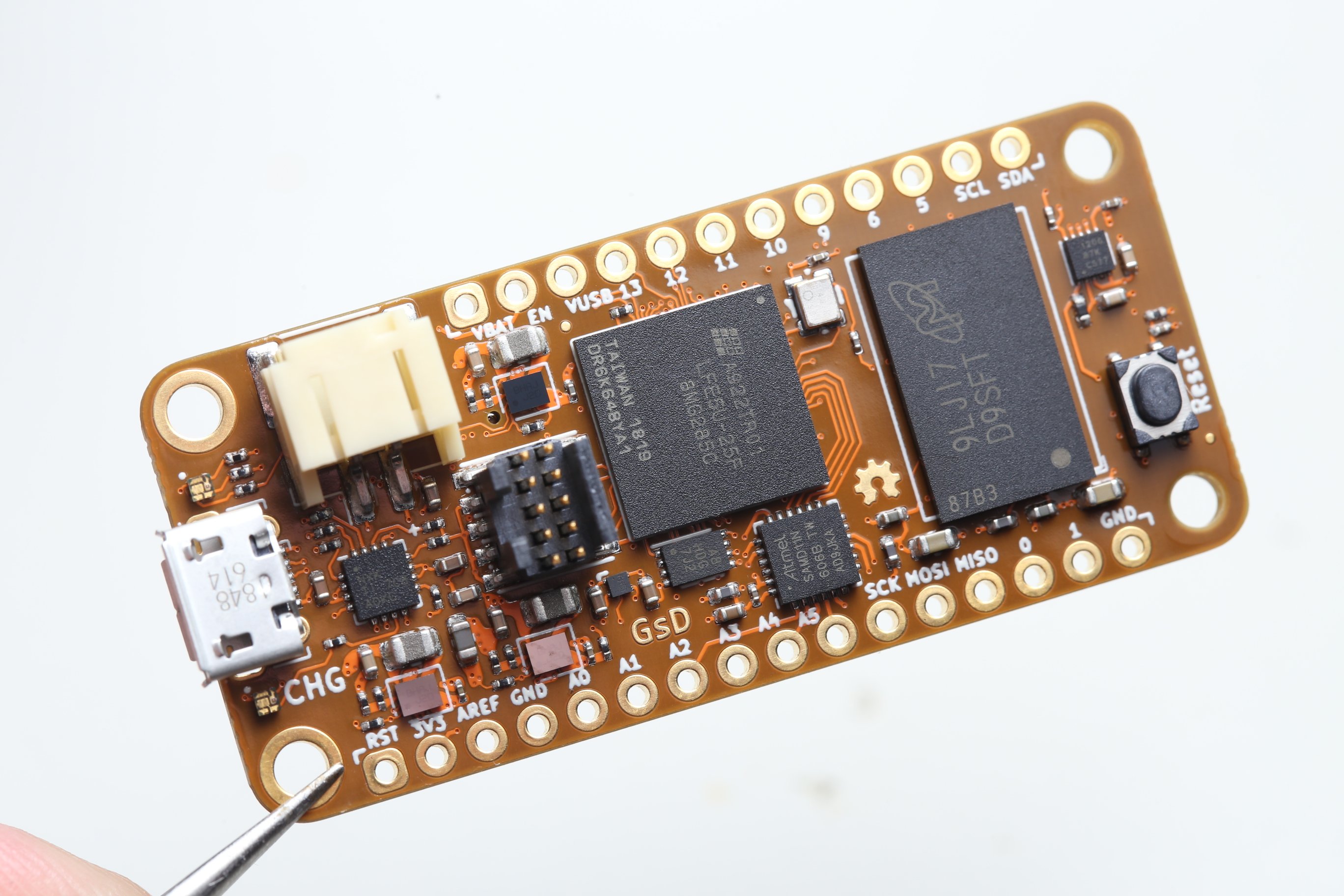

Orangecrab hardware, from the project README
From the project README

Main components on the Orangecrab hardware

FAN53541ECP5U25MT41K64M16TW-107_J-TRBQ24232AT25SF081TPS51206ATSAMD11D14ANCP115-2.5

Orangecrab hardware bill of materials (BOM)

141 components, 46 distinct parts.

QtyPartRefs
3
FAN53541
U1, U2, U7
1
ECP5U25
U3
1
MT41K64M16TW-107_J-TR
U4
1
BQ24232
U5
1
AT25SF081
U6
1
TPS51206
U8
1
ATSAMD11D14A
U9
1
NCP115-2.5
U10
1
Conn_01x12_Male
J1
1
Conn_01x16_Male
J2
1
USB_B_Micro
J3
1
MicroSd
J4
1
JST
J5
1
JTAG
J6
1
Conn_02x15_Odd_Even
J7
1
TYETBCSANF-32.000000
OSC1
1
SW_Push
SW1
2
LED_ARGB
D1, D2
4
600R
FB1, FB2, FB3, FB4
3
0.47uH
L1, L2, L3
Show 26 more
QtyPartRefs
24
10nF
C1, C2, C5, C14, C19, C25, C27, C38 +16
1
10uF
C3
28
100nF
C4, C9, C20, C26, C28, C30, C31, C32 +20
8
10uF
C6, C7, C8, C11, C15, C16, C17, C18
1
0.22uF
C10
6
4.7uF
C12, C13, C29, C46, C47, C77
6
1uF
C21, C22, C34, C35, C36, C37
2
22uF
C23, C24
1
4.7uF
C71
7
100k
R1, R5, R13, R14, R17, R18, R25
1
31.6k
R2
1
0R
R3
6
4.7K
R4, R21, R22, R23, R24, R27
1
0R
R6
3
1.5K
R7, R8, R20
1
3.57k
R9
1
56.2k
R10
1
3.06k
R11
1
4.32k
R12
1
267k
R15
1
147k
R16
1
240R
R19
2
10K
R26, R28
1
1K
R29
6
50R
RN1, RN2, RN3, RN4, RN5, RN6
1
10K
RN7

Orangecrab hardware design files

The KiCad project lives in the orangecrab-fpga/orangecrab-hardware repository on GitHub; these links point at the commit this page was built from.

Orangecrab hardware: common questions

What microcontroller does the Orangecrab hardware use?

The Orangecrab hardware is built around the ECP5U25, from the FPGA family.

How big is the Orangecrab hardware PCB?

The Orangecrab hardware measures 50.8 × 22.9 mm, has 6 copper layers and is 1.6 mm thick.

How many components are on the Orangecrab hardware?

141 components, from 46 distinct parts. The full bill of materials is listed on this page.

Where can I download the Orangecrab hardware design files?

From the orangecrab-fpga/orangecrab-hardware repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Orangecrab hardware design in my own project?

The repository has no license, so all rights stay with orangecrab-fpga. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Orangecrab hardware without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
