Mk312-bt PCB layout, top view — open source ESP8266 board by orgasms4worldpeace

About the Mk312-bt PCB

Mk312-bt is an open source ESP8266 PCB design by orgasms4worldpeace, published on GitHub. It is a 2-layer board measuring 30 × 17 mm, with 7 components from 6 distinct parts.

Its main chip is the ESP-01, from the ESP8266 family. Other key parts include the AMS1117-3.3. By type, the board carries 2 connectors, 2 capacitors, 1 IC, 1 transistor and 1 switch.

It belongs with the iot & wireless designs in this gallery.

From the project

Estim box plans. Use at own risk.

A drop-in replacement for the HC-05 Bluetooth module on the MK-312BT, based on the ESP8266-01S. Pin-compatible with the same Radio Header socket — the box doesn't need any change.

This is a collaboration between Rangarig and cLx, with additional code imported from timduru's branch. Upstream lives at Rangarig/MK312WIFI and is pulled into this repo as a git subtree.

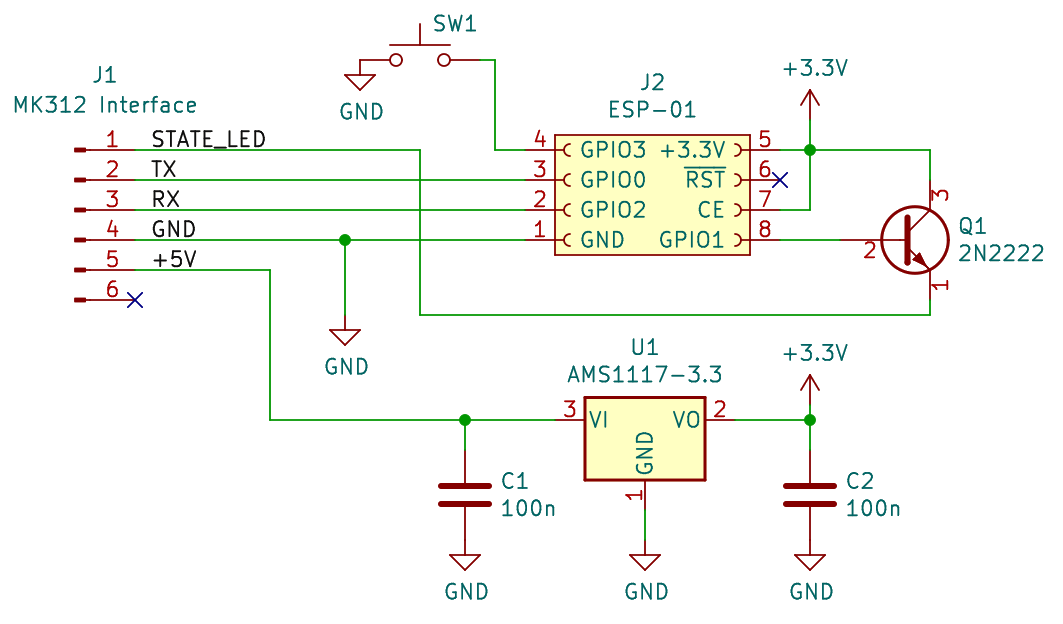

Mk312-bt, from the project README
From the project README

Main components on the Mk312-bt

AMS1117-3.3

Mk312-bt bill of materials (BOM)

7 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AMS1117-3.3
U1
1
PN2222A
Q1
1
MK312 Interface
J1
1
ESP-01
J2
1
SW_Push
SW1
2
100n
C1, C2

Mk312-bt design files

The KiCad project lives in the orgasms4worldpeace/mk312-bt repository on GitHub; these links point at the commit this page was built from.

Mk312-bt: common questions

What microcontroller does the Mk312-bt use?

The Mk312-bt is built around the ESP-01, from the ESP8266 family.

How big is the Mk312-bt PCB?

The Mk312-bt measures 30 × 17 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Mk312-bt?

7 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Mk312-bt design files?

From the orgasms4worldpeace/mk312-bt repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Mk312-bt design in my own project?

The repository has no license, so all rights stay with orgasms4worldpeace. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Mk312-bt without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
