Sht45 breakout

osmanates·sht45_breakout·hardware/sht45_breakout.kicad_pcb

Sht45 breakout layout, top view — open source board by osmanates

About the Sht45 breakout

Sht45 breakout is an open source PCB design by osmanates, published on GitHub. It is a 2-layer board measuring 16 × 19.8 mm, with 6 components from 5 distinct parts.

Other key parts include the SHT45-AD1B-R2. By type, the board carries 2 connectors, 2 resistors, 1 IC and 1 capacitor.

It belongs with the sensors and dev boards & breakouts designs in this gallery.

From the project

Sensirion SHT45 (±1.0 %RH, ±0.1 °C, I²C) nem ve sıcaklık sensörü için küçük bir breakout (modül) kartı. Şema, PCB, Gerber, delik dosyası ve JLCPCB montaj (BOM/CPL) dosyaları bu depoda.

Sensirion SHT45 (±1.0 %RH, ±0.1 °C, I²C) nem ve sıcaklık sensörü için küçük bir breakout (modül) kartı. Şema, PCB, Gerber, delik dosyası ve JLCPCB montaj (BOM/CPL) dosyaları bu depoda.

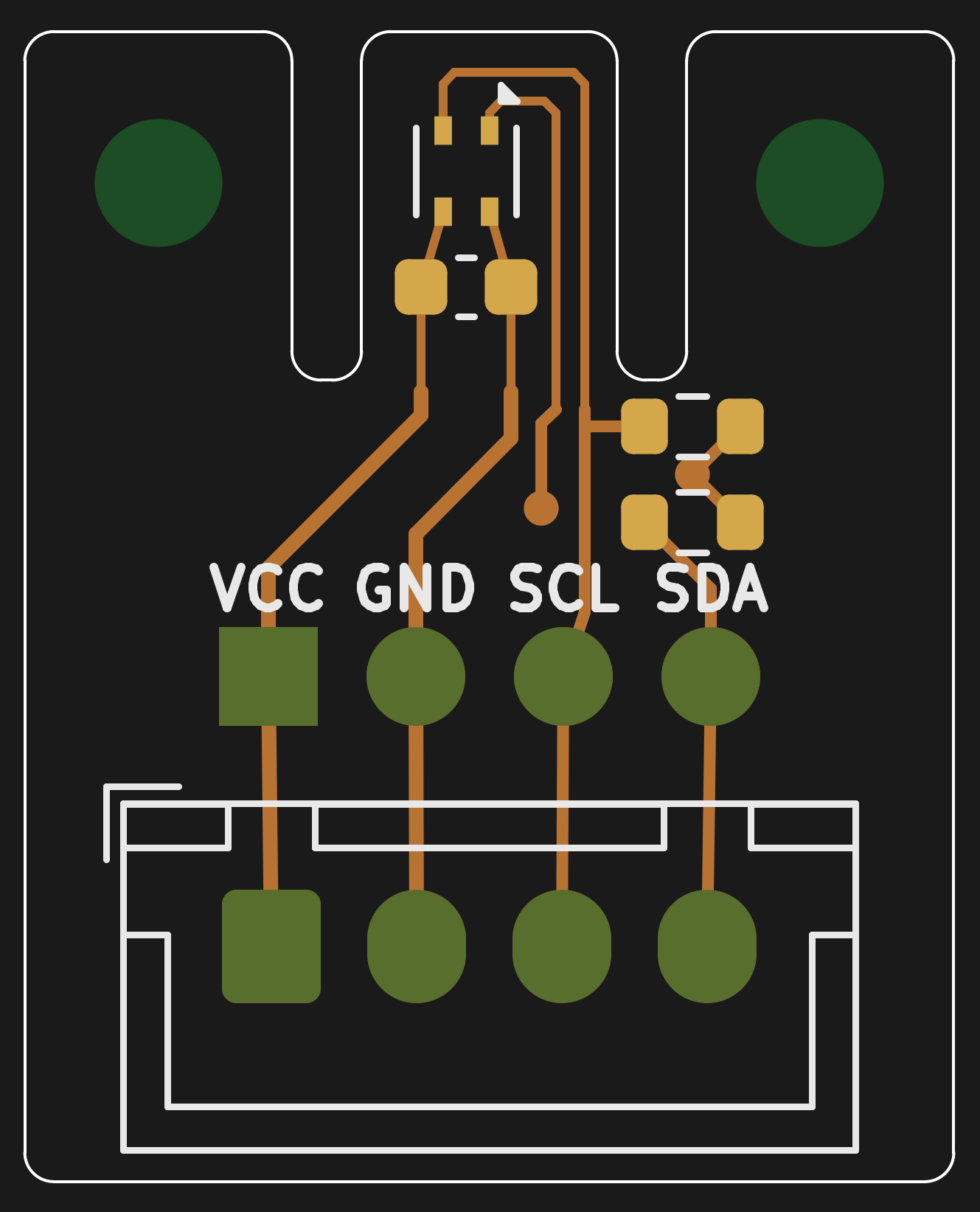

(Görseller KiCad'in değil, doğrudan üretilen Gerber dosyalarının gerbv ile çizilmiş halidir. Alt yüz, kartın üstünden bakılıyormuş gibi gösterildiği için yazılar ters görünüyor. Düz okunan hali docs/pcbbottom.png` dosyasında.)

Sht45 breakout, from the project README
From the project README

Main components on the Sht45 breakout

SHT45-AD1B-R2

Sht45 breakout bill of materials (BOM)

6 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
SHT45-AD1B-R2
Sensirion
U1
1
I2C
J1
1
XH
J2
1
100NF
100nF
C1
2
10K
10k
R1, R2

Sht45 breakout design files

The KiCad project lives in the osmanates/sht45_breakout repository on GitHub; these links point at the commit this page was built from.

Sht45 breakout: common questions

How big is the Sht45 breakout?

The Sht45 breakout measures 16 × 19.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Sht45 breakout?

6 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Sht45 breakout design files?

From the osmanates/sht45_breakout repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Sht45 breakout design in my own project?

The repository has no license, so all rights stay with osmanates. Use it as a reference, and ask the author before reusing the design.
