Radio-Tutorial PCB layout, top view — open source RP2040/RP2350 board by Outdatedcandy92

About the Radio-Tutorial PCB

Radio-Tutorial is an open source RP2040/RP2350 PCB design by Outdatedcandy92, published on GitHub. It is a 2-layer board measuring 80 × 35 mm, with 16 components from 11 distinct parts.

Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. Other key parts include the RDA5807MRRD-102V2.0 and TDA2822NBD. By type, the board carries 5 capacitors, 3 ICs, 3 connectors, 2 resistors and 1 switch.

It belongs with the audio and rf & radio designs in this gallery.

From the project

An FM receiver board built around the RDA5807 module. It includes a Seeed Xiao RP2040 to control the RDA5807 over I2C. The board also includes a TDA2822 audio amplifier, which allows you to connect and drive speakers directly from the board. The RDA5807's antenna input is connect

An FM receiver board built around the RDA5807 module. It includes a Seeed Xiao RP2040 to control the RDA5807 over I2C. The board also includes a TDA2822 audio amplifier, which allows you to connect and drive speakers directly from the board. The RDA5807's antenna input is connected to a 3.5mm jack, so you can plug in a 3.5mm antenna.

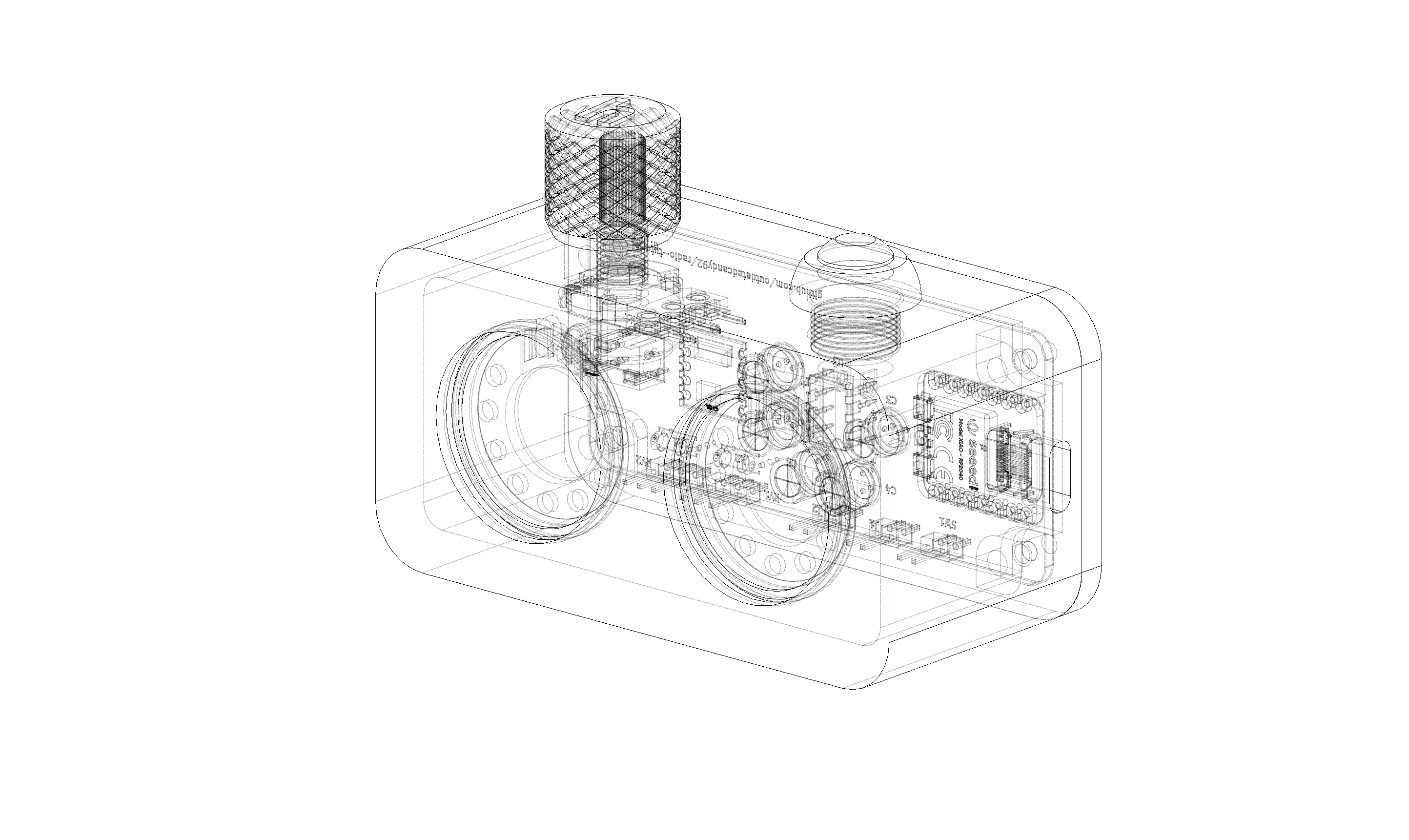

Radio-Tutorial, from the project README
From the project README

Main components on the Radio-Tutorial

XIAO-RP2040-DIPRDA5807MRRD-102V2.0TDA2822NBD

Radio-Tutorial bill of materials (BOM)

16 components, 11 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
XIAO-RP2040-DIP
U1
1
RDA5807MRRD-102V2.0
U2
1
TDA2822NBD
GMIC(绿微)
U3
1
PJ-3200
XKB Connection(中国星坤)
CN1
1
R_SPK
J1
1
L_SPK
J2
2
10K
RV1, RV2
1
PWR
SW1
3
100UF
100uF
C1, C2, C3
2
470UF
470uF
C4, C5
2
10K
R1, R2

Radio-Tutorial design files

The KiCad project lives in the Outdatedcandy92/Radio-Tutorial repository on GitHub; these links point at the commit this page was built from.

Radio-Tutorial: common questions

What microcontroller does the Radio-Tutorial use?

The Radio-Tutorial is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.

How big is the Radio-Tutorial PCB?

The Radio-Tutorial measures 80 × 35 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Radio-Tutorial?

16 components, from 11 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Radio-Tutorial design files?

From the Outdatedcandy92/Radio-Tutorial repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Radio-Tutorial design in my own project?

The repository has no license, so all rights stay with Outdatedcandy92. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Radio-Tutorial without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
