Radioberry LPF V1.3 PCB layout, top view — open source board by pa3gsb

About the Radioberry LPF V1.3 PCB

Radioberry LPF V1.3 is an open source PCB design by pa3gsb, published on GitHub. It is a 4-layer board measuring 85 × 56 mm, with 112 components from 61 distinct parts.

Other key parts include the LD1117S33TR_SOT223, MCP23008, DBV5, ILD213T and DDA0008J. By type, the board carries 60 capacitors, 14 inductors, 14 resistors, 11 connectors, 7 relays and 5 ICs.

It belongs with the rf & radio designs in this gallery.

From the project

Hardware extensions to the Radioberry Ham Radio

Deepu Augustin VU3TLD, from India made the next step to make a complete stackable HAM radio.

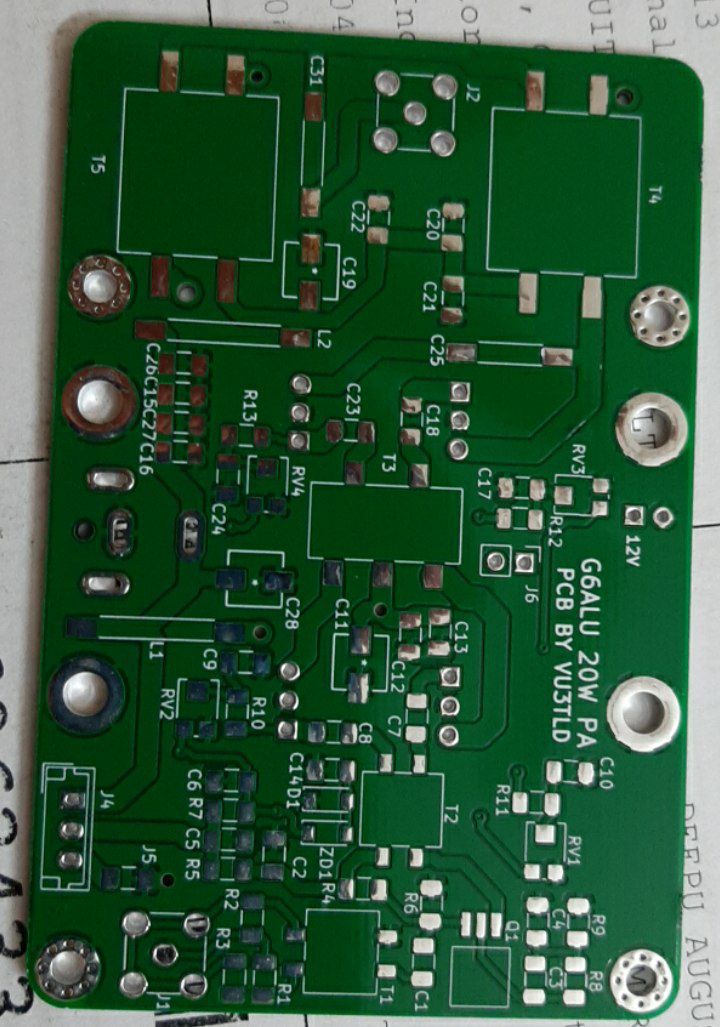

He started with a Power Amplifier board, based on the G6ALU 20W PA; version 1.5 is available and the first components are in place.

He also is aiming for a filter board; a version 1.3 is available; first PCB's are underway!

An animation of the idea of such a configuration can be found => Radioberryradioassembly.avi file.

Radioberry LPF V1.3, from the project README
From the project README

Main components on the Radioberry LPF V1.3

LD1117S33TR_SOT223MCP23008DBV5ILD213TDDA0008J

Radioberry LPF V1.3 bill of materials (BOM)

112 components, 61 distinct parts.

QtyPartRefs
1
LD1117S33TR_SOT223
U1
1
MCP23008
U2
1
DBV5
U3
1
ILD213T
U4
1
DDA0008J
U5
1
ULN2003ADR
Q1
1
SJ-3523-SMT-TR
CON1
1
PA_Out
J1
1
U.FL-R-SMT-1(10)
J2
1
From PA board
J3
2
Conn_01x02
J4, J11
2
Jumper_Pad
J5, J9
1
Conn_Coaxial
J6
1
Mating CN301 Radioberry
J7
1
PTTIN&CW
J8
7
AGQ200S03Z
K1, K2, K3, K4, K5, K6, K7
2
3.9u
L1, L2
2
1.8u
L3, L4
1
680n
L5
1
1000n
L6
Show 41 more
QtyPartRefs
1
270n
L7
1
560n
L8
2
390n
L9, L10
2
220n
L11, L12
1
470nH
L13
1
4.7u
L14
3
1800p
C1, C3, C6
1
3300p
C2
18
100n
C4, C8, C14, C20, C24, C28, C29, C30 +10
2
1000p
C5, C7
3
270p
C9, C13, C18
1
100p
C10
2
220p
C11, C15
1
560p
C12
1
39p
C16
1
68p
C17
3
150p
C19, C25, C27
2
180p
C21, C23
2
330p
C22, C26
1
1n
C37
1
10n
C38
1
100u
C40
1
6.8p
C43
1
1.6n
C44
2
1u
C46, C47
4
10u
C48, C50, C51, C52
1
39u
C49
1
220n
C53
1
1u
C54
1
150n
C55
1
10p
C56
3
22u
C57, C58, C59
1
100n
C60
1
100
R1
3
100
R2, R5, R6
2
2.2k
R3, R4
2
220
R7, R8
2
680
R9, R10
1
100m
R11
2
100k
R12, R13
1
24.3k
R14

Radioberry LPF V1.3 design files

The KiCad project lives in the pa3gsb/Radioberry-2.x-extensions repository on GitHub; these links point at the commit this page was built from.

Radioberry LPF V1.3: common questions

How big is the Radioberry LPF V1.3 PCB?

The Radioberry LPF V1.3 measures 85 × 56 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Radioberry LPF V1.3?

112 components, from 61 distinct parts. The full bill of materials is listed on this page.

Where can I download the Radioberry LPF V1.3 design files?

From the pa3gsb/Radioberry-2.x-extensions repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Radioberry LPF V1.3 design in my own project?

The repository has no license, so all rights stay with pa3gsb. Use it as a reference, and ask the author before reusing the design.
