Conveyor Belt Arduino mega board
About the Conveyor Belt Arduino mega board

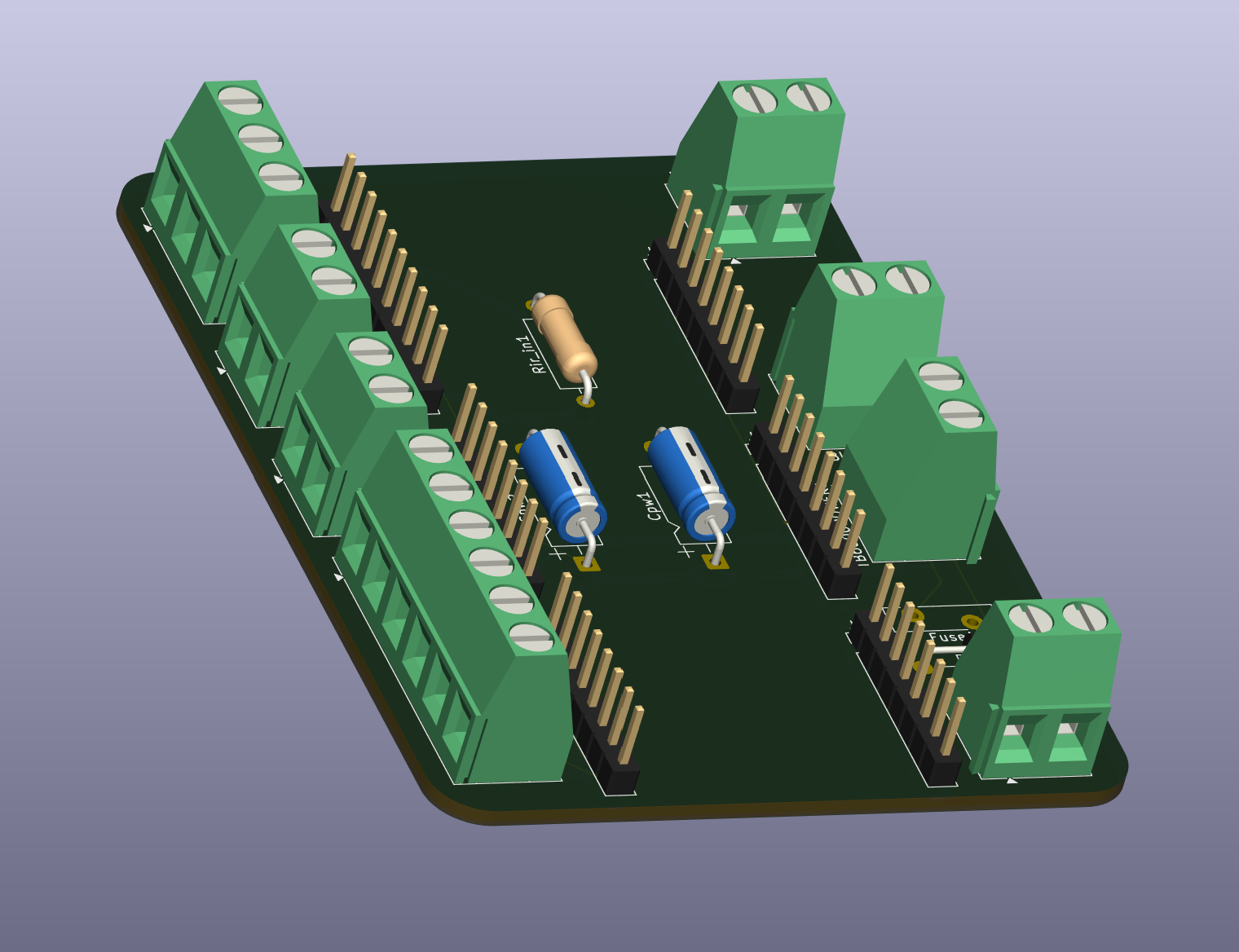

Conveyor Belt Arduino mega board is an open source PCB design by Paa-Kwasi-04, published on GitHub. It is a 2-layer board measuring 64.8 × 85 mm, with 19 components from 14 distinct parts.
By type, the board carries 6 connectors and 1 diode.
Conveyor Belt Arduino mega board bill of materials (BOM)
19 components, 14 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | Conn_01x08_Pin | PinHeader_1x08_P2.54mm_Vertical | J1, J3, J4, J5 |
| 1 | 3.3V Conn_01x08_Pin | PinHeader_1x08_P2.54mm_Vertical | J2 |
| 1 | Conn_01x10_Pin | PinHeader_1x10_P2.54mm_Vertical | J6 |
| 2 | IN24V | TerminalBlock_Phoenix_MKDS-1,5-2_1x02_P5.00mm_Horizontal | BUCK_IN1, POWER_IN1 |
| 1 | OUT12V | TerminalBlock_Phoenix_MKDS-1,5-2_1x02_P5.00mm_Horizontal | BUCK_OUT1 |
| 1 | 470uF | CP_Axial_L10.0mm_D4.5mm_P15.00mm_Horizontal | Cpw1 |
| 1 | 0.1uF | CP_Axial_L10.0mm_D4.5mm_P15.00mm_Horizontal | Cpw2 |
| 1 | PTCFuse | Fuse_Bourns_MF-RG400 | Fuse1 |
| 2 | ~ | TerminalBlock_Phoenix_MKDS-1,5-2_1x02_P5.00mm_Horizontal | PUSH_BUTTON1, SENSOR_OUT1 |
| 1 | 1KΩ | R_Axial_DIN0309_L9.0mm_D3.2mm_P12.70mm_Horizontal | Rir_in1 |
| 1 | ~ | TerminalBlock_Phoenix_MKDS-1,5-3-5.08_1x03_P5.08mm_Horizontal | SENSOR_IN1 |
| 1 | CONTROL | TerminalBlock_Phoenix_MKDS-1,5-6_1x06_P5.00mm_Horizontal | TB6600CONTROL1 |
| 1 | POWER24V | TerminalBlock_Phoenix_MKDS-1,5-2_1x02_P5.00mm_Horizontal | TB6600POWER1 |
| 1 | SS14 D1sch | D_A-405_P12.70mm_Horizontal | D1 |
Conveyor Belt Arduino mega board design files
The KiCad project lives in the Paa-Kwasi-04/Kicad_Projects repository on GitHub; these links point at the commit this page was built from.
Conveyor Belt Arduino mega board: common questions
How big is the Conveyor Belt Arduino mega board?
The Conveyor Belt Arduino mega board measures 64.8 × 85 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Conveyor Belt Arduino mega board?
19 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Conveyor Belt Arduino mega board design files?
From the Paa-Kwasi-04/Kicad_Projects repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Conveyor Belt Arduino mega board design in my own project?
The repository has no license, so all rights stay with Paa-Kwasi-04. Use it as a reference, and ask the author before reusing the design.
