Gb link cable

Palmr·gb-link-cable

Gb link cable PCB layout, top view — open source board by Palmr
Simulate this board

About the Gb link cable PCB

Gb link cable is an open source PCB design by Palmr, published on GitHub under the CC-BY-4.0 license. It is a 2-layer board measuring 17 × 15 mm, with 2 components from 2 distinct parts.

It belongs with the dev boards & breakouts and retro computing designs in this gallery.

From the project

:video_game: Gameboy link cable breakout PCB

I have been thinking about interfacing with my gameboy for a while via the link cable but had no way, other than destroying a cable, to connect it to an arduino or raspberry pi.

Eventually I stumbled upon a blog post where someone had written about the creation of a link cable breakout board. Unfortunately they didn't distribute their CAD file but I figured now would be a good time for me to learn how to create a PCB too.

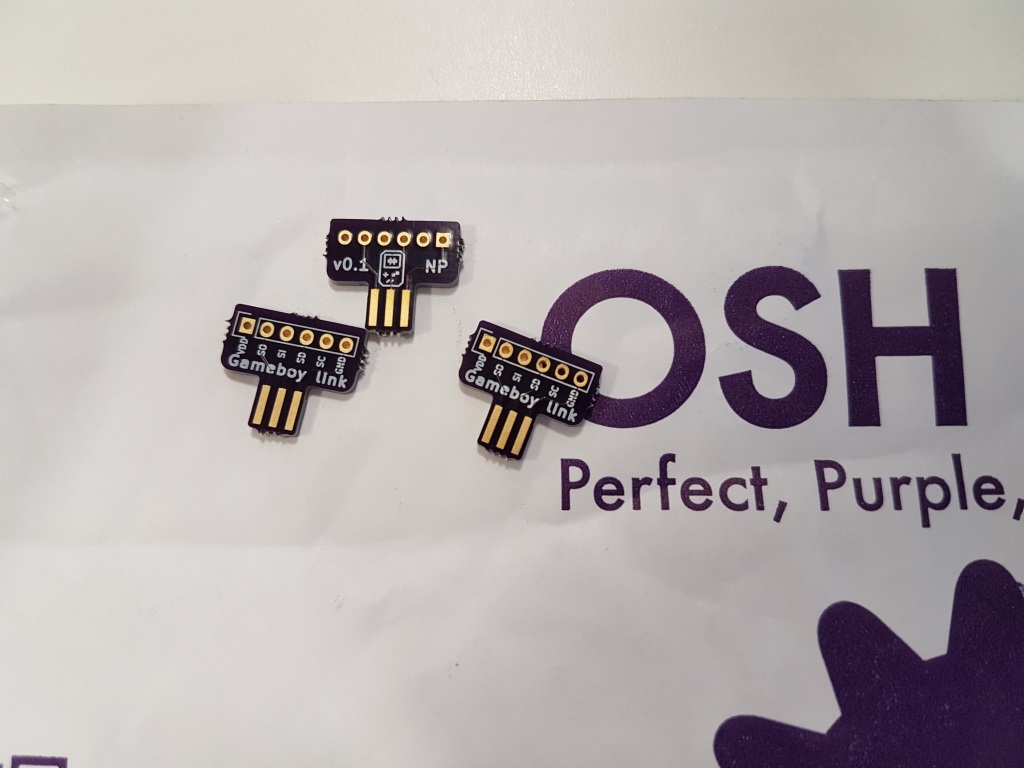

Gb link cable, from the project README
From the project README

Gb link cable bill of materials (BOM)

2 components, 2 distinct parts.

QtyPartRefs
1
CONN_01X06
P1
1
gb-link-socket
GB1

Gb link cable design files

The KiCad project lives in the Palmr/gb-link-cable repository on GitHub; these links point at the commit this page was built from.

Gb link cable: common questions

How big is the Gb link cable PCB?

The Gb link cable measures 17 × 15 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Gb link cable?

2 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the Gb link cable design files?

From the Palmr/gb-link-cable repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Gb link cable design in my own project?

Yes, under the terms of its CC-BY-4.0 license, which Palmr chose for the repository.
