HP6632B binding posts

PatrickBaus·HP6632B_binding_posts

HP6632B binding posts PCB layout, top view — open source board by PatrickBaus
Simulate this board

About the HP6632B binding posts PCB

HP6632B binding posts is an open source PCB design by PatrickBaus, published on GitHub under the CERN-OHL-W-2.0 license. It is a 2-layer board measuring 45 × 73 mm, with 19 components from 8 distinct parts.

By type, the board carries 6 inductors, 6 capacitors and 2 connectors.

It belongs with the power & battery designs in this gallery.

From the project

A PCB for mounting front panel binding posts on the HP 66332A and HP 6632B-6634B

The components chosen allow the board to be used on all variants of the HP 663xB family - even the 100 V 6634B. A variety of different binding posts can be used. There are HP/Agilent versions available on Ebay. I used Pomona 4243-0 (Digikey) and 3760-5 (Digikey) binding posts.

- HP 66332A and HP 6632B-6634B Shorting Bar

- MAJOR versions in this context mean a breaking change to the external interface of the hardware like different connectors or functions. - MINOR versions contain changes to the hardware that only affect the inner workings of the circuit, but otherwise the performance is…

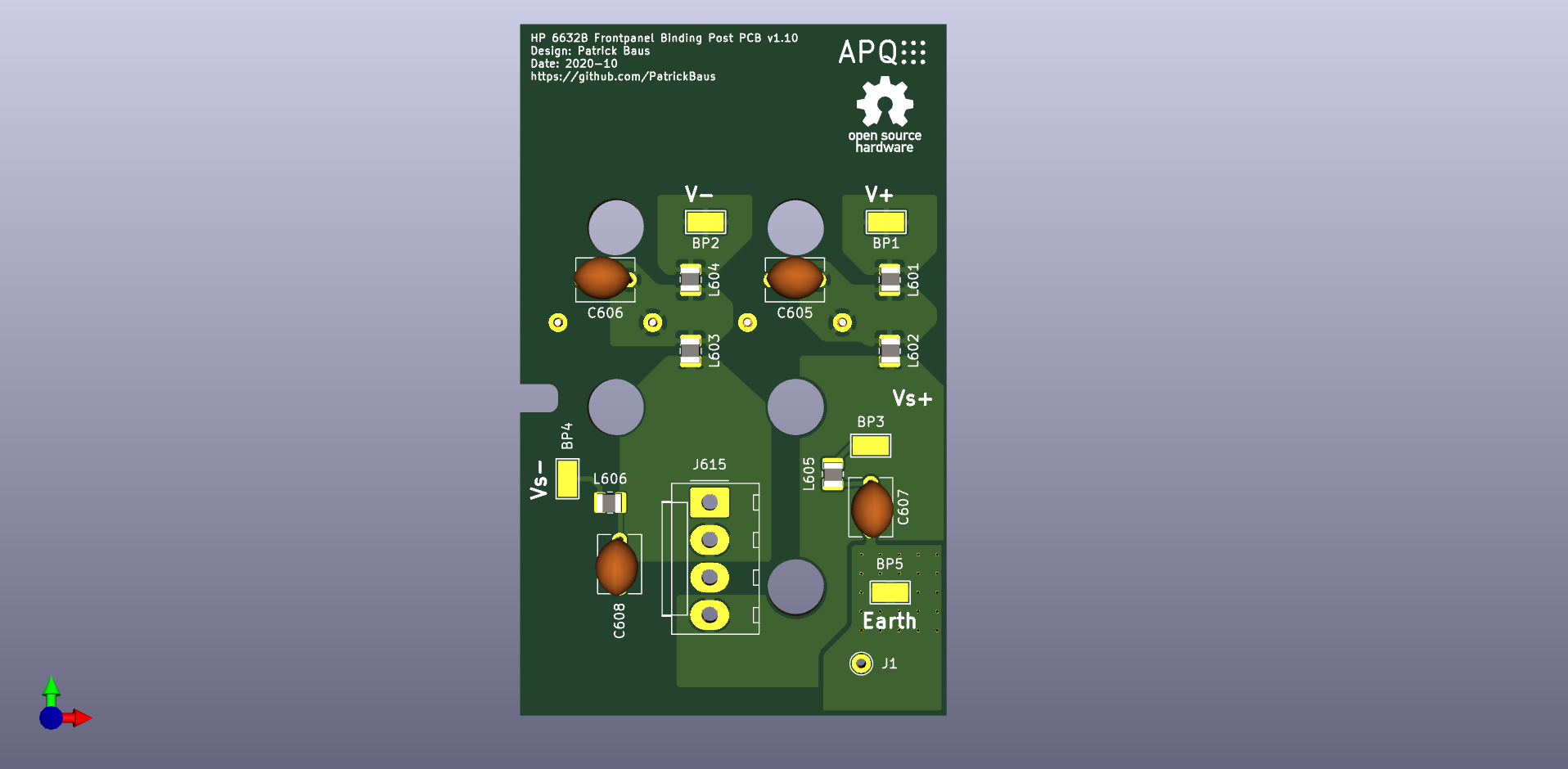

HP6632B binding posts, from the project README
From the project README

HP6632B binding posts bill of materials (BOM)

19 components, 8 distinct parts.

QtyPartRefs
1
433-028
Conn_01x01
J1
1
26-60-4040;09-50-8041:2;08-52-0071:8
Conn_01x04_Male
J615
2
4243-0
Conn_01x01
BP1, BP3
2
Conn_01x01
BP2, BP4
1
3760-5
Conn_01x01
BP5
6
TFM252012ALMAR15MTAA
150n
L601, L602, L603, L604, L605, L606
2
R413F147000M1K
4.7n
C603, C604
4
F221K25Y5RN6UK5R
220p
C605, C606, C607, C608

HP6632B binding posts design files

The KiCad project lives in the PatrickBaus/HP6632B_binding_posts repository on GitHub; these links point at the commit this page was built from.

HP6632B binding posts: common questions

How big is the HP6632B binding posts PCB?

The HP6632B binding posts measures 45 × 73 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the HP6632B binding posts?

19 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the HP6632B binding posts design files?

From the PatrickBaus/HP6632B_binding_posts repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the HP6632B binding posts design in my own project?

Yes, under the terms of its CERN-OHL-W-2.0 license, which PatrickBaus chose for the repository.
