8-led output

pbrowne011·pcb·sn74hc595n/8-led-output/8-led-output.kicad_pcb

8-led output PCB layout, top view — open source AVR/Arduino board by pbrowne011

About the 8-led output PCB

8-led output is an open source AVR/Arduino PCB design by pbrowne011, published on GitHub. It is a 2-layer board measuring 120.3 × 83.8 mm, with 19 components from 5 distinct parts.

Its main chip is the Arduino_UNO_R3, from the AVR/Arduino family. Other key parts include the SN74HC595N. By type, the board carries 8 diodes, 8 resistors, 1 IC, 1 module and 1 capacitor.

From the project

Circuit diagrams and PCB files

This is a collection of schematics and PCB designs using KiCad. Each directory contains one or more project directories, where each project has an associated schematic and (possibly) a PCB design file.

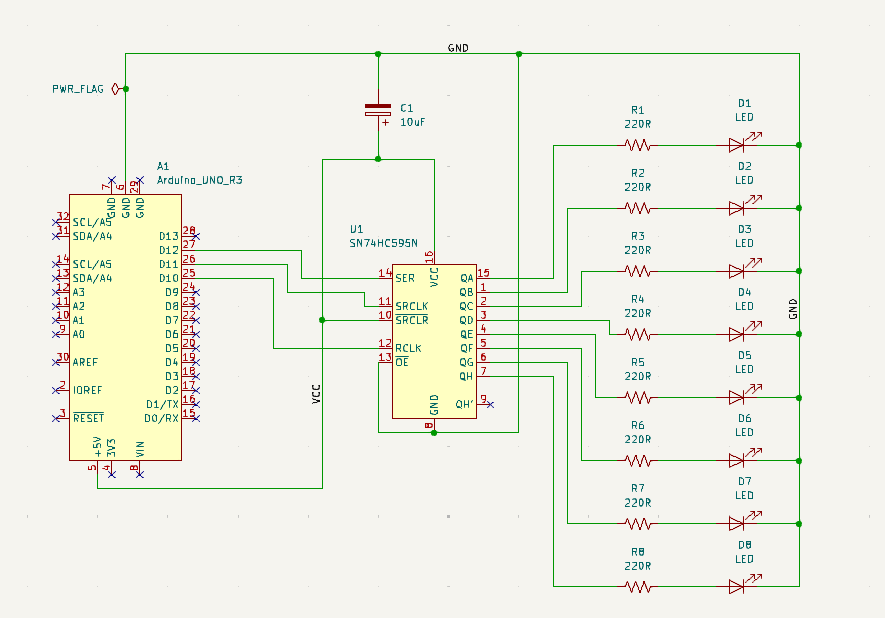

8-led output, from the project README
From the project README

Main components on the 8-led output

SN74HC595NArduino_UNO_R3

8-led output bill of materials (BOM)

19 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
SN74HC595N
U1
1
Arduino_UNO_R3
A1
8
LED
D1, D2, D3, D4, D5, D6, D7, D8
1
10uF
C1
8
220R
R1, R2, R3, R4, R5, R6, R7, R8

8-led output design files

The KiCad project lives in the pbrowne011/pcb repository on GitHub; these links point at the commit this page was built from.

8-led output: common questions

What microcontroller does the 8-led output use?

The 8-led output is built around the Arduino_UNO_R3, from the AVR/Arduino family.

How big is the 8-led output PCB?

The 8-led output measures 120.3 × 83.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 8-led output?

19 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the 8-led output design files?

From the pbrowne011/pcb repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the 8-led output design in my own project?

The repository has no license, so all rights stay with pbrowne011. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the 8-led output without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
