SNES-Userport-Adapter

pdaehne·SNES-Userport-Adapter

SNES-Userport-Adapter PCB layout, top view — open source board by pdaehne
Simulate this board

About the SNES-Userport-Adapter PCB

SNES-Userport-Adapter is an open source PCB design by pdaehne, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 59 × 47 mm, with 6 components from 6 distinct parts.

By type, the board carries 4 connectors, 1 jumper and 1 resistor.

It belongs with the audio and retro computing designs in this gallery.

From the project

KiCad project for a SNES Controller to CBM Userport Adapter

This repository contains the KiCad project and Gerber files for an adapter that allows to connect a SNES controller to the Userport of many Commodore 8-bit computers like the C64, C128, PET, Plus/4 and VIC-20.

This adapter was developed for the game "PETSCII Robots" by The 8-bit Guy. The official adapter is available for purchase from Texelec. When you live in North America, I recommend that you buy it there instead of using this clone. This repository is only for persons living in countries where shipping from North America and taxes are prohibitively expensive.

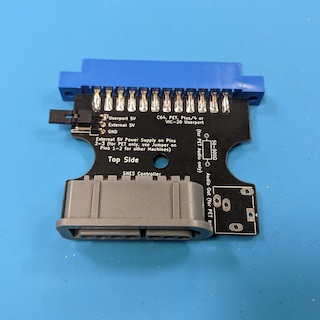

SNES-Userport-Adapter, from the project README
From the project README

SNES-Userport-Adapter bill of materials (BOM)

6 components, 6 distinct parts.

QtyPartRefs
1
Conn_01x03_Pin
J1
1
SNES_Controller_Socket
J2
1
AudioJack3_SwitchTR
J3
1
C64_Userport
J4
1
SolderJumper_2_Open
JP1
1
81Ω
R1

SNES-Userport-Adapter design files

The KiCad project lives in the pdaehne/SNES-Userport-Adapter repository on GitHub; these links point at the commit this page was built from.

SNES-Userport-Adapter: common questions

How big is the SNES-Userport-Adapter PCB?

The SNES-Userport-Adapter measures 59 × 47 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SNES-Userport-Adapter?

6 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the SNES-Userport-Adapter design files?

From the pdaehne/SNES-Userport-Adapter repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the SNES-Userport-Adapter design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
