About the Haori36-MX PCB

Haori36-MX is an open source RP2040/RP2350 PCB design by penk, published on GitHub under the MIT license. It is a 2-layer board measuring 213.7 × 76.3 mm, with 109 components from 4 distinct parts.

Its main chip is the RP2040_Zero, from the RP2040/RP2350 family. By type, the board carries 36 switches, 36 LEDs, 36 diodes and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

36-Key Split Monoblock Ortholinear Keyboard

Another no-frills build with per-key RGB LEDs, based on the Choc version.

Quantity | Item --- | --- 1 | RP2040-Zero 1 | Haori36-MX PCB 36 | MX switches and keycaps 36 | MX Hotswap sockets 36 | 1N4148SOD-123 diodes 36 | SK6812MINI-E RGB LEDs 1 | Haori36-MX tray & plate 8 | M2×3 heat-set threaded inserts 8 | M2×8 countersunk screws

To place an order for the Haori36-MX PCB:

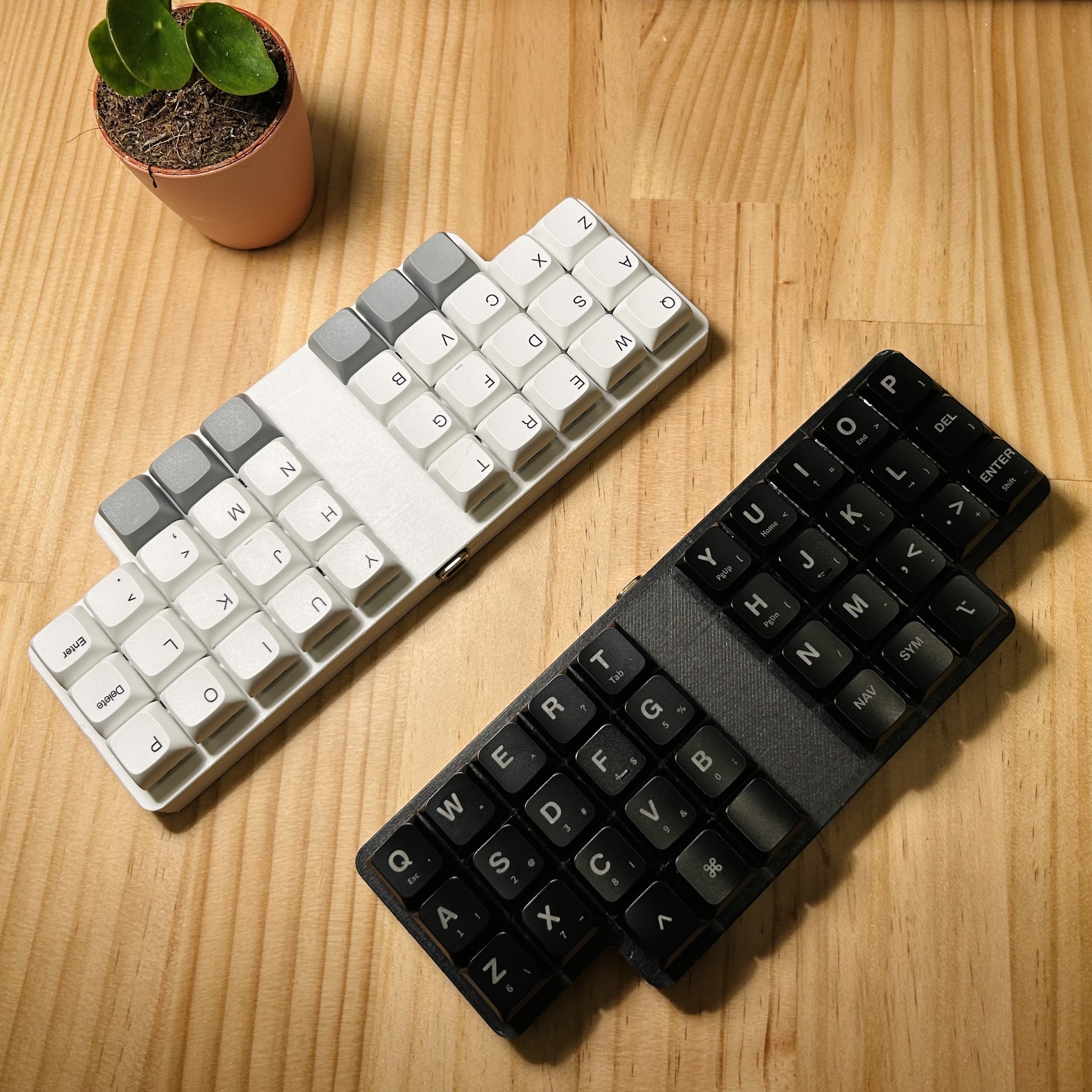

Haori36-MX, from the project README — From the project README

Main components on the Haori36-MX

RP2040_Zero

Haori36-MX bill of materials (BOM)

109 components, 4 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	RP2040_Zero	RP2040_Zero_holes	U1
36	C5156480 Keyswitch	SW_MX_HS_CPG151101S11_1u	S1, S2, S3, S4, S5, S6, S7, S8 +28
36	MX_SK6812MINI-E	LED_MX_6028R	LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +28
36	C2972760 Diode	Diode_SOD-123	D1, D2, D3, D4, D5, D6, D7, D8 +28

Haori36-MX design files

The KiCad project lives in the penk/Haori36-MX repository on GitHub; these links point at the commit this page was built from.

Haori36-MX: common questions

What microcontroller does the Haori36-MX use?

The Haori36-MX is built around the RP2040_Zero, from the RP2040/RP2350 family.

How big is the Haori36-MX PCB?

The Haori36-MX measures 213.7 × 76.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Haori36-MX?

109 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Haori36-MX design files?

From the penk/Haori36-MX repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Haori36-MX design in my own project?

Yes, under the terms of its MIT license, which penk chose for the repository.

Can I test firmware for the Haori36-MX without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
